54" Fit | 13
FINISHING THE MOTOR INSTALLATION
CAUTION: Before continuing installation, confirm that the
power is still turned o at the main circuit breaker or by
removing the circuit fuse. Turning the power o using a wall
switch is not sucient to prevent electrical shock.

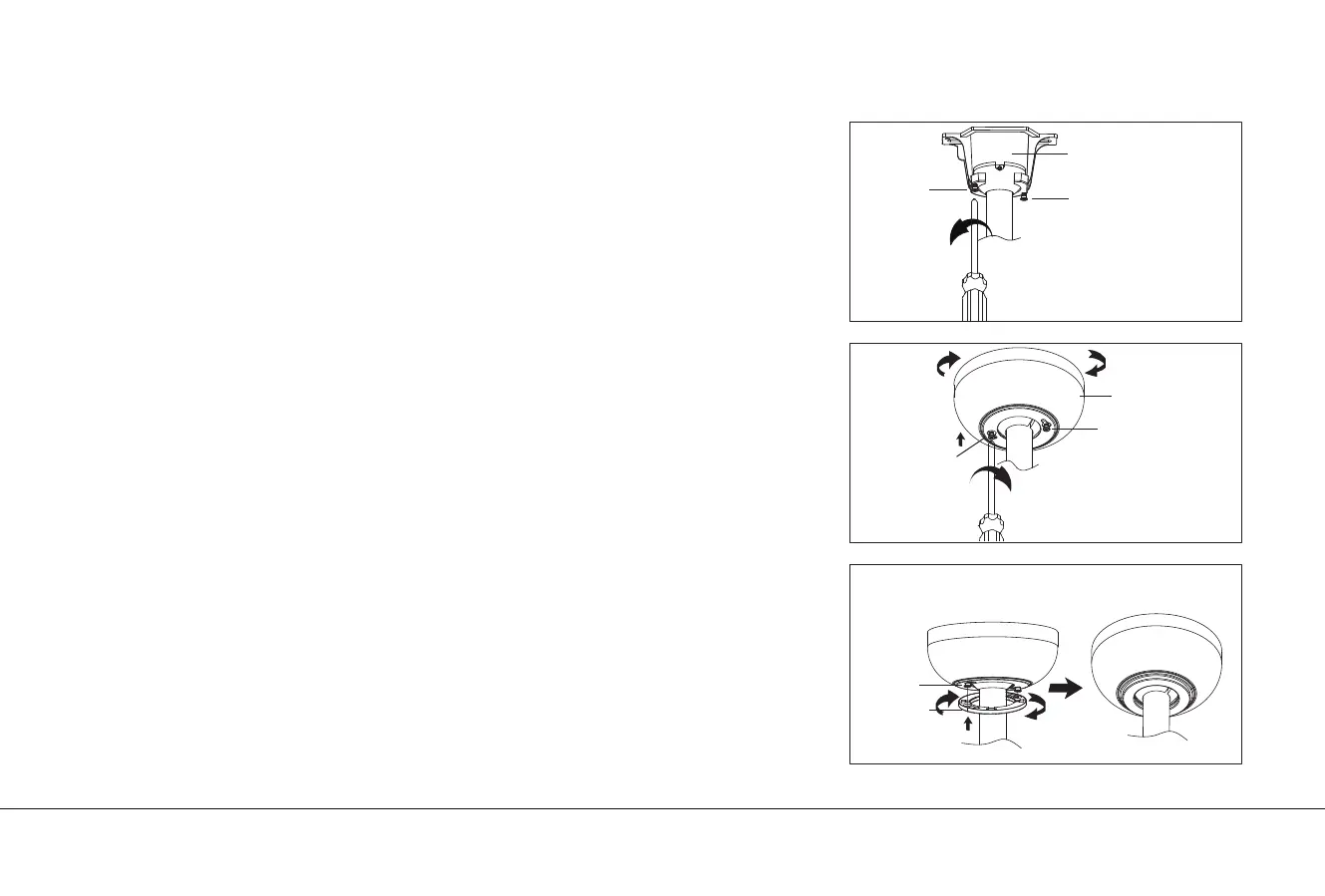

Step 1. Loosen the two shoulder screws at the bottom of the mounting
bracket (do not remove). (Fig. 15)
Step 2. Raise the canopy to the mounting bracket. Place the key hole slots
in the canopy over the shoulder screws in the mounting bracket. Rotate the
canopy (clockwise) until the canopy locks in place against the shoulder
screws (at the narrow ends of the key hole slots). Tighten the two shoulder
screws to secure the canopy in place. (Fig. 16)
WARNING: Make sure the "Check Tab" at the bottom of the ceiling
mounting bracket is properly seated in the "Registration Slot" on the
side of the hanger ball before attaching the canopy to the ceiling
mounting bracket.
Step 3. Raise the canopy trim ring to the canopy. Place the key hole slots in the
canopy trim ring over the heads of the shoulder screws. Rotate the canopy
trim ring (clockwise) until it locks in place against the shoulder screws
(at the narrow ends of the key hole slots). (Fig. 17)
NOTE: Adjust the shoulder screws as necessary until the canopy and canopy
trim ring are snug. (Fig. 17)
Fig. 17
Fig. 15
Mounting Bracket
Shoulder Screw
Shoulder
Screw
Shoulder Screw
Shoulder Screw
Canopy
Fig. 16
Shoulder
Screw
Canopy
Trim Ring
