54" Ample | 9
Standard Ceiling Installation
WARNING: All set screws must be checked, and retightened where necessary,
before installation.
Step 1. Pass the 120-volt supply wires through the center hole in the ceiling mounting bracket as
shown in (Fig. 5).
Step 2. Secure the ceiling mounting bracket to the ceiling outlet box with the screws
and washers provided with your outlet box.
Step 3. Remove the retaining clip and the hitch pin from the hanger ball/downrod assembly.
Remove the hanger ball from the hanger ball/downrod assembly by loosening the set screw
(do not remove) on the hanger ball, unscrewing and removing the cross pin, and unscrewing the
hanger ball from the downrod. (Fig. 6)
Step 4. Loosen the two set screws (do not remove) in the coupling on top of the motor
assembly. (Fig. 7)
Step 5. Carefully feed the electrical lead wires and safety cable from the coupling on top of the
motor assembly up through the downrod. Thread the downrod into the coupling on top of the
motor assembly until the hitch pin holes in the downrod and the hitch pin holes in the coupling
are aligned. (Fig. 7)
Step 6. Carefully insert the hitch pin through the holes in the coupling and the downrod. (Fig. 7)
NOTE: Be careful not to jam the hitch pin against the wiring inside of the downrod.
Insert the retaining clip through the hole near the end of the hitch pin until it snaps into its locked
position. (Fig. 7)
Step 7. Tighten the two set screws in the coupling on top of the motor assembly firmly. (Fig. 7)
HANGING THE FAN (continued)
Cross Pin
Hanger Ball
Set Screw
Downrod
Retaining
Clip
Hitch Pin

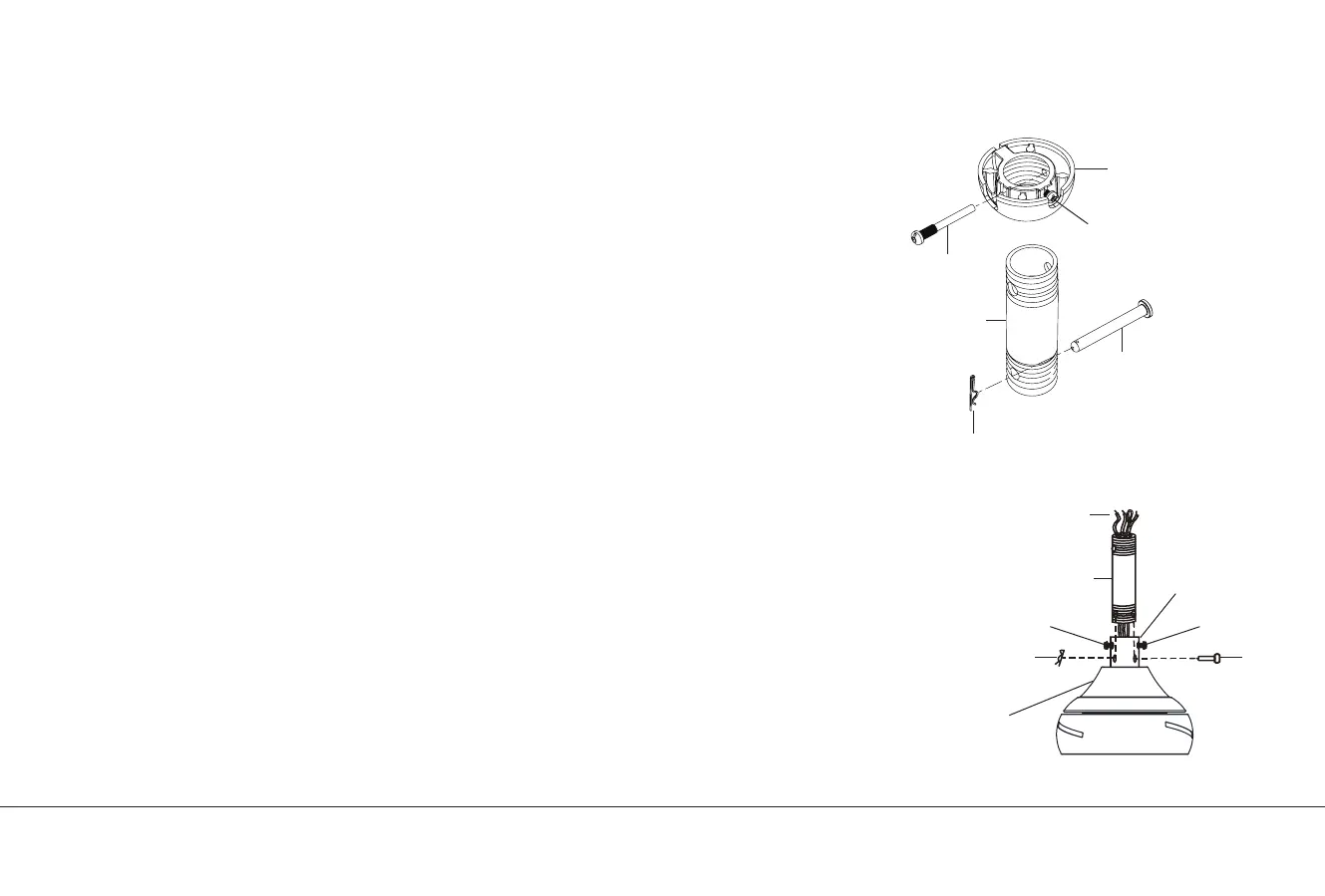

Fig. 6
Fig. 7
Downrod
Supply
Wires
Coupling
Set ScrewSet Screw
Hitch
Pin
Retaining
Clip
Motor
Assembly
