18 | KICHLER.COM
ATTACHING THE FAN BLADES
CAUTION: To reduce the risk of electric shock, disconnect the electri-
cal supply circuit to the fan before installing the fan blades.

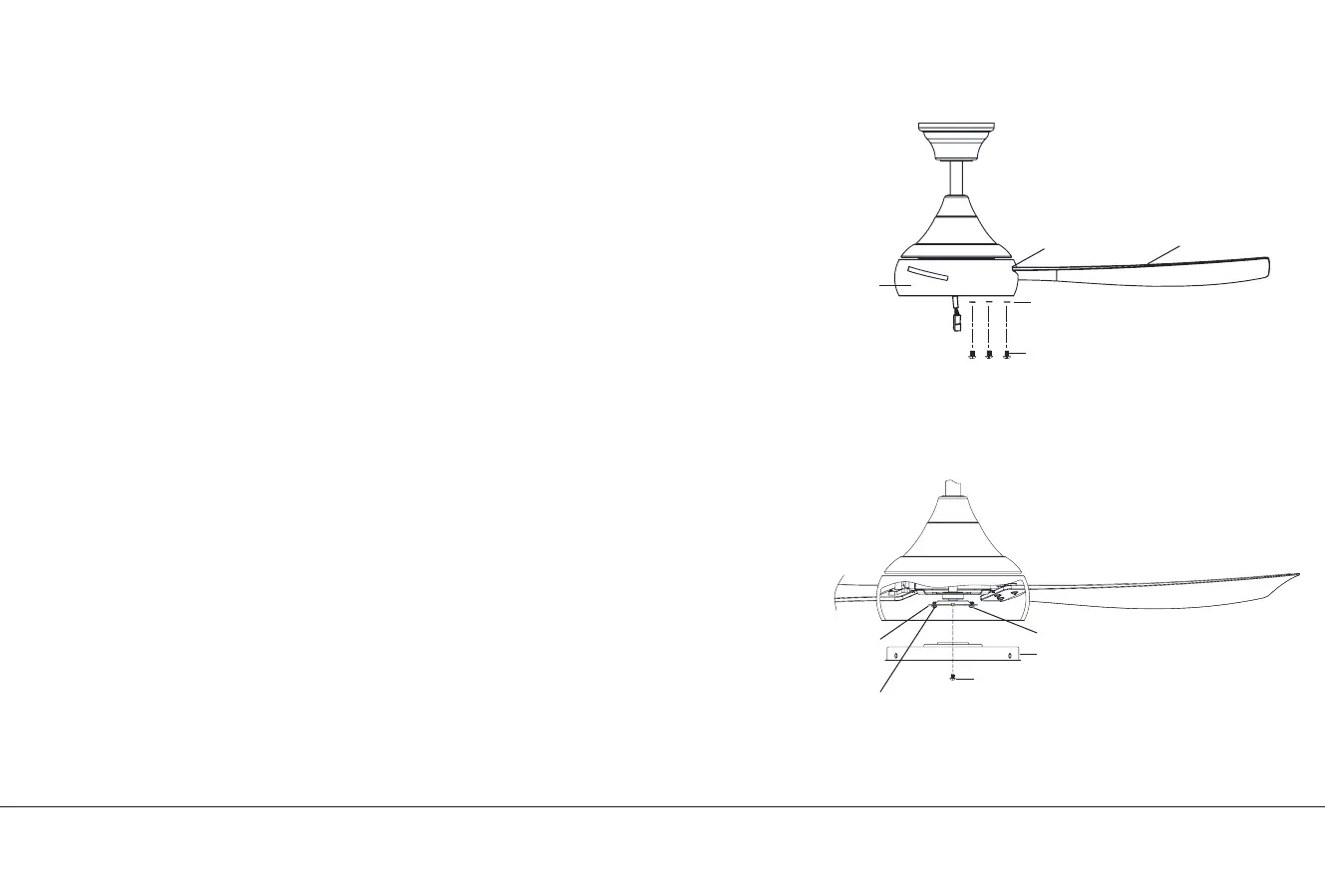

Step 1. Insert fan blade through a slot in the flywheel. (Fig. 18)
Align the holes in the fan blade with the holes in the flywheel and attach the fan
blade to the flywheel with three fiber washers and three blade mounting screws.
Tighten blade mounting screws to secure.
Step 2. Repeat for the remaining fan blades. (Fig. 18)
INSTALLING THE MOUNTING PLATE
CAUTION: To reduce the risk of electric shock, disconnect the
electrical supply circuit to the fan before installing the mounting plate.
Step 1. Loosen two of the mounting ring screws on the mounting ring attached
to the motor shaft, and remove and save the third mounting ring screw. (Fig. 19)
Step 2. Place the key holes in the mounting plate over the 2 mounting ring
screws that were loosened on the mounting ring, and turn mounting plate
(clockwise) until it locks in place against the mounting ring screws at the narrow
sections of the key holes. (Fig. 19)
Replace the third mounting ring screw that was previously removed, and tighten
all 3 mounting ring screws to secure. (Fig. 19)
Flywheel
Slot
Fan Blade
Fiber Washers
Blade Mounting Screws
Fig. 18
Fig. 19
Mounting Ring Screw
(Loosened)
Mounting Plate
Mounting Ring Screw (Removed)
Mounting Ring Screw (Loosened)
Mounting Ring
