54" Ample | 15
ELECTRICAL CONNECTIONS (continued)
WARNING: Check to see that all connections are tight, including ground, and that
no bare wire is visible at the wire connections.
WIRING INSTRUCTIONS
Step 2. Motor to Receiver Electrical Connections: (Fig. 14)
Connect the black wire from the fan to the black wire marked “TO MOTOR L” on the receiver.
Connect the white wire from the fan to the white wire marked “TO MOTOR N” on the receiver.
Connect the blue wire from the fan to the blue wire marked “FOR LIGHT” on the receiver.
Secure all the wire connections with the plastic wire nuts provided.
Step 3. Receiver to Supply Wires Electrical Connections: (Fig. 14)
Connect the black (load) wire from the ceiling outlet box to the black wire marked “AC in L” from
the receiver.
Connect the white (neutral) wire from the ceiling outlet box to the white wire marked “AC in N”
from the receiver.
Secure the wire connections with the plastic wire nuts provided.
Step 4. Connect the ground wire (green or bare copper) from the ceiling outlet box to the
ground wire on the ceiling mounting bracket and the ground wire from the ceiling fan with a
plastic wire nut provided in the parts bag. (Fig. 14)
Step 5. After connecting the wires, turn the wire connecting nuts upward, and push the wiring
into the outlet box. Spread them apart so that the green (ground) and white (neutral) wires are
on one side of the outlet box and the black (hot) wires are on the other side.
NOTE: Fan must be installed at a maximum distance of 30 feet from the hand held transmitter
for optimal signal transmission between the transmitter and the fan’s receiver.

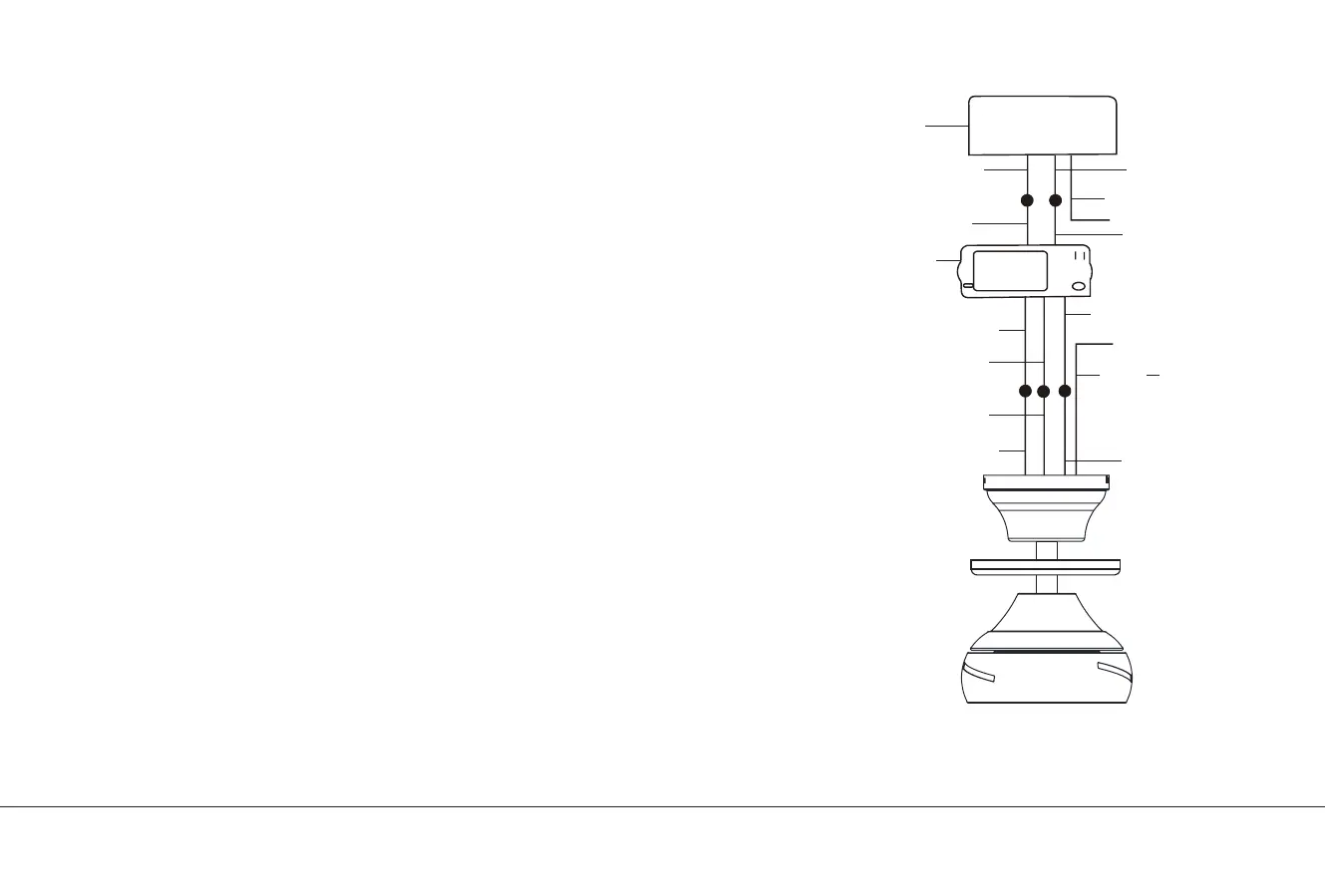

Fig. 14
Outlet Box
Black (Hot) White (Neutral)
Green or Bare
Copper (Ground)
Black (“AC IN L”)
White (“AC IN N”)
Receiver
Black (“TO MOTOR L”)
White (“TO MOTOR N”)
White (Neutral)
Black (MOTOR)
Blue (FOR LIGHT)
Ground
(green)
Blue (FOR LIGHT)
(Connect to ground
wire on hanger
bracket if no house
ground wire exists.)
