54" Ample | 11
Close-To-Ceiling Installation
Step 1. Pass the 120-volt supply wires through the center hole in
the ceiling mounting bracket as shown in Fig. 5.
Step 3. Secure the ceiling mounting bracket to the ceiling outlet
box with the screws and washers provided with your outlet box.
Step 2. Remove the canopy cover from the canopy by pushing
out (Fig. 10A).
Step 4. Remove three of the six screws and lock washers (every
other one) from the top of the motor assembly (Fig. 10B). Retain
screws and lock washers.
Step 5. Place the gasket, then the decorative ring, then the
canopy over the coupling at the top of the motor assembly. Align
the holes in the canopy and gasket with the holes in the top of
the motor assembly and fasten the gasket and the canopy to the
motor assembly using the screws and lock washers that were
removed in Step 4. (Fig. 10B).
Step 6. Tighten the screws securely (Fig. 10B).
WARNING: Failure to completely tighten the three
screws in Step 6 could result in fan loosening and
possibly falling.
Step 7. Hang the fan on the hook of the ceiling mounting bracket.
Be certain that the canopy is fully locked into hook as shown in
Fig. 11. This will allow you to make the electrical connections.
HANGING THE FAN (continued)

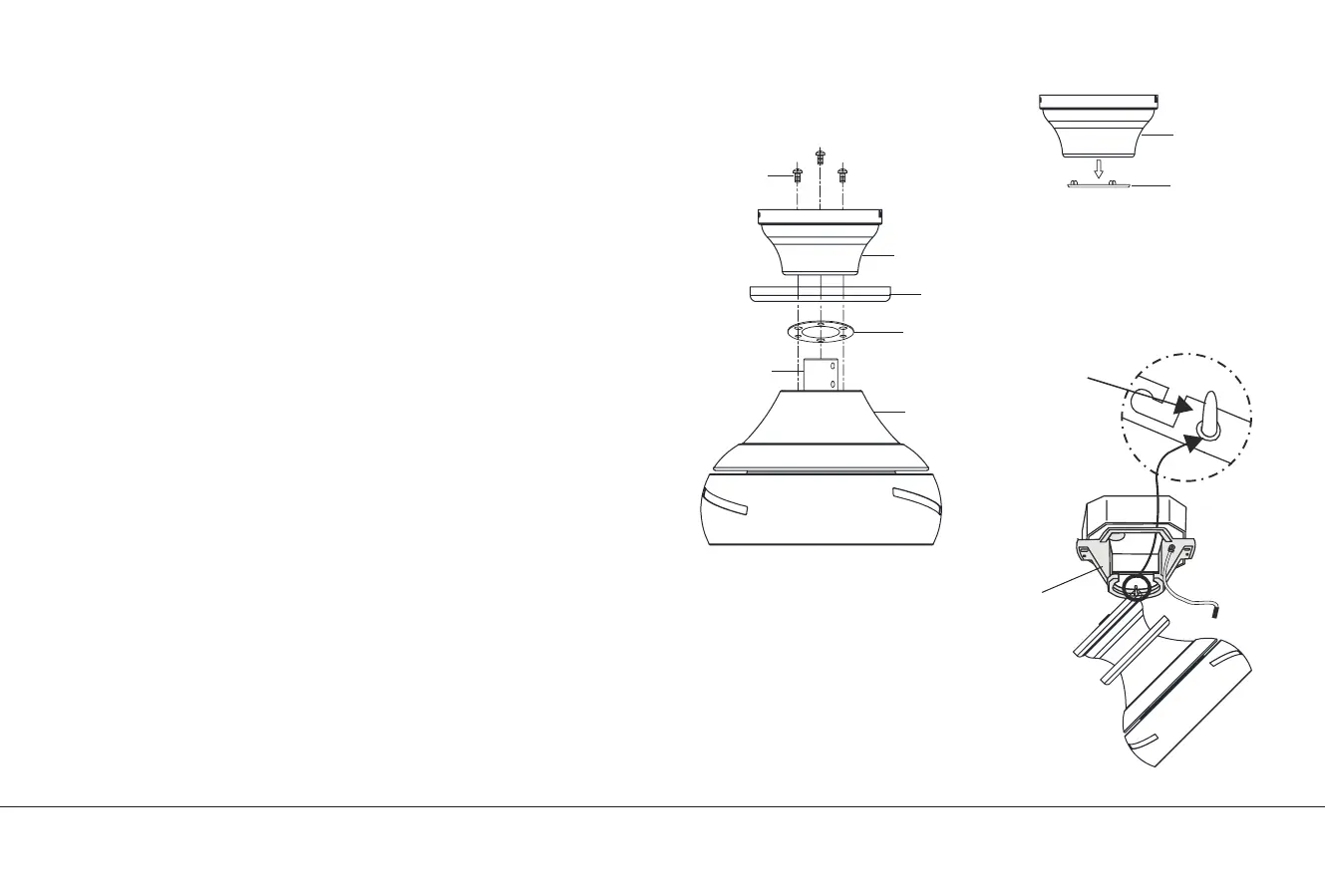

Fig. 10A
Fig. 11
Fig. 10B
Hook
Canopy
Canopy Cover
Motor
Assembly
Canopy
Gasket
Screws and Lock
Washers
(3 of 6 places)
Decorative
Ring
Coupling
Ceiling Mounting Bracket
