Install you AC
*The top rail must be assembled on
the unit for <10000Btu/h models only.

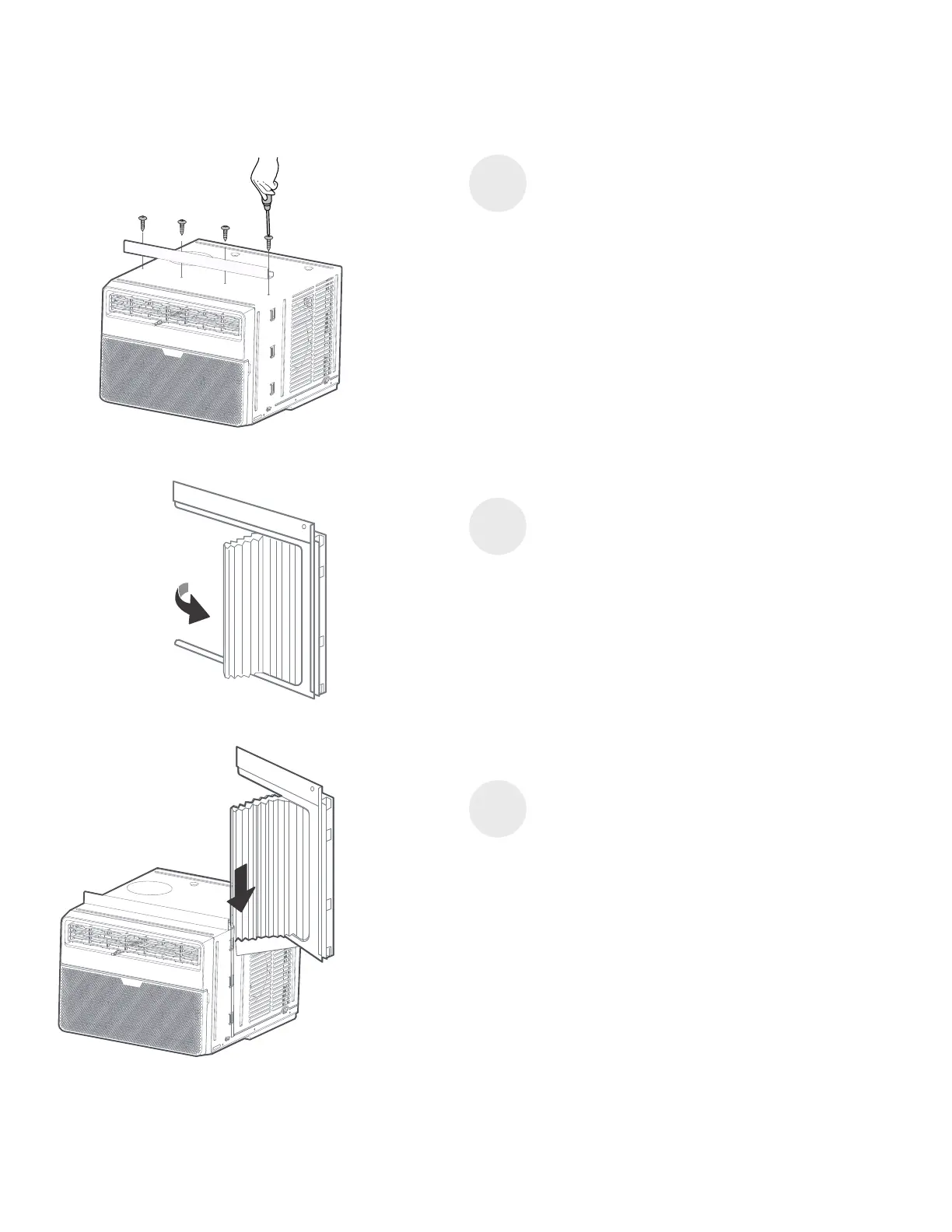

Install the top rail
on the AC
1
RIGHT
Pull the panels
out around
2
Install the
accordion panels
3
Pull the Left&Right Panels
out half way around.
NOTE: Top rail and Sliding Panels at each side are offset to provide the proper pitch to the rear of (5/16 ").
This is necessary for proper condensed water utilization and drainage. If you are not using the Side Panels
for any reason, this pitch to the rear must be maintained.
RIGHT
Install the Top Rail on the AC with 4 Screws
(3/8in) , For safety reasons, all 4 screws MUST be
securely fastened.
Insert the card slot on the side of the
AC, pay attention to the left and right
differences of the Panel.
