521 East 3

rd

Street Mt. Vernon, NY 10553 • www.keydigital.com

Rev 1.1 – Dec, 2022

17

o Note: After updating firmware, all unit settings are restored to defaults except IP information.

Please collect all customized settings info before loading firmware.

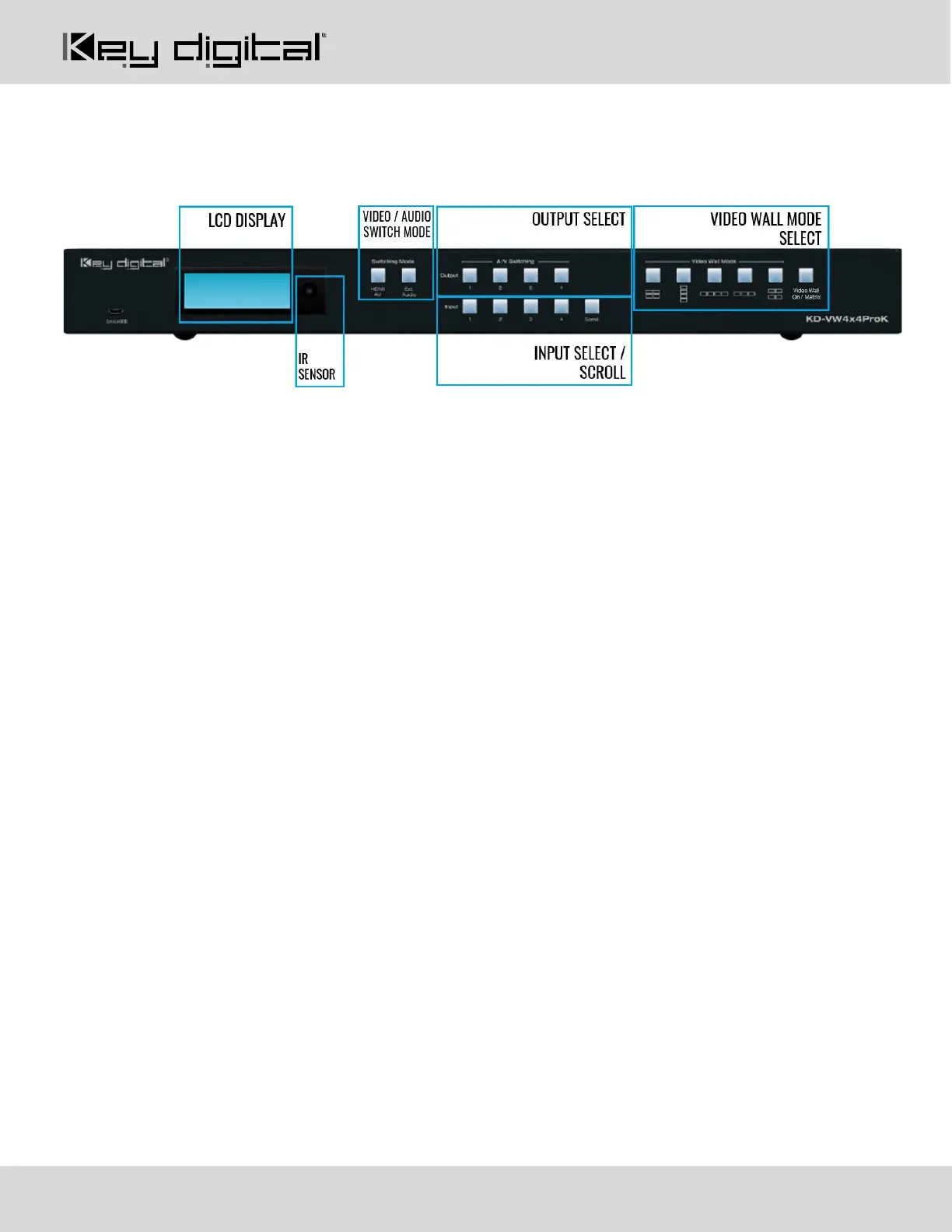

Front Panel Control & LCD

• To enable video wall in desired mode:

1. Video Wall On / Matrix button (button illuminates indicating VW Mode)

2. Video Wall Mode selection button

Notes: Source 1 is the default video wall source. If the Video Wall On / Matrix button is

already illuminated, you may skip step 1 to choose another video wall mode.

• To select video wall source:

1. Video Wall On / Matrix button (button illuminates indicating VW Mode)

2a. Input select button to choose discrete input.

2b. Input Scroll button to advance to next input

Notes: With HDMI AV switching mode button illuminated, only the HDMI ports route to the

selected video wall input. With Ext. Audio button illuminated, only external audio output 1 routes

to the selected video wall input.

Input scroll button only works while in Video Wall mode.

If the Video Wall On / Matrix button is already illuminated, you may skip step 1.

• Matrix Routing HDMI AV only:

1. HDMI AV button (button illuminates to indicate selection)

2. Output button

3. Input button

• Matrix Routing External Audio only:

1. Ext. Audio button (button illuminates to indicate selection)

2. Output button

3. Input button

Factory Default Reset via Front Buttons: Simultaneously press & hold the HDMI AV + Video Wall On / Matrix

buttons for 10 seconds to reset KD-VW4x4ProK to its factory settings:

• All outputs select source 1

• EDID setting 5 is applied at all HDMI inputs
