521 East 3
rd
Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.1 – Dec, 2022
15
IR Sensor: Mount IR an IR emitter from control system or IR connection block over the optical IR Sensor on the
face of the unit. Refer to IR Remote Control section for correct button press sequence

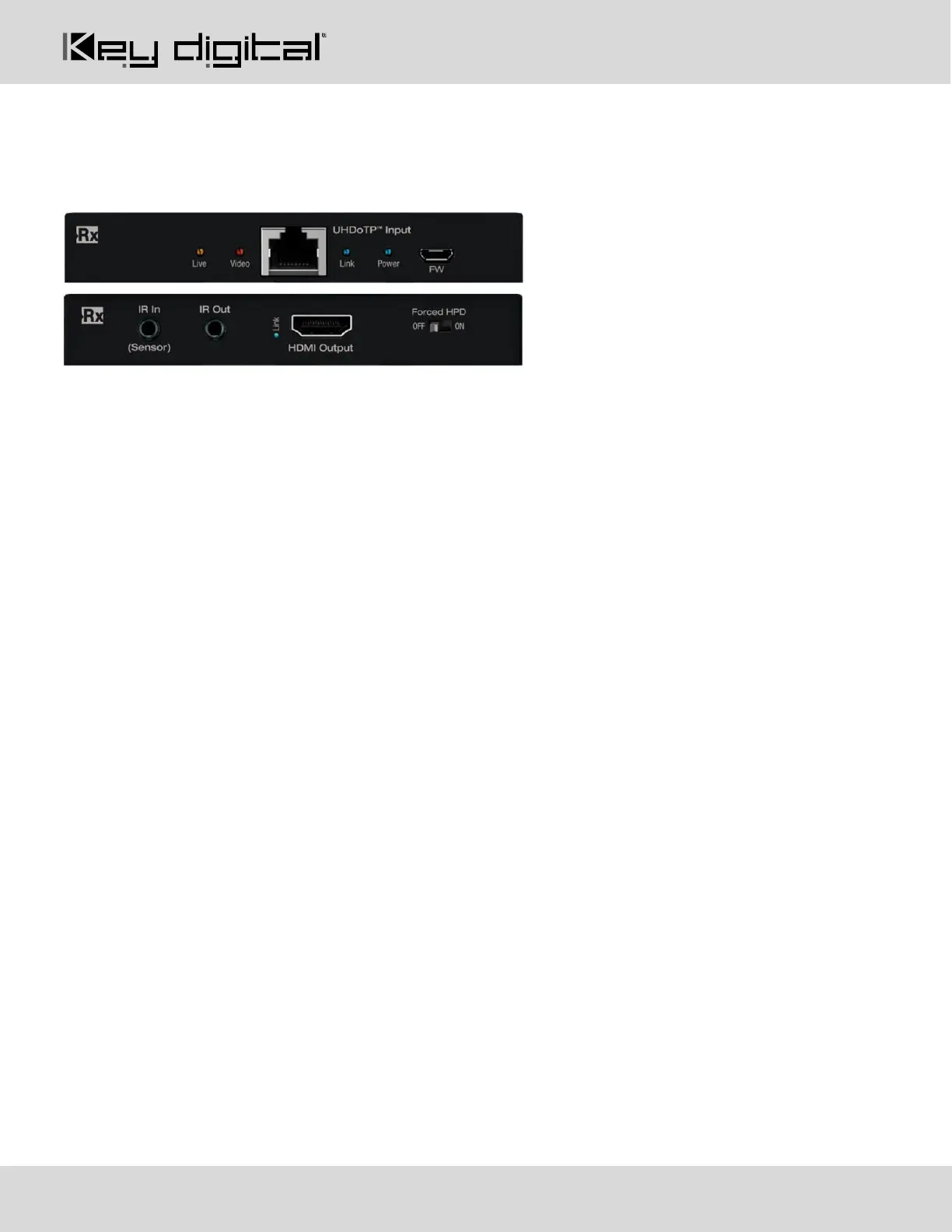

KD-EXMLVRx Connections, LEDs, and Slide-Switches
HDMI Output: Using an HDMI cable, connect your HDMI displays.
• Supports up to UHD/4K @ 30fps [4:4:4], 8 bit color, 10.2Gbps maximum bandwidth
• Compliant with HDMI 2.0, HDCP 2.x and previous
• Supports surround audio formats including Dolby ®, DTS™ (formats up to 5.1 / 6.1)
• Does not support HDR, CEC, ARC, or 3D
• Output resolution of 4K @ 30fps, 1080p @ 60fps, or 720p @ 60fps may be selected per output using
KDMS Pro software or by sending command via TCP/IP or RS-232
• Source selection and down-convert settings are mirrored on UHDoTP and HDMI output connections of
the same port number.
• For Display Port monitors use active HDMI to DP converter
UHDoTP Input: Connect a CAT5e/6 cable to the Main unit’s UHDoTP Output port using 568-B termination.
• Supports up to UHD/4K @ 30fps [4:4:4], 8 bit color, 10.2Gbps maximum bandwidth
• Compliant with HDMI 2.0, HDCP 2.x and previous
• Distance performance:
o UHD/4K: Up to 115ft (35m) using CAT5e/6, up to 40m (131ft) using CAT6A STP
o 1080p: UP to 164 ft (50m) using CAT5e/6, up to 60m (197ft) using CAT6A STP
• Supports Dolby®, DTS™ (5.1 / 6.1 formats max)
• Does not support HDR, CEC, ARC, or 3D
• Output resolution of 4K @ 30fps, 1080p @ 60 fps, or 720p @ 60fps may be selected per output using
KDMS Pro software or by sending command via TCP/IP or RS-232
• Provides 12V Power over CAT to KD-EXMLVRx
• Important Notes:
o Minimum CAT5e/6 cable length required: 17ft (5m)
o Not compatible with HDBaseT or third-party Rx. Connecting to incompatible Rx may cause
damage and result in void of warranty.
IR Out:
• Connect the included IR emitter to control your display / projector.
