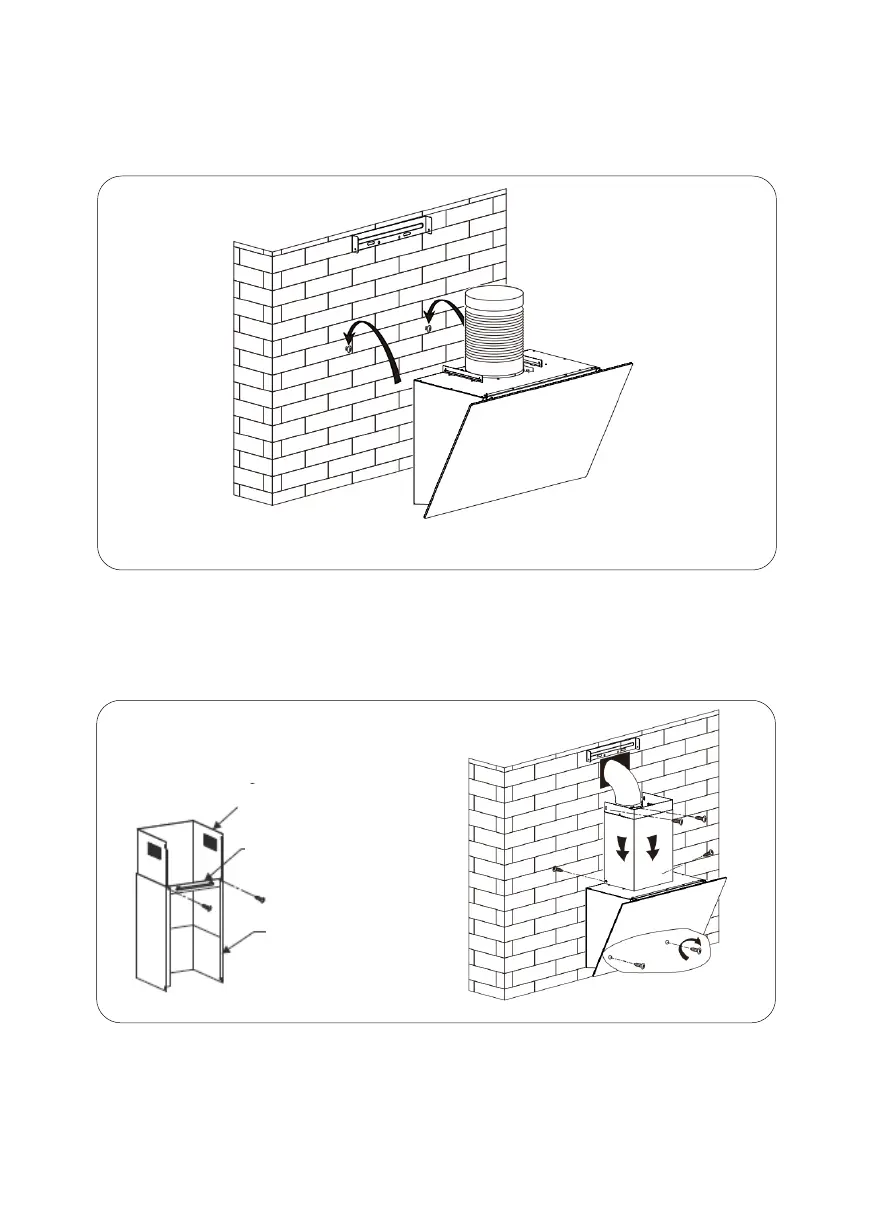

Pic. 5
Pic. 6
Inside chimney
Outside chimney
Outside chimney bracket
5. Put the hood hang on the wall in the fixed position, adjusting the cooker hood position, fix the cooker
hood with 2pcs ST4*30mm safety screws. Note: The two safety vents are positioned on the back housing,
with a diameter of 6mm. See pic 4&6.
Pic. 4
6. Install the outside chimney bracket onto the outside chimney with 2 pcs ST4*8mm screws, make sure the
inside chimney can be flexed freely. See Pic 5. And then put the chimney to the hood, use 2 pcs ST4*8mm
screws fix the outside chimney to the hood body and the use 2pcs ST4*40mm fix it on the wall. Lay the
expansion pipe to the outside at the same time. See pic 6.
