CHAPTER 2. INSTALLATION (VENT OUTSIDE)

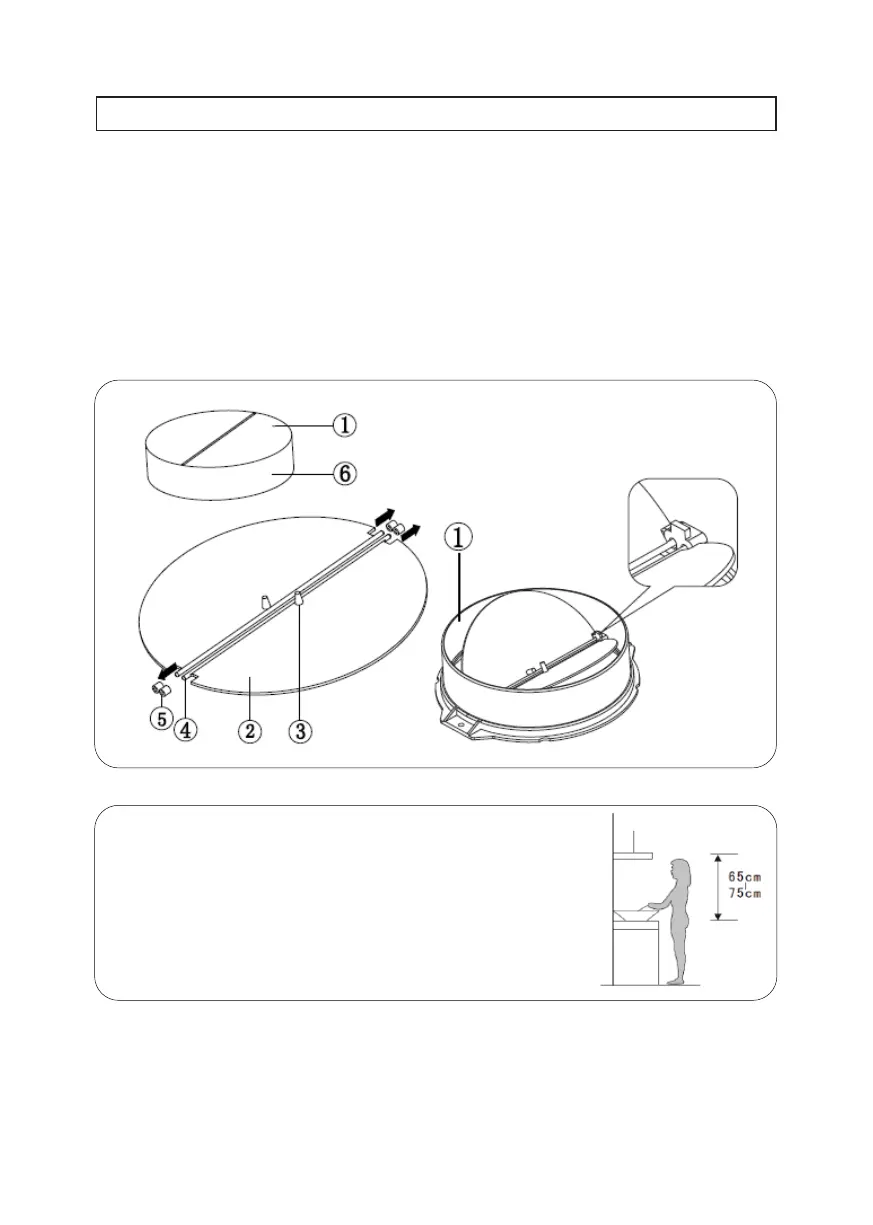

MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body.The
images only show an example of how to mount the V-flap, because the outlet may vary according to different
models and configurations. To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6
• the pin 3 should be top oriented;
• the axis 4 should be inserted into the holes 5 on the body;
• repeat all the operations for the 2nd half-part
1. The cooker hood should be placed at a distance of 65-75cm from
the cooking surface for the best effect.
