25

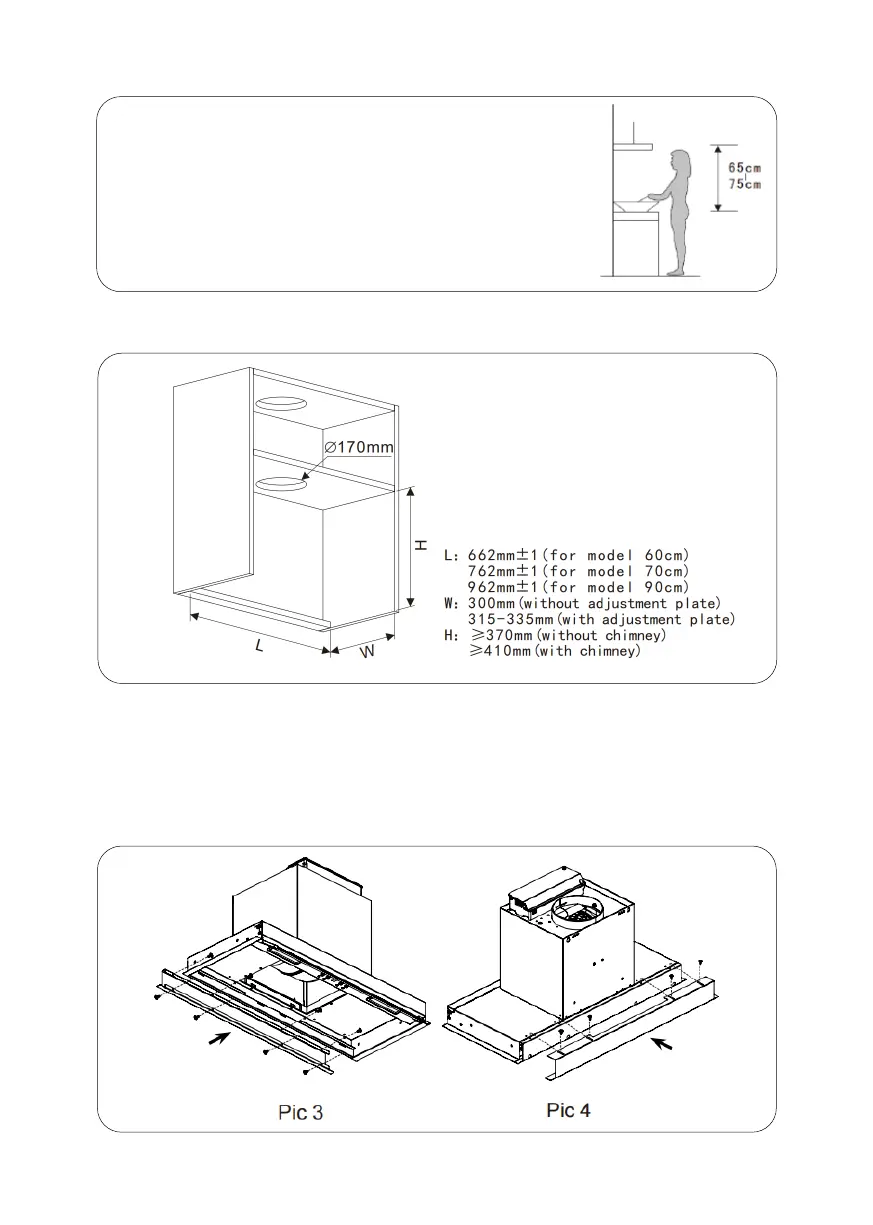

2. The cooker hood should be placed at a distance of 65~75cm above
the cooking plane for best effect. See pic 1..
3.Drill a hole in the cabinet, as shown in pic 2 and reserve space for the power socket.
4. Open the decorative glass and remove the filter.
5. Fix the widen backing plate onto the back of the cooker hood with 8pcs ST4*8mm screws, See Pic 3 (It
is suitable for the situation which the opening depth W is 315mm) .
6. Fix the widen adjustment plate onto the back of the cooker hood with 4pcs ST4*8mm screws,and take
care to adjust the desired width. See Pic 4(It is suitable for the situation which the opening depth W is
between 315mm and 335mm) .
Pic. 2
