Connect to the Range
IMPORTANT: Use this method for new branch-circuit installations (1996 NEC), mobile
homes, recreational vehicles, or in an area where local codes prohibit grounding through
the neutral.
1. Feed the electric cable wires through the flexible metal conduit.
NOTE: Allow enough slack to easily attach the wires to the terminal block.
2. Remove the access panel located on the bottom right-hand side of the back panel to
expose the electrical terminal block.

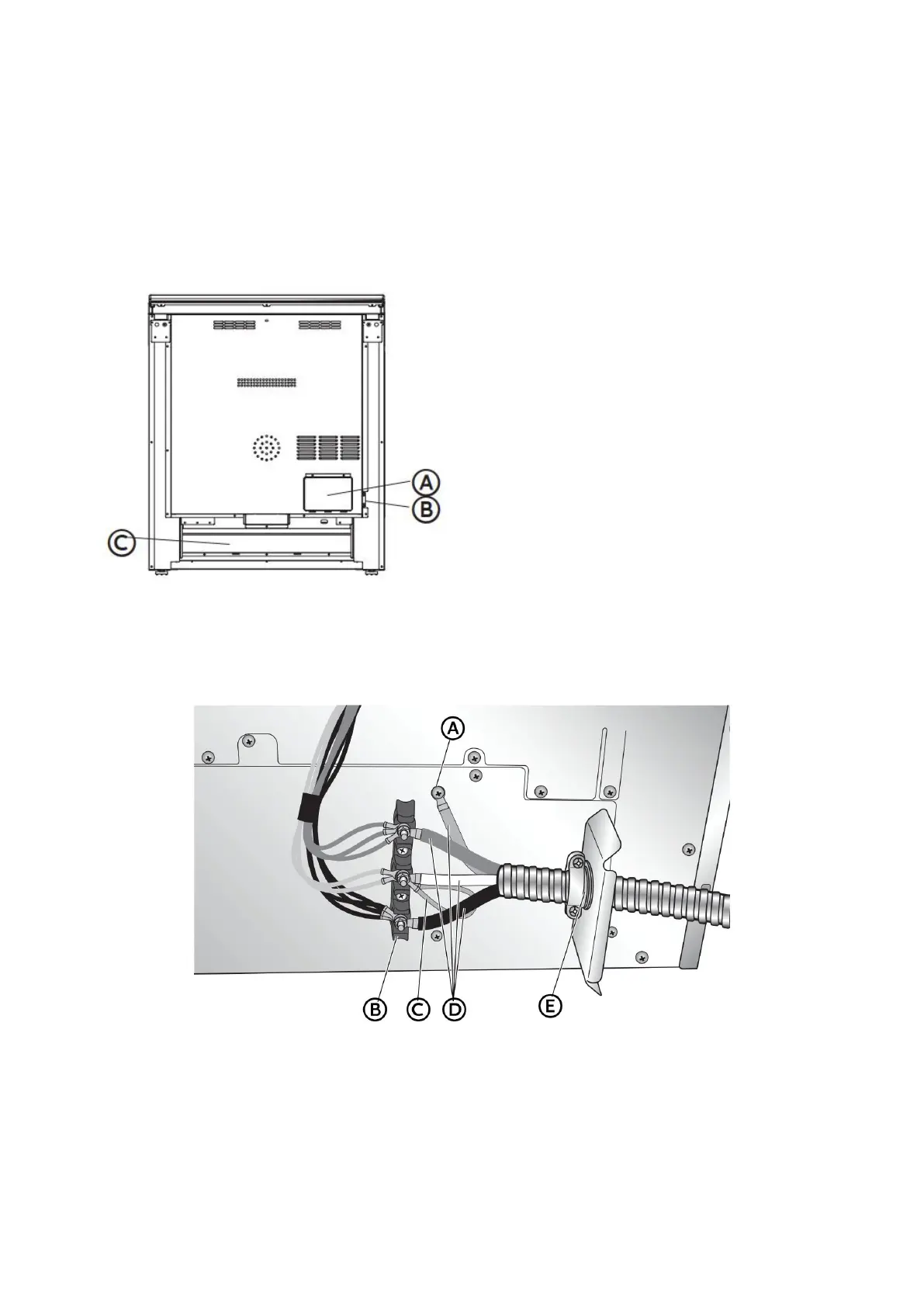

A Electrical Access Panel
B Conduit Opening
C Recessed Area
3. Install a UL listed strain relief to the flexible metal conduit opening in the support bracket,
and fully tighten the strain relief nut.
4. Feed the flexible metal conduit through the strain relief. Allow enough slack to easily
attach the wiring to the terminal block.
A Ground Screw
B Terminal Block
C Jumper Wire
D Electrical Cable Wires
E UL Listed Strain Relief
5. Remove the green jumper wire from under the ground screw and replace with the green
wire from the flexible metal conduit and tighten ground screw.
