4-WIRE CONNECTION (UNGROUNDED NEUTRAL)
Connect to the House Electrical Supply - U.S.A. Only
IMPORTANT: Use the 4-wire cable from home power supply in the U.S. where local codes
do not allow grounding through neutral, new branch circuit installations (l99e NEC), mobile
homes and recreational vehicles, new construction and in Canada.

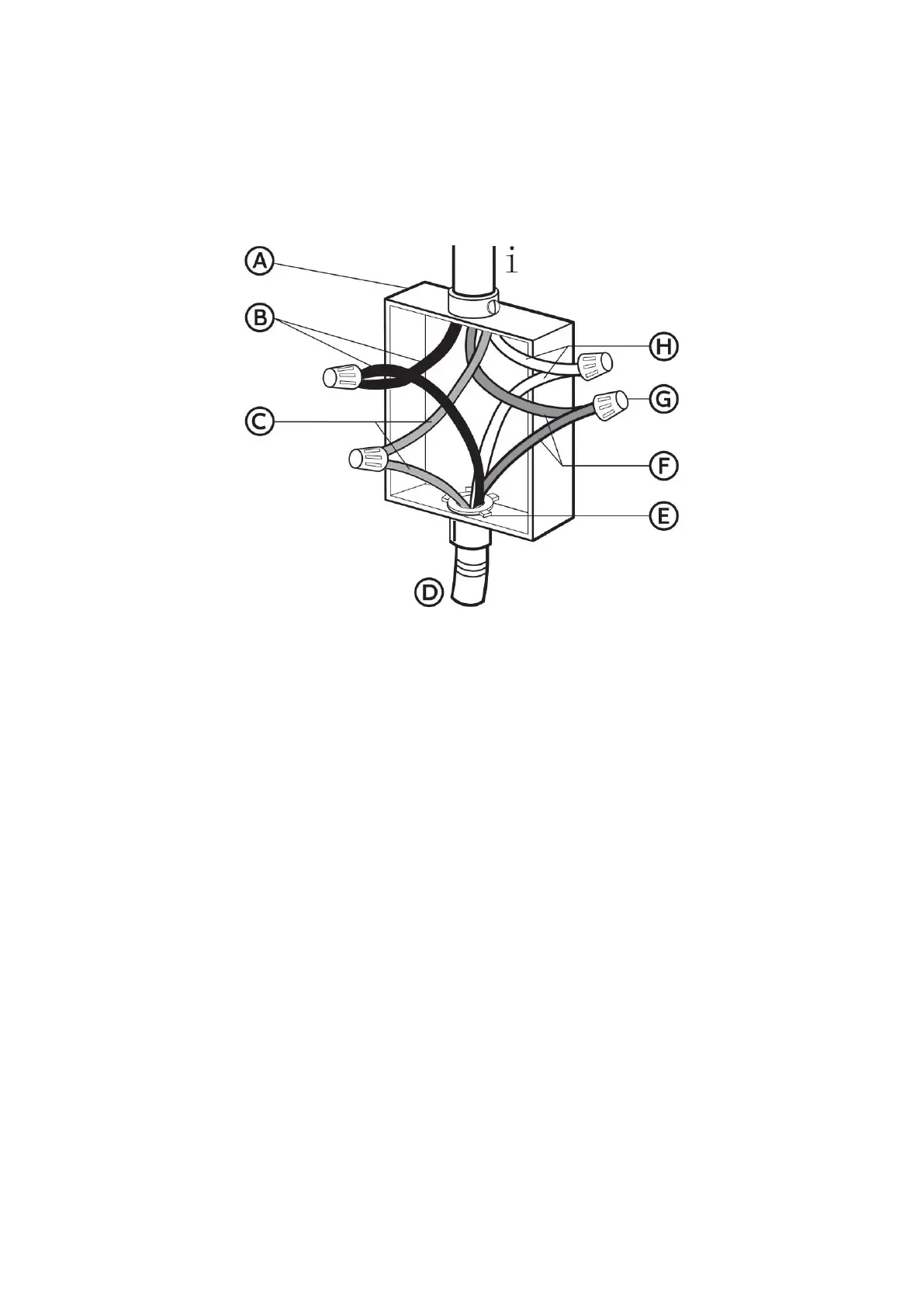

Ungrounded Neutral
A Junction Box
B Black Wires
C Red Wires
D Cable from Range
E UL listed or CSA Approved
Conduit Connector
F Ground (Green or Bare)
Wires
G UL Listed Wire Connector
H Neutral (White) Wires
I House Electrical Supply
1. Connect the 2 black wires B together using a UL listed wire connector.
2. Connect the 2 red wires C together using a UL listed wire connector.
3. Connect the 2 neutral (white) wires H together using a UL listed wire connector.
4. Connect the ground (green or bare) wire F from the range cable to the ground (green or
bare) wire (in the junction box) using a UL listed wire connector.
5. Install junction box cover.
