A Electrical Access Panel
G Conduit Opening
C Recessed Area
3. Install a UL listed strain relief (not provided) to the conduit opening in the bracket, and
then completely tighten the strain relief nut.
4. Thread the end of the conduit through the strain relief.
NOTE: Allow enough slack to connect the wires to the terminal block.

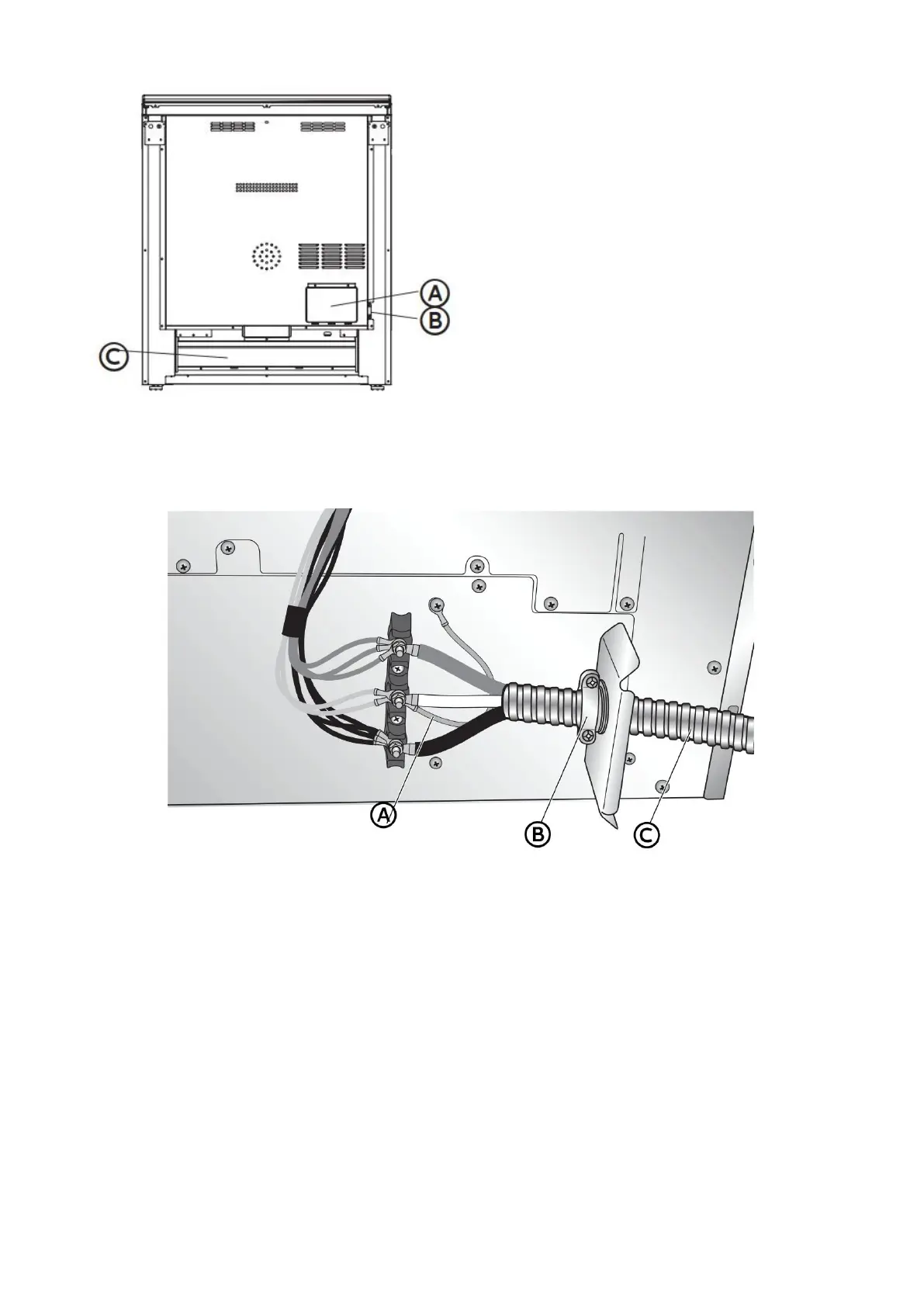

A Jumper Wire B UL Listed Strain Relief C Conduit
5. Using a 5/16" nut driver and one of the 10-32 hex nuts, connect the ground (green or bare)
wire from the exible metal conduit to the center terminal block post along with the green
jumper wire from the range.
6. Using 10-32 hex nuts, connect the red and black wires from the power cord to the outer
posts of the terminal block with the corresponding red and black wires from the range.
7. Tighten the hex nuts completely, and then verify the connection.
8. Position the lower part of the strain relief under the flexible metal conduit and tighten
the strain relief screws.
NOTE: Before tightening, make sure the strain relief is positioned over the flexible
metal conduit and NOT the wires.
9. Replace the electrical access panel.
10. Tuck excess conduit into the recessed area of the back panel.
