Connect to the House Electrical Supply
IMPORTANT: Use the 3-wire cable from home power supply where local codes permit a
3-wire connection.
1. Disconnect power.

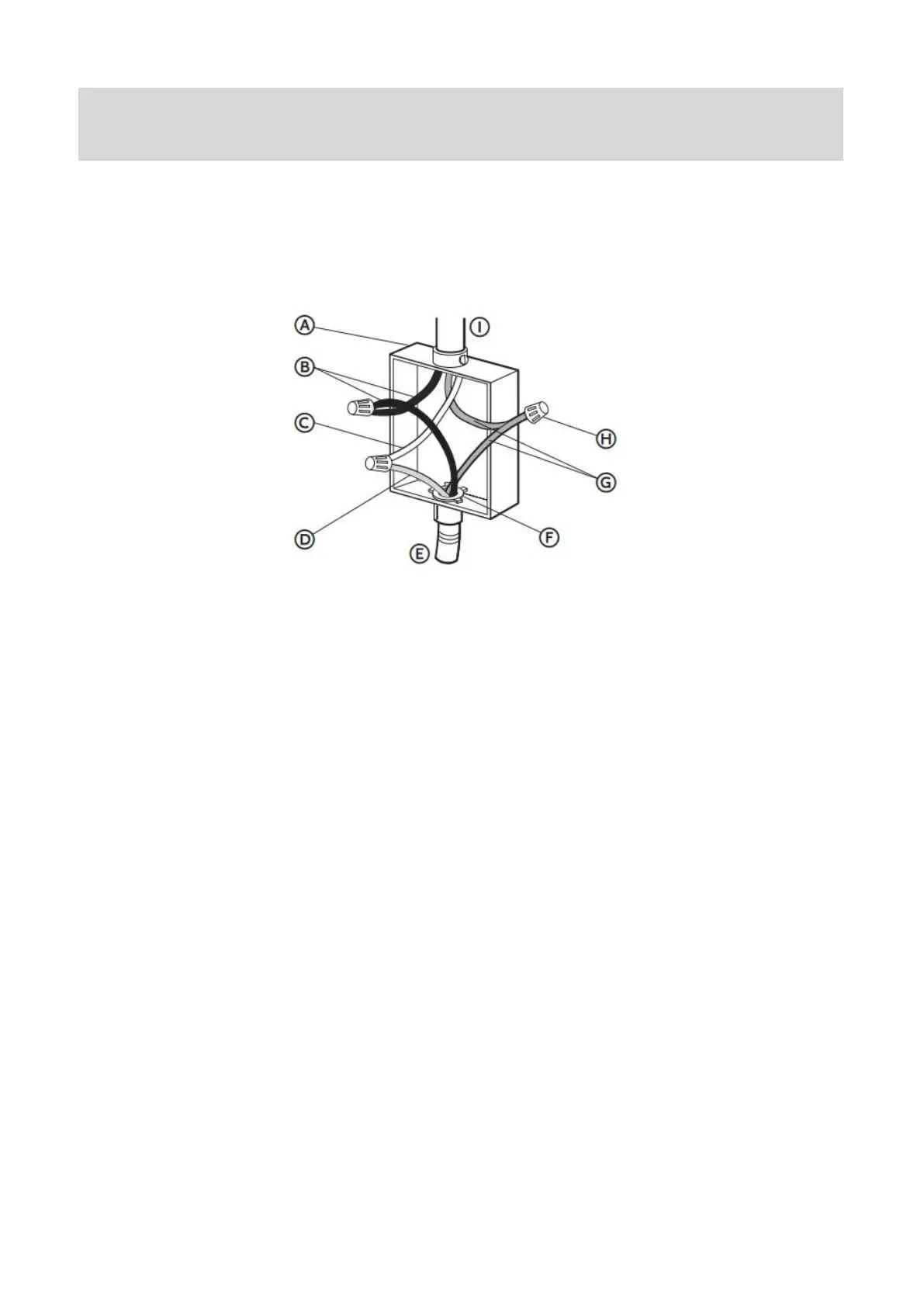

Grounded Neutral
A Junction Box
B Black Wires
C Neutral (White) Wire
D Ground (Green or Bare)
Wire
E Cable from Range
F UL Listed Conduit
Connector
G Red Wires
H UL Listed Wire Connectors
I House Electrical Supply
2. Connect the 2 black wires B together using a UL listed wire connector.
3. Connect the neutral (white) wire C and the ground (green or bare) wire D (of the range
cable) using a UL listed wire connector.
4. Connect the 2 red wires G together using a UL listed wire connector.
5. Install junction box cover.
Connect to the Range
IMPORTANT: Use this method only if local codes permit connecting chassis ground
conductor to neutral wire of power supply cord.
1. Feed the electric cable wires through the flexible metal conduit.
NOTE: Allow enough slack to easily attach the wires to the terminal block.
2. Remove the access panel located on the bottom right-hand side of the back panel to
uncover the electrical terminal block.
Use grounding terminal or lead to ground unit.
Connect neutral terminal or lead to branch circuit neutral in usual manner.
Failure to do so could result in death, fire or electric shock.
