2. Place the bracket so that the back of the bracket is against the rear wall and the side
edge of the bracket is 3/8" to 1/2" from the adjacent cabinet.
NOTE: If there is no adjacent cabinet, place the bracket so that the edge of the bracket
is 3/8" to 1/2" in from the range side panel. If the countertop overhangs the cabinet,
offset the bracket from the cabinet by the depth of the overhang plus an additional
3/8" to 1/2".

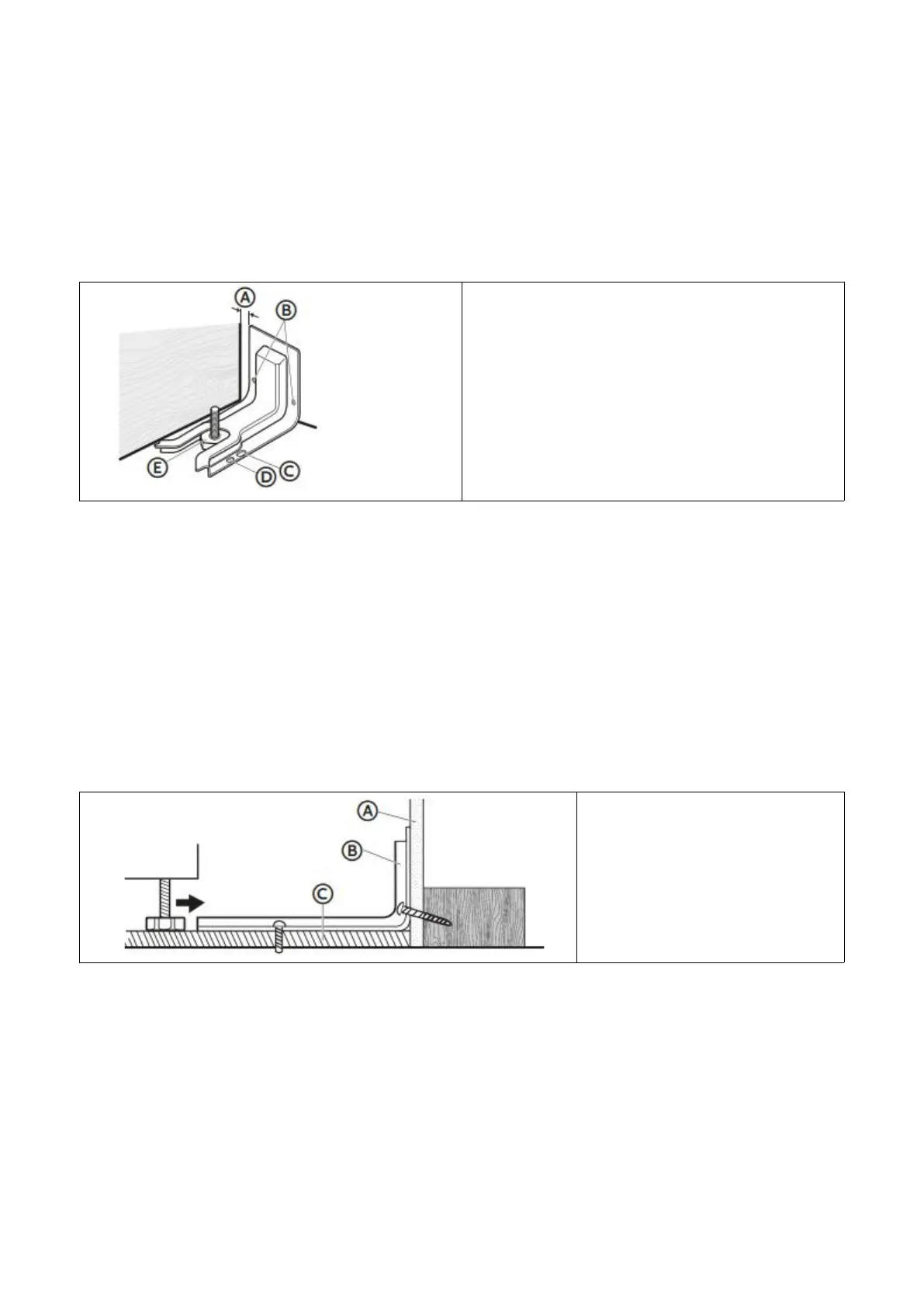

3. Using the anti-tip bracket as a template, mark the two holes for either a Floor Wood,
Floor Concrete, or Wall installation, as shown.
A Distance from Adjacent Cabinet (3/8" to
1/2" [0.95 cm to 1.27 cm])
B Wall Holes
C Concrete Floor Holes
D Wood Floor Holes
E Rear Range Foot
4. Drill two pilot holes where marked. Follow the instructions specific to your construction.
NOTE: A nail or awl may be used to create a pilot hole, if a drill is not available. For
concrete construction 1/4" x 1 ½" Lag Bolts and 1/2" O.D. Sleeve Anchors are required.
Wood
• Floor - Drill a 1/8" pilot hole, as shown.
NOTE: Contact a qualified floor covering installer for the best procedure for drilling
mounting holes through your type of floor covering.
• Wall - Drill an angled 1/8" pilot hole, as shown.
Concrete
• Drill the size hole recommended for the anchors into the concrete at the center of
the holes identified as Floor Concrete or Wall.
A Wall
B Anti-tip Bracket
C Floor
