16

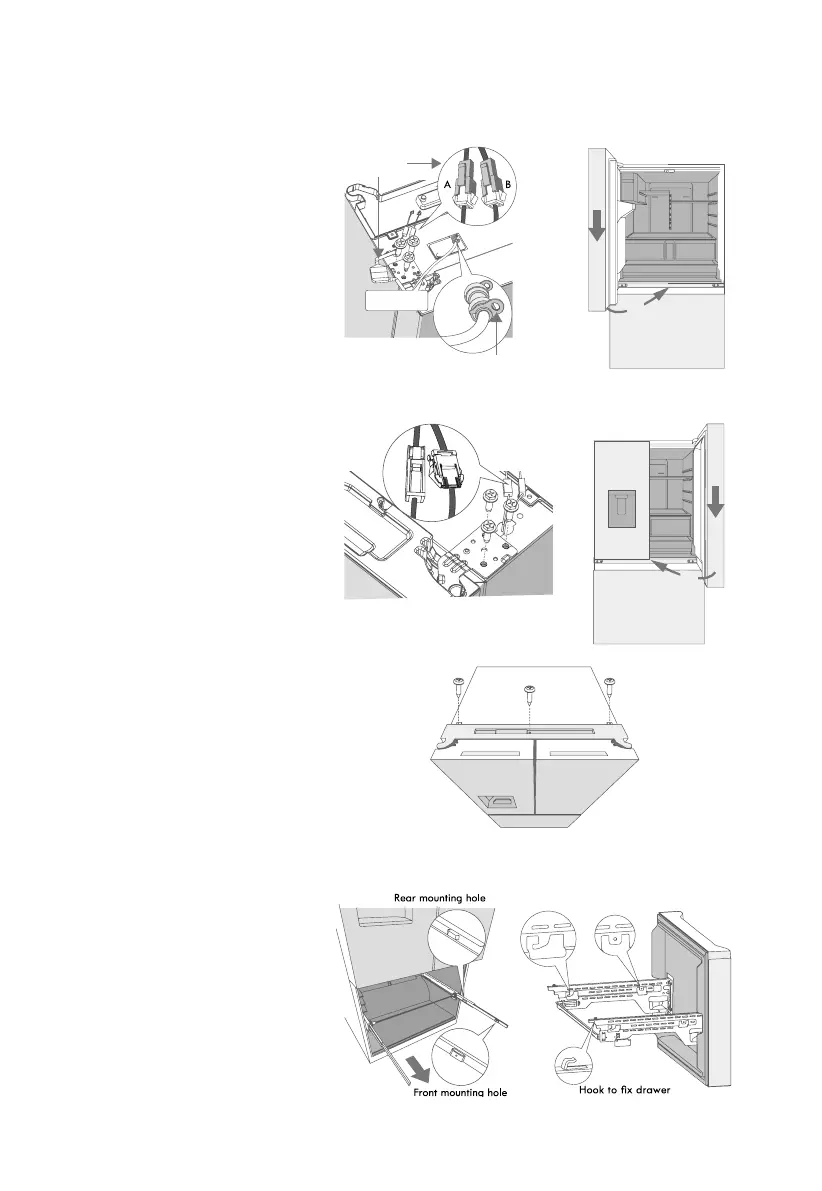

2. A. Install the left door at the 90°
position, align the door closer shaft
with the middle hinge shaft, then
close the door.
B. Install the left upper hinge and
secure it with the 3 screws.
C. Insert the door water line into the
water valve, then install the blue
retaining clip on to the quick release
check valve. Reconnect the 3 harness
quick connectors.
D. Cover the hinge cover.
NOTE: Make sure all 3 harness quick
connectors are connected and water
line is installed in place. No need to
distinguish between connector A and
B when installed.
Blue retaining clip
Harness quick
connector
Water line
90°
3. Install the right door at the 90°
position, align the door closer shaft
with the middle hinge shaft, then
close the door. Reconnect the 2
harness quick connectors. Refer to
step 2.
90°
4. Position hinge cover in place, lightly
tap hinge cover to engage snaps on
left and right. Replace all 3 screws.
• FREEZER DOOR ASSEMBLY:
1. Fully open the rails.
Gently pick up the freezer door and
insert the hooks of supporters into
the holes of rails.
Back hook
Front hook
