9
Operation

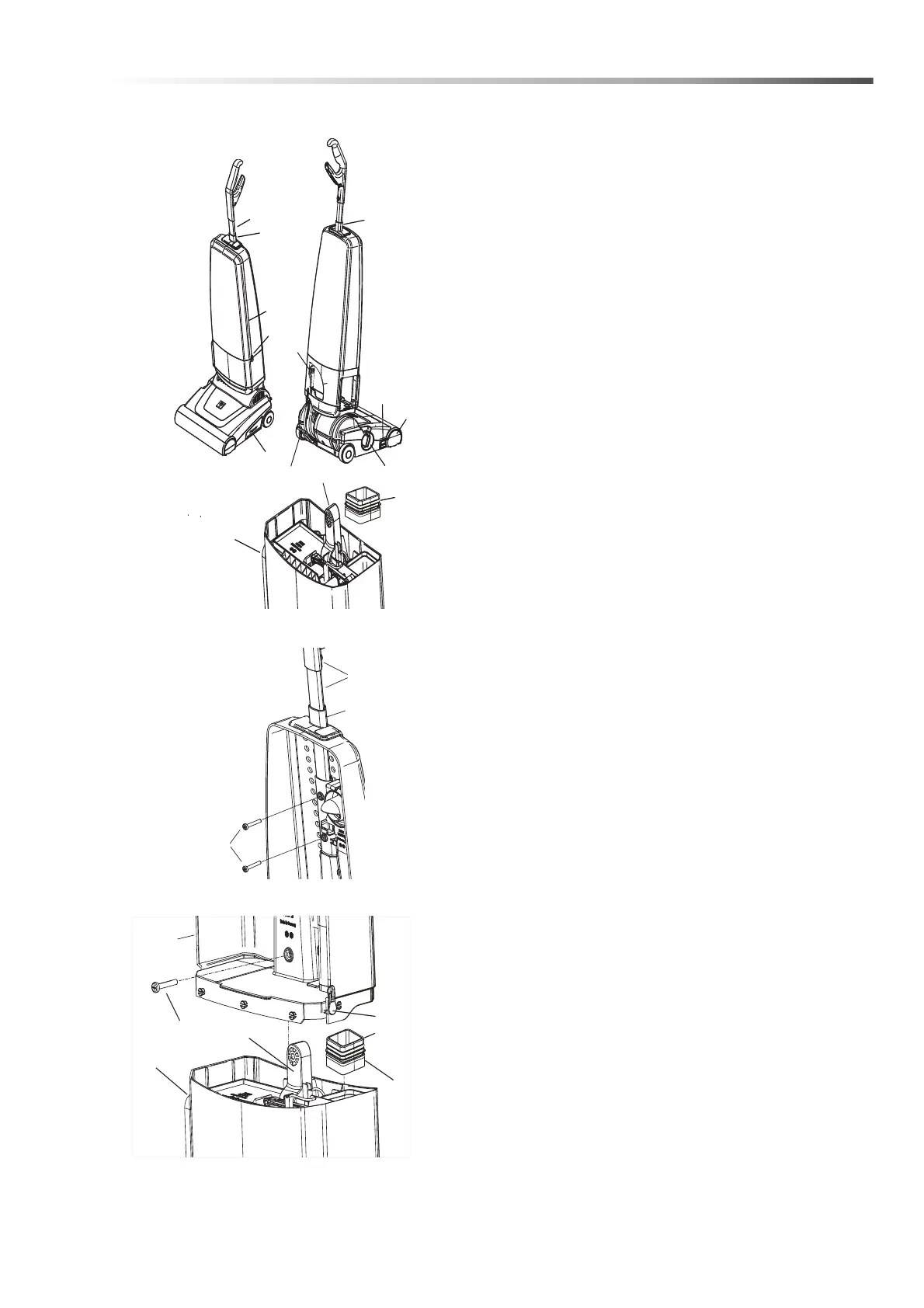

Connecting and Operating Elements
10. Brush roller
11. Zipper
12. Sliders
13. Connecting device
14. Handle & Handle tube assembly
15. Handle guide
16. Battery release lever
20. On / Off-Switch
21. Height adjustment Brush
22. Brush cover right hand
23. Release button bearing block
24. Foot pedal
25. Filter bag connection
26. Sealing Adapter
Assembly
The handle assembly (14) has to be inserted into the
guide (15) of the filter bag housing and will be
secured with the two remaining M5x30 screws (6).
Please Note: The dust bag housing cover cannot be
removed completely! It has not been shown in the
illustrations only to improve clarity!
If not already installed in the power head, first insert
bottom side with wide sealing of 86455340 (75147)
sealing adapter (26) into power head as shown. Make
sure that the wide rubber does not roll up during
insertion.
Place the filter compartment (1) on the power head
(2) so that the connecting piece (13) reaches into the
corresponding opening while inserting round sealing
edge of sealing adapter into the air channel of filter
compartment (1). Open the zipper (11) of the filter
compartment by moving the two sliders (12) all the
way down to the right and to the left. Make sure that
both ends of the zipper reach straight into the plastic
part. They may not be folded or protrude. Then press
the bottom plate of the filter housing with the flat of
your hand and shake it lightly or move the pre-
installed handle to simplify assembling.
For the final connection of the main assemblies one of
the M5x30 screws (6) from the screw bag (5) is used.
It should now be easy to push it a few millimeters into
the hole and then engage with the thread inserted
from the back.
15
11
13
14
15
16
20
21
23
24
22
12
2
75147
26
6
14
15
2
13
12
6
1
75147
26
Round sealing
edge
8.645-246.0 Manual Sensor Bp 12 36V Lithium
