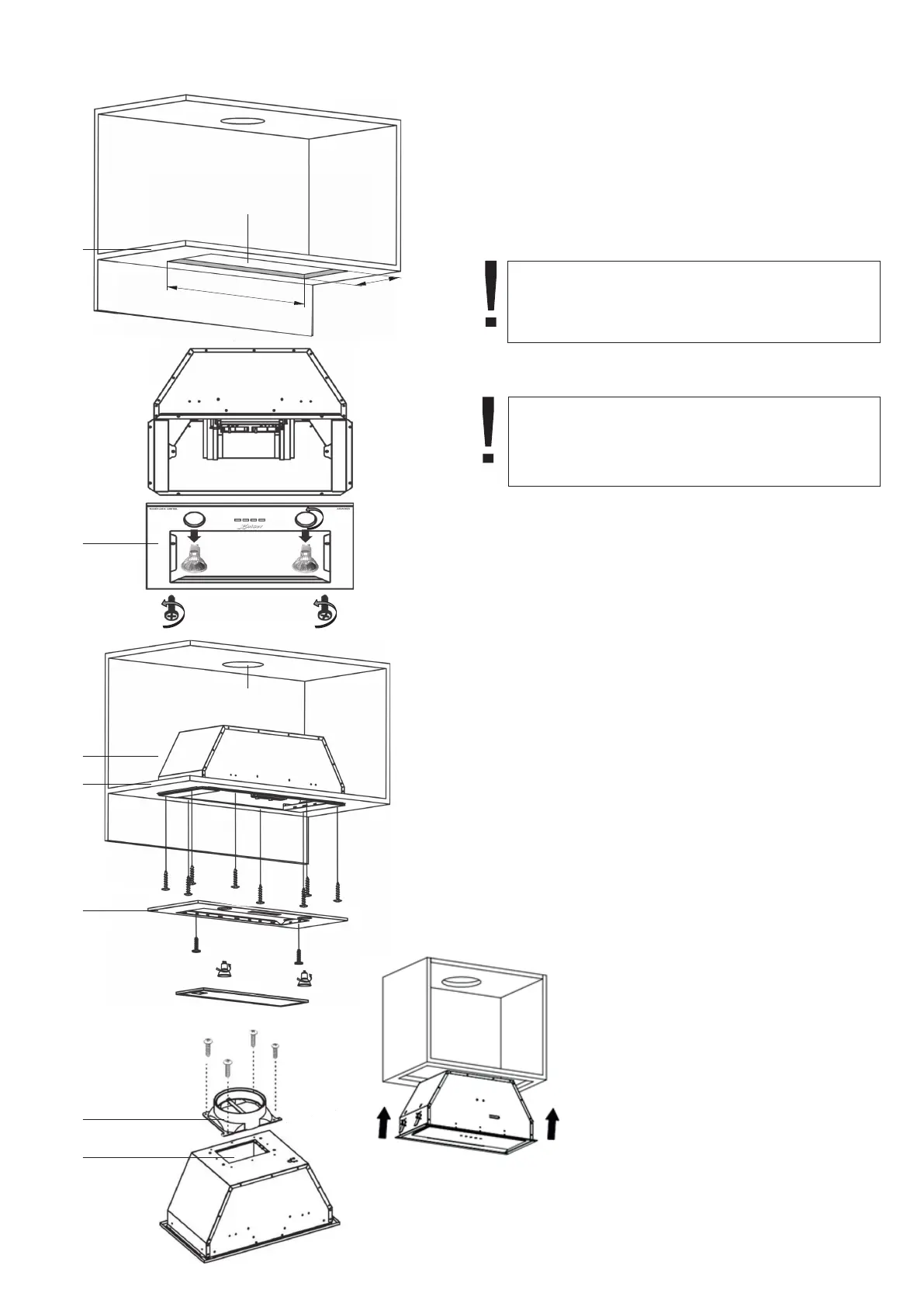

• Mount the cooker hood 4 on the cabinet 1 by 8 screws
(ST4 × 18 mm) and mount the control panel 3 on the hood
body by two screws(M4 × 10 mm)
• For an air extractor mode of the cooker hood make an
opening 7 in the deck of cabinet according with the
drawing.
Mounting under a wall unit
• Mount the V-flap 5 on the exhaust outlet of the cooker
hood 6.
• Detach the control panel 3 by unscrewing the two screws
(M4 × 10 mm).
• If the cooker hood will be operate in odour absorber mode
it is necessary to install charcoal filter (not supplied).
• Saw out in the wall unit 1 an aperture 2 665/ 490 × 265
mm (depending on model).
The cooker hood is mounted in the wall unit.
Two persons are required for proper installation. A qualified
installer should be commissioned to make the mounting.
MOUNTING OF BUILT-UNDER COOKER
HOOD
Attention! Installation and electrical connection must
be made by a qualified expert only.
Attention! The manufacturer declines all
responsibility for damage or injury if all instructions and
normal safety precautions are not respected.
