• f the cooker hood will be operate in odour I

absorber mode it is necessary to install charcoal

filter ( see p. 24).

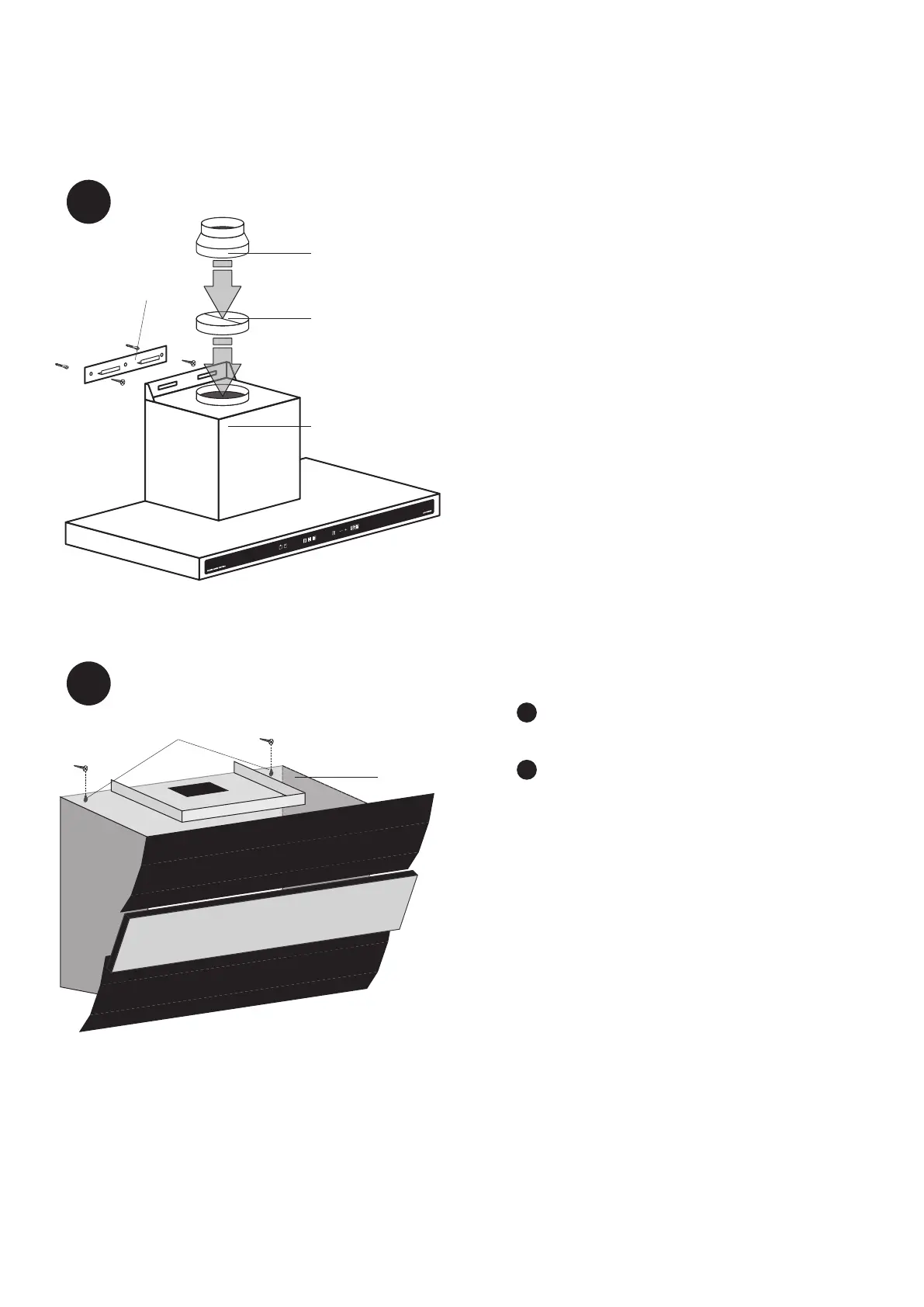

• If the cooker hood will be use in extractor mode it is

necessary to mount a vent conduit of Ø 150 mm

on the fixed V-flap 4. By connection of a conduit of

Ø 120 mm use an adapter 5.

INSTALLATION INSTRUCTIONS

There are two systems of hanging the cooker hoods:

A – on the already installed wall hanger;

B – with screws on spesial slots in hood body.

• Hold a hood hanger profile 2 to the wall on the

horizontally, symmetrically to the central line,

mark the mounting holes on the wall.

INSTALLATION OF THE WALL HANGER

• Place the hood body 1 on the wall to get min 650

mm from the cooker plate (see p. 12). Level it

horizontally. Use the top of the rear side of the

hood as ruler to trace the line.

• Trace a vertical line on the wall to indicate the

centre of the cooker plate.

• Drill the holes as indicated on the wall, using drills

of diameter 8 mm, drive the plugs in and then

screw the hanger profile to the wall. The hooks

should be upward oriented.

INSTALLATION OF THE HOOD

•

Hang the hood body 1 on the already installed

hanger 2.

• Place the hood body 1 to the wall horizontally,

symmetrically to the central line. Mark the holes

to drill on the wall using the slots in hood body, 3.

• Drill the holes as indicated on the wall, using drills

of diameter 8 mm, drive the plugs in and then

screw the hood body to the wall.
