EN

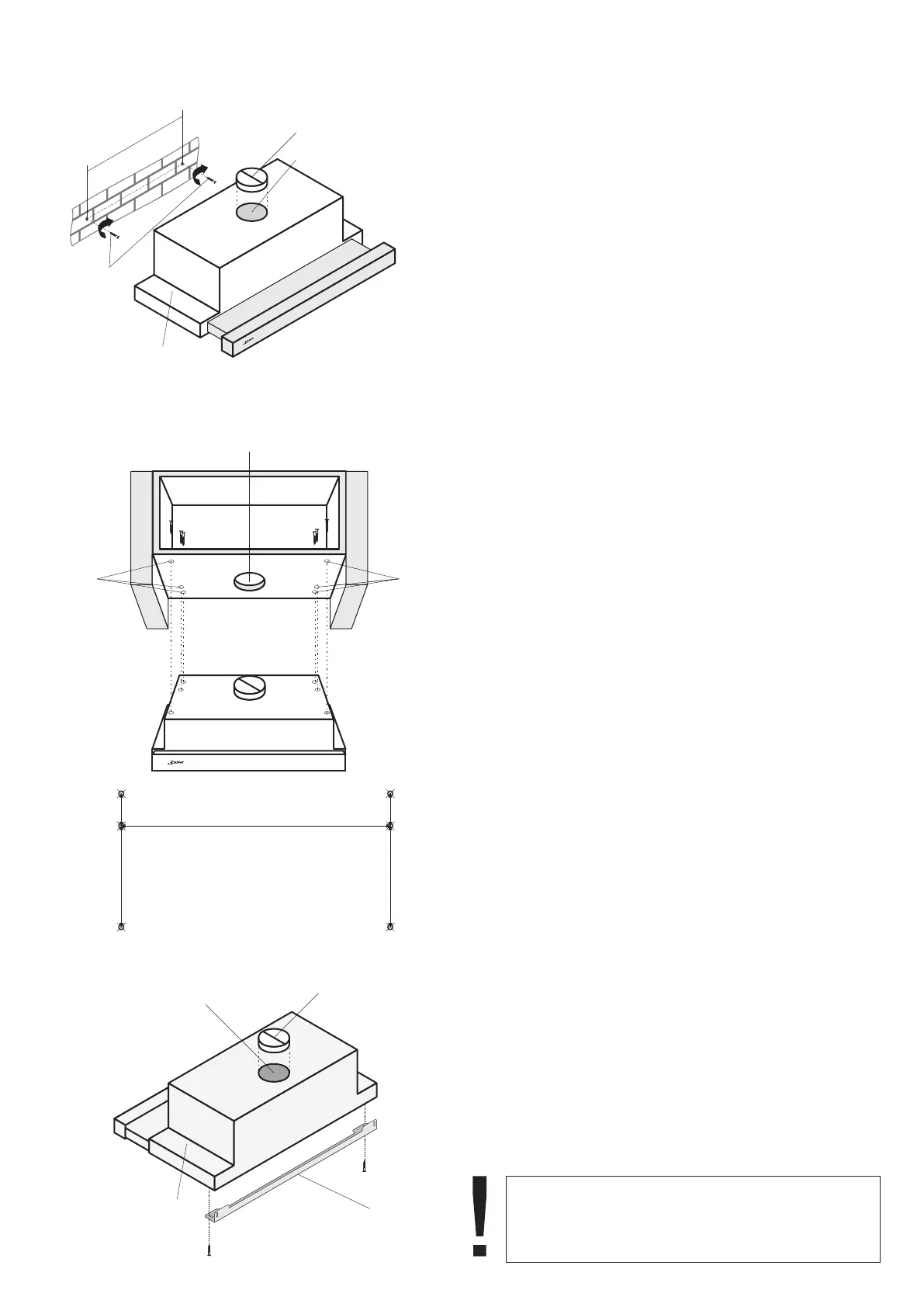

MOUNTING OF A COOKER HOOD WITH
SLIDER CONTROLS
Mounting on the wall
• Trace a vertical line on the wall to indicate the
centre of the cooker plate.
• Place the hood body 1 on the wall to get min 650
mm from the cooker plate (see p. 14). Level it
horizontally. Use the bottom of the rear side of the
hood as ruler to trace the line.
• Measure a distance between the hood’s bottom
and the holes. Trace a horizontal line on the wall
on the same distance above the bottom line. Mark
the mounting holes on the wall: 496 mm between
the holes or 248 mm between each hole and the
central line.
• Drill the holes using a drill of Ø 8 mm, drive the
plugs in and then tight the screws 2.
• Hang the cooker hood 1 on the screws 2.
• Mount the V-flap 3 on the exhaust outlet of the
cooker hood 4.
Mounting under a wall unit
• Drill in the wall unit the 6 holes 5 in predefined
places using a drill of Ø 4 mm.
• Mount the V-flap 3 on the exhaust outlet of the
cooker hood 4.
• Fasten the cooker hood with a 6 screws, operate
inside of the wall unit.
• For the air extractor mode of the cooker hood
make an opening 6 in the bottom of the wall unit in
advance, in accordance with the drawing.
• To close possible space between the cooker hood
and the wall, use a L angle spacing ba 7 on the
rear side of the device.
• f the cooker hood will be operate in odour I
absorber mode it is necessary to install charcoal
filter.
ATTENTION!
Before the beginning of the operation it is
obligatory to remove an adapter inside the cooker
hood.
7
