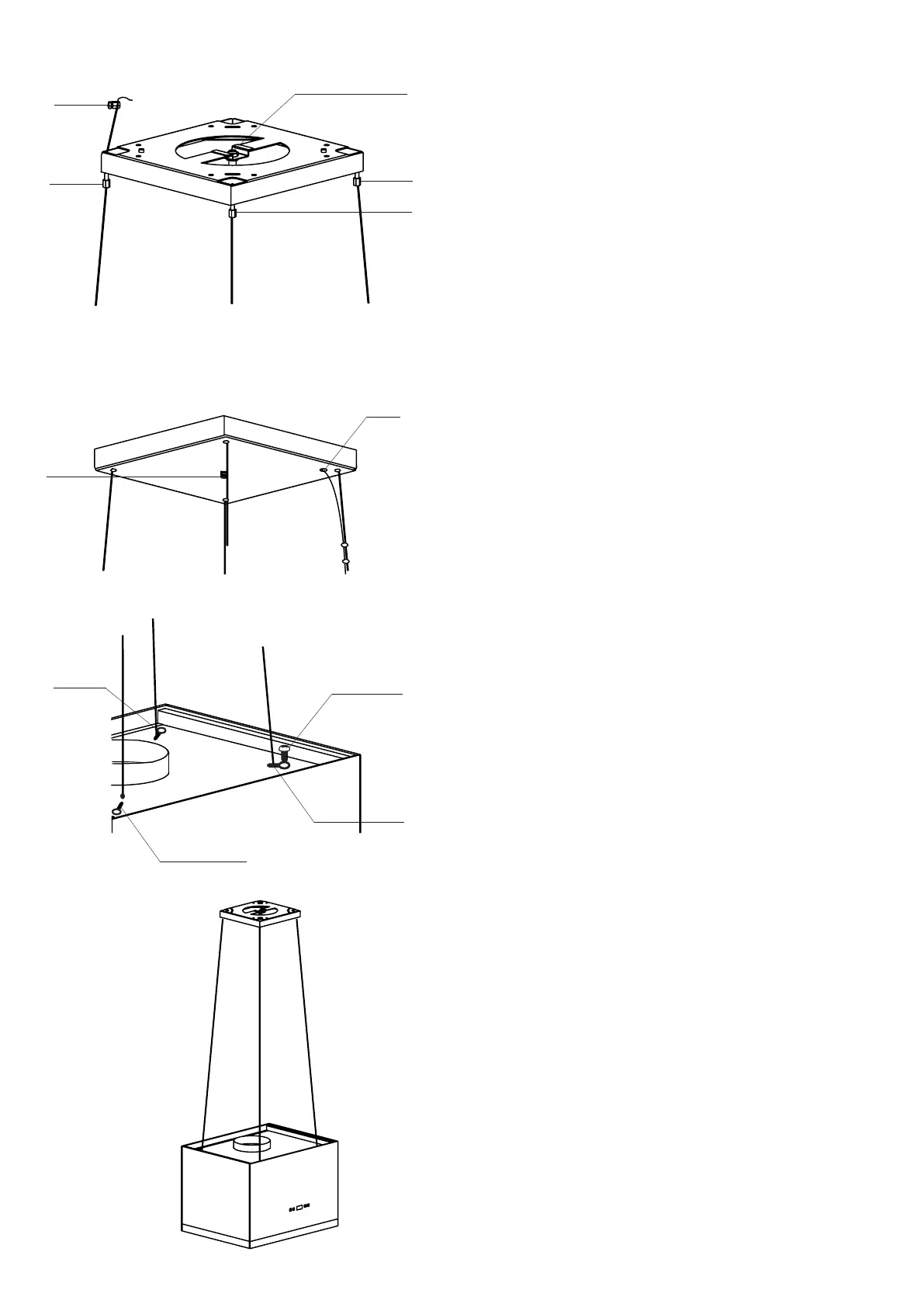

INSTALLATION OF THE HOOD ON THE
WIRE ROPES
• Insert the hollow stud M10×30 into the centre hole
of the mounting board and screw it tight firmly with
two nuts. Make sure that the height of the stud
does not exceed the height of the mounting board
1.
• Install 4 adjusting М5×28 screws 2. Pass the wire
rope through these screws. Lock the selected
cable length tight with the locking screws 3.
Ensure that the 4 wire ropes have almost the
same length.
• Put the mounting board to the ceiling and mark
the fastening points. If the ceiling is concrete, drill
4 holes and fix the mounting board using 4 anchor
bolts. If the ceiling is wooden, fix the mounting
board with 8 screws St6×40.
• Put the decorative plate to the mounting board
using the decorative nut 4.
• Hang the housing of the hood by passing the
ends of the wire ropes with the tips through the
holes 5. Lock the wire ropes with ST4 × 8 screws
6 to avoid them to slide out.
• Remove the decorative panel and pull the power
cord through the hole 7. Connect the power cord
to the power supply. To ensure electrical safety,
check the insulation reliability.
• Fix the decorative plate. Adjust the level of the
hood with the adjusting screws 2. Secure the
power cable to the cable with a cable tie. The
installation of the hood is finished.
