INSTALLATION INSTRUCTIONS

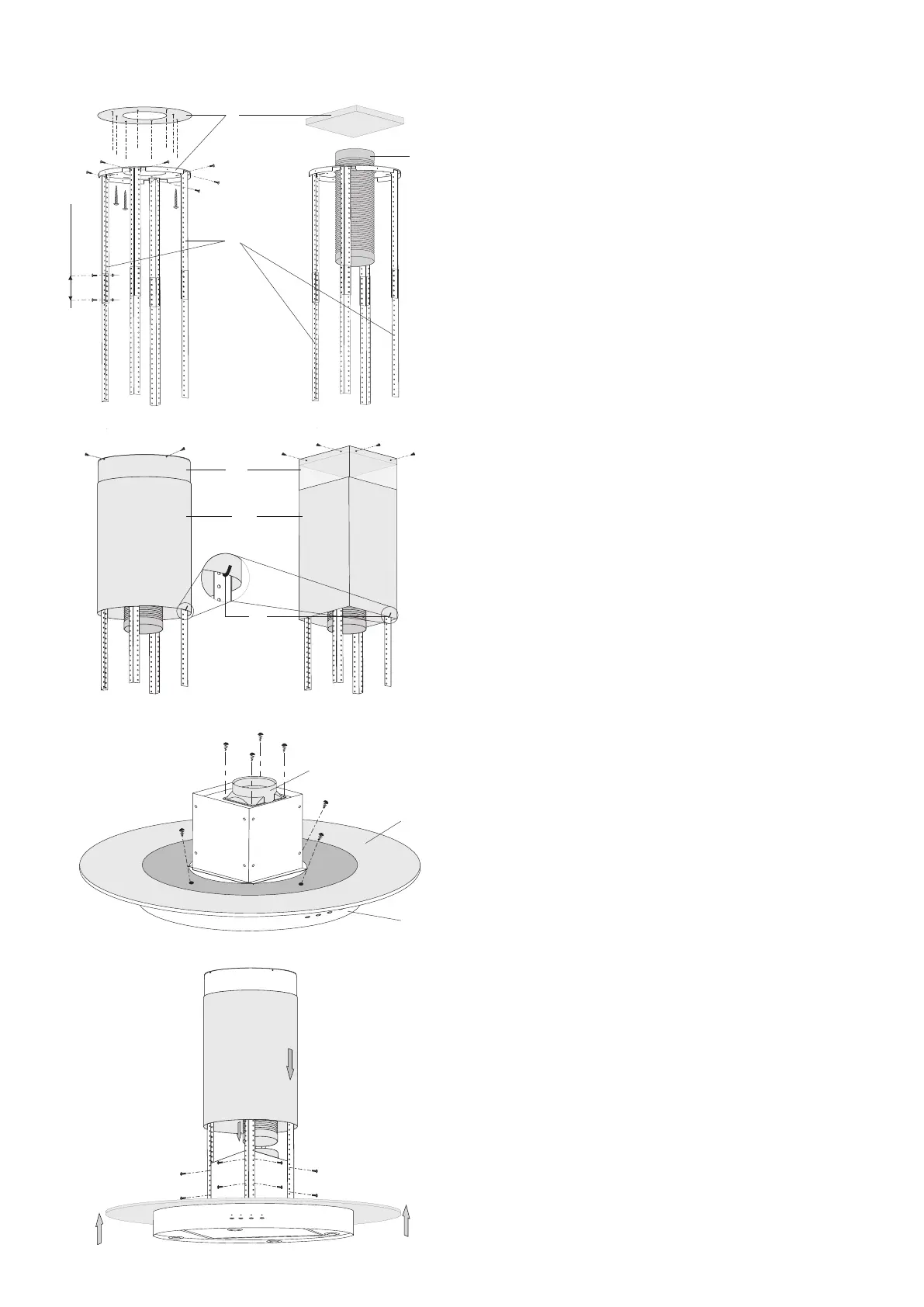

INSTALLATION OF THE CEILING HANGER
The ceiling should bear at least 40 kg of load and should
be not less than 30 mm thick. Make a round outlet hole
in the ceiling with a diameter of 170 mm.
• Put the ceiling hanger 1 (round or rectangular
depending on model) and mark 12 fastening
points, drill the holes in a ceiling. Use 12 screws
ST6×40 mm to fix the holder to the ceiling and
then use 8 screws M4×10 and nuts M4 with
gaskets to connect L-profiles 2 to the holder 1. To
increase of distance from the ceiling use
additional metal L-profiles, connecting them with
the top parts by means of 16 screws M4×10 and
nuts M4 with gaskets (the length of overlapping of
profiles should not be less than 100 mm).
INSTALLATION OF THE HOOD
• Lead out the air pipe 3 in the ceiling outlet hole.
• Use 4 screws ST4×8 to connect the top
decorative cover 4 with the ceiling hanger 1 then
hang the bottom decorative cover 5 on two hooks
6 for the further installation.
• Use 4 screws ST4×8 to establish an outlet
adapter 7 for the air pipe.
• Arrange glass 8 on the air cleaner's body 9 and
fix it using 4 screws.
• Lift a body 9 of an air cleaner with glass 8 and fix it
on metal L-profiles 2 by using 16 screws M4×10.
• Connect an air pipe 3 to the adapter 7 on the air
cleaner body 9, check up correctness and
reliability of installation. Remove the hooks 6 and
pull down the bottom decorative cover 5. The
installation is finished.of the hood
min 100 mm
4
5
6
