• f the cooker hood will be operate in odour I
absorber mode it is necessary to install charcoal
filter ( see p. 24).
• If the cooker hood will be use in extractor mode it is
necessary to mount a vent conduit of Ø 150 mm
on the fixed V-flap 4. By connection of a conduit of
Ø 120 mm use an adapter 5.

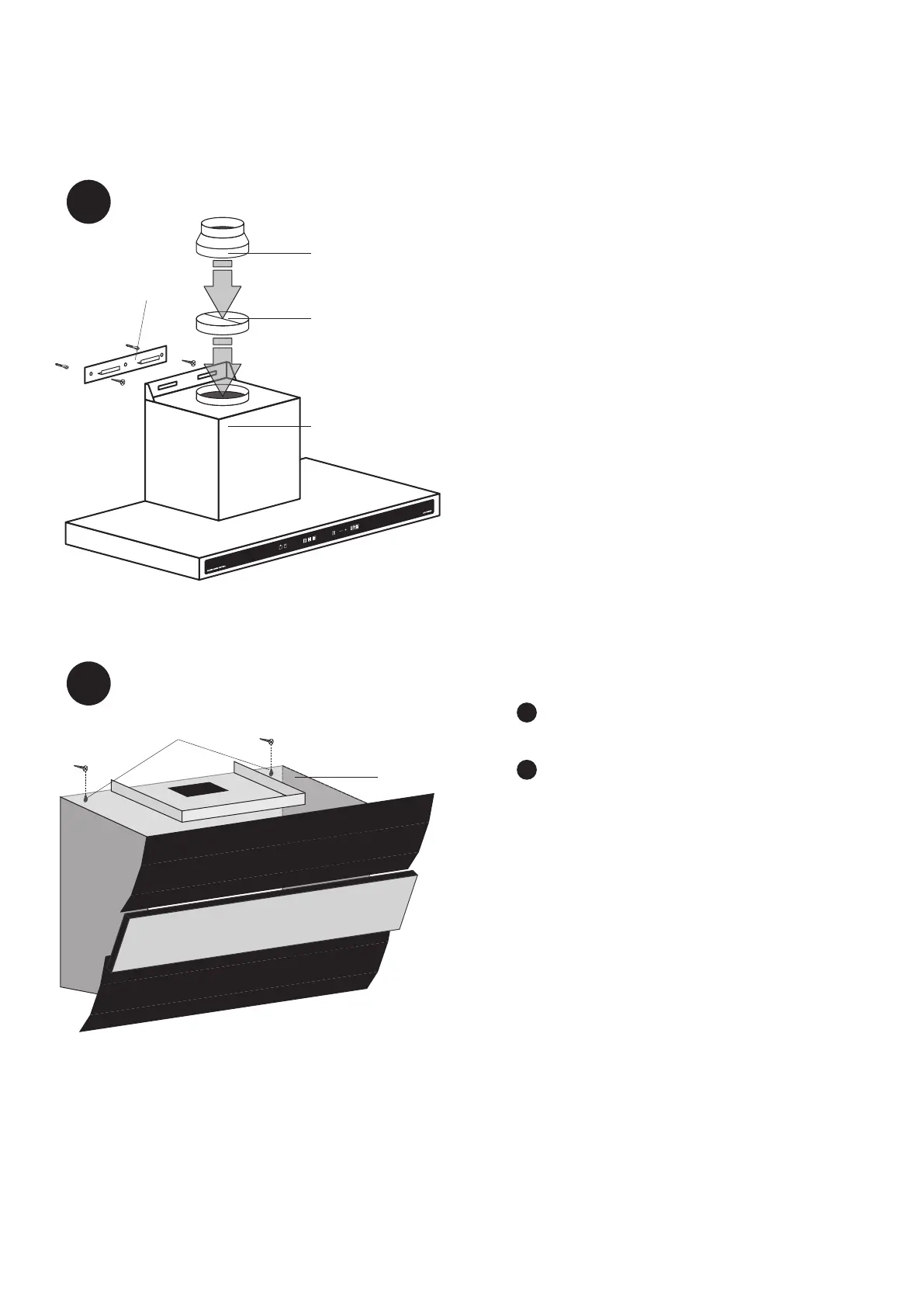

INSTALLATION INSTRUCTIONS
There are two systems of hanging the cooker hoods:
A – on the already installed wall hanger;
B – with screws on spesial slots in hood body.
• Hold a hood hanger profile 2 to the wall on the
horizontally, symmetrically to the central line,
mark the mounting holes on the wall.
INSTALLATION OF THE WALL HANGER
• Place the hood body 1 on the wall to get min 650
mm from the cooker plate (see p. 12). Level it
horizontally. Use the top of the rear side of the
hood as ruler to trace the line.
• Trace a vertical line on the wall to indicate the
centre of the cooker plate.
• Drill the holes as indicated on the wall, using drills
of diameter 8 mm, drive the plugs in and then
screw the hanger profile to the wall. The hooks
should be upward oriented.
INSTALLATION OF THE HOOD
•
Hang the hood body 1 on the already installed
hanger 2.
• Place the hood body 1 to the wall horizontally,
symmetrically to the central line. Mark the holes
to drill on the wall using the slots in hood body, 3.
• Drill the holes as indicated on the wall, using drills
of diameter 8 mm, drive the plugs in and then
screw the hood body to the wall.
A
B
2
1
1
5
4
3
A
B
