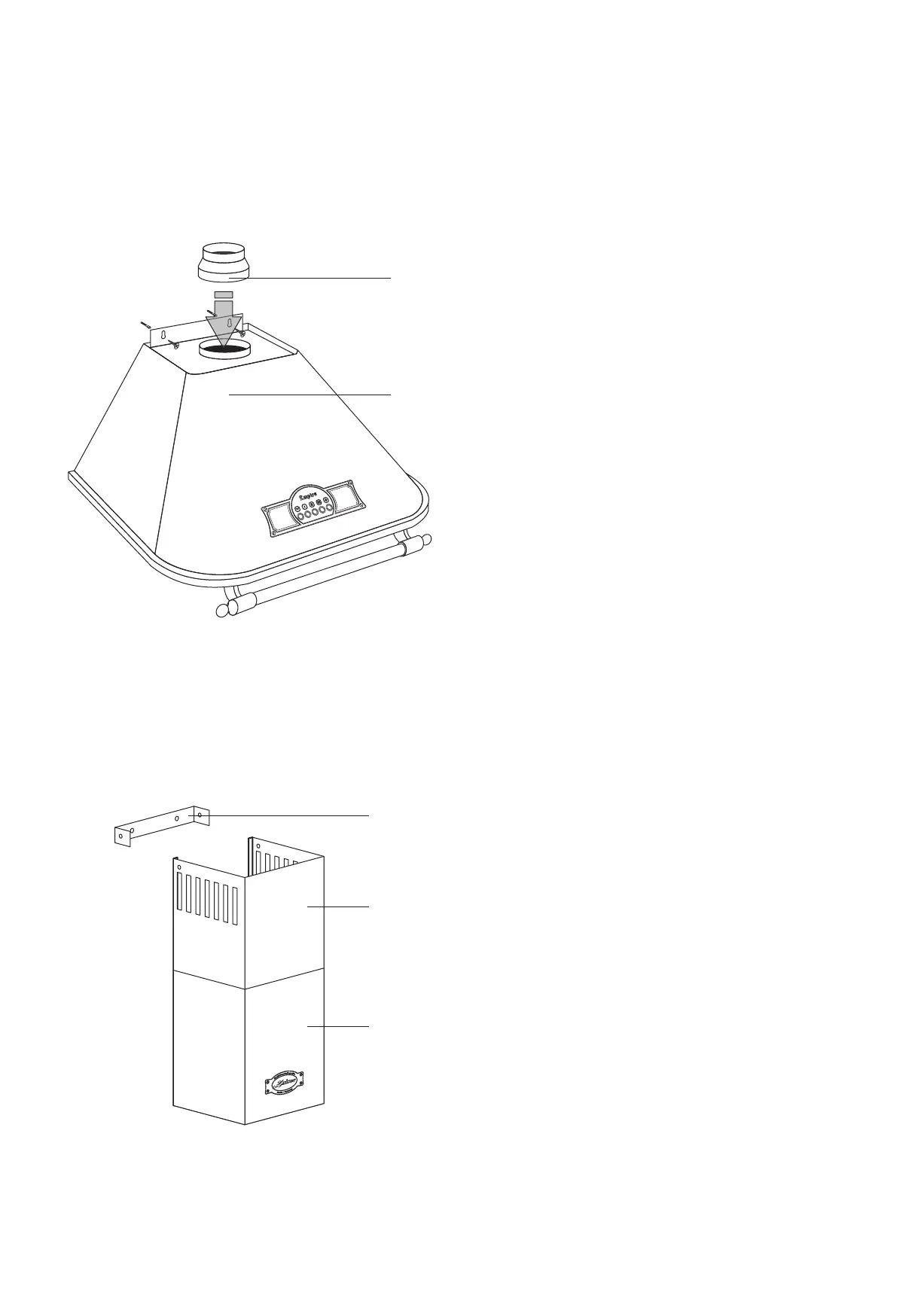

INSTALLATION OF THE HOOD
• If the cooker hood will be use in extractor mode it is
necessary to mount a vent conduit of Ø 150 mm
on the fixed V-flap. By connection of a conduit of
Ø 120 mm use an adapter 3.
• Mark the mounting holes on the wall.
• Trace a vertical line on the wall to indicate the
centre of the cooker plate.
INSTALLATION INSTRUCTIONS
• Place the hood body 1 on the wall to get min 650
mm from the cooker plate (see p. 12). Level it
horizontally. Use the top of the rear side of the
hood as ruler to trace the line.
• Drill the holes as indicated on the wall, using drills
of diameter 8 mm, drive the plugs in.
• using the screws.Hang the hood body 1
• f the cooker hood will be operate in odour I
absorber mode it is necessary to install charcoal
filter ( see p. 18).
• Hang the masking cover column 5 to the hood’s
body and to the wall hanger using appropriate
screws.
• Attach the telescopic column 5 on the masking
cover 4 of the mounted hood.
• Pull out the masking cover 5 on the demanded
height. Mark the level of the mounting holes.
Remove the masking cover.
• Place the hanger of the top masking cover 6 at
the level of mounting holes and install the hanger.
3
EN
1
6
5
4
