12

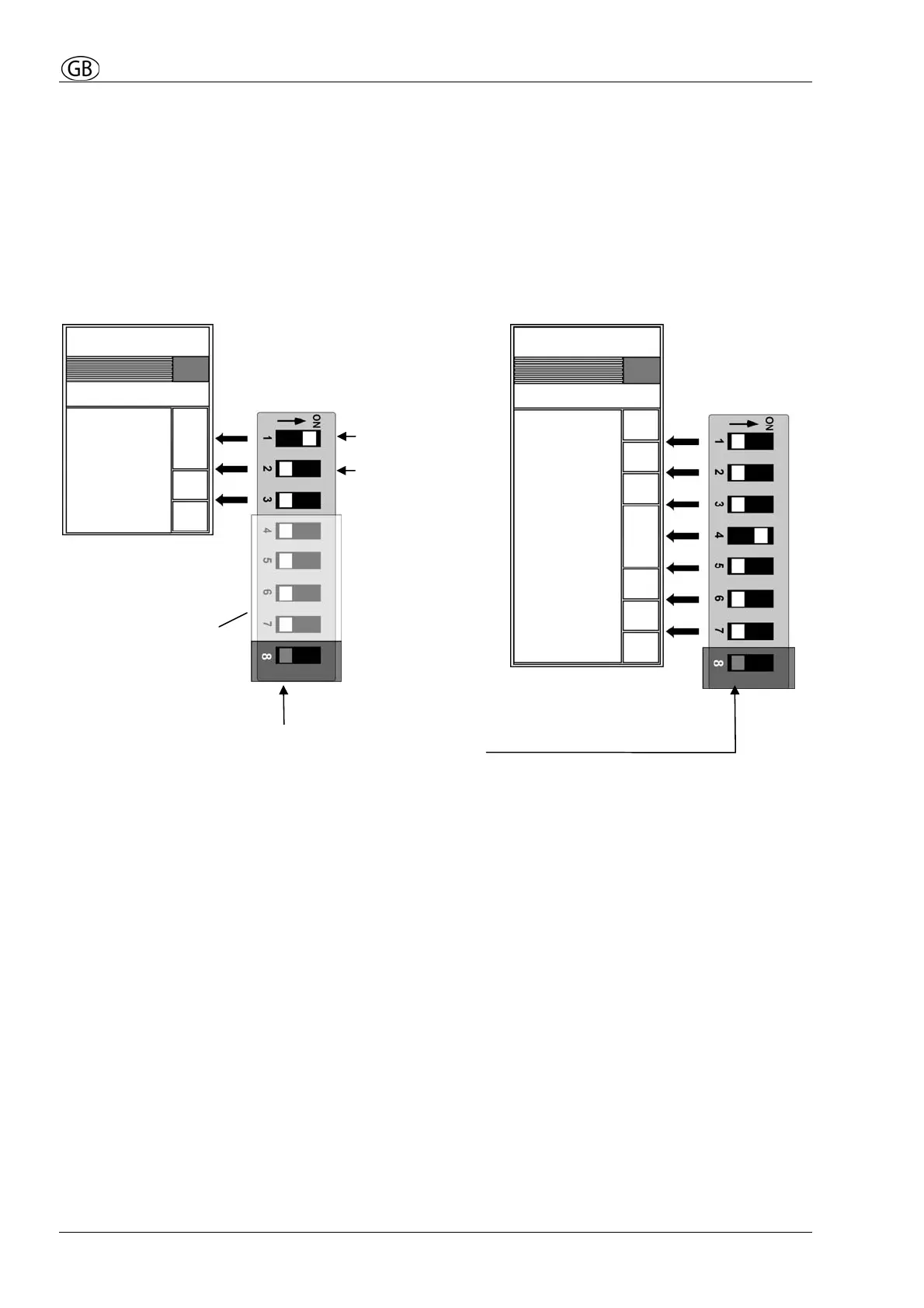

Button layout: Setting the DIP switches
Each DIP switch corresponds to one of the three or
seven gaps between two plug-in positions.
If a button covers an gap, the switch must be set to
ON.
If configured completely with 4-gang buttons, all DIP
switches must be in the OFF position.
Activating the button layout
• To activate the new button layout, the buttons must be programmed as bell buttons (as-
signment of an indoor station).
• If a 2-gang or 1-gang button is to be used as a light button, this button must first be pro-
grammed as a bell button and then deleted.
Fitting the button
• Fit the DCM buttons according to the configuration. Note the mechanical encoding of
the buttons. Press lightly on the buttons to snap them in.
OFF:
gap not covered
ON:
covered
g
a
p
not used
Switch 8: OFF
Define button layout
OFF
ON
