11

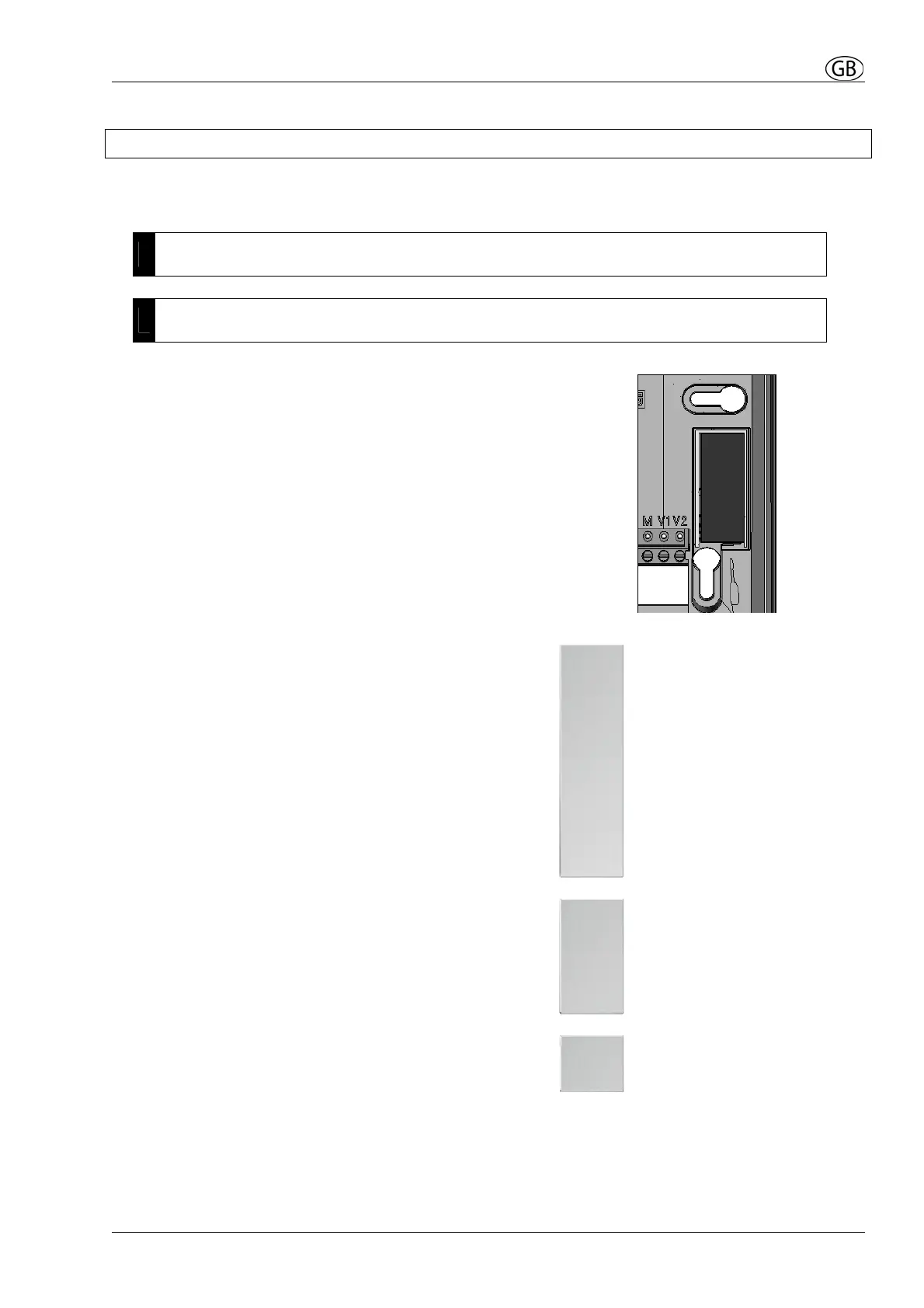

Setting the button layout

The button layout can be configured using the DIP switch.

To set the button layout, DIP switch 8 must be in the OFF position.

!

If the button layout is not set for 1-gang and 2-gang buttons, there will be mal-

functions during operation.

!

When the button layout is changed, all of the bell buttons have to be deleted.

All bell buttons are assigned with the light switching function.

DIP switch cover

• Open the device if necessary.

• Remove the cover over the DIP switches.

Buttons

1-gang button

Button occupies 4 plug-in positions

and covers 3 gaps.

2-gang button

Button occupies 2 plug-in positions

and covers 1 gap.

4-gang button

Button occupies 1 plug-in position and

does not cover any gap.

1-gang button

2-gang button

4-gang button
