Commissioning
!
Please complete the full installation before you connect the system to
the mains voltage!
• Do NOT connect V1 and V2 with the P-, M-, a- or b-wire. Even a connection for a
quick moment will destroy the device.
• When connecting the video wires V1 (+) and V2 (-) observe polarity.
If you can see a distorted image on the display, switch off the mains voltage and
change the wires V1 and V2..
• Install all of the devices of the system completely.
• Check the a, b and P wires for short-circuit.
• Switch on the mains voltage.
The following functions are available without additional programming:
- communication from the indoor stations to the outdoor station
- door release function
- light switching

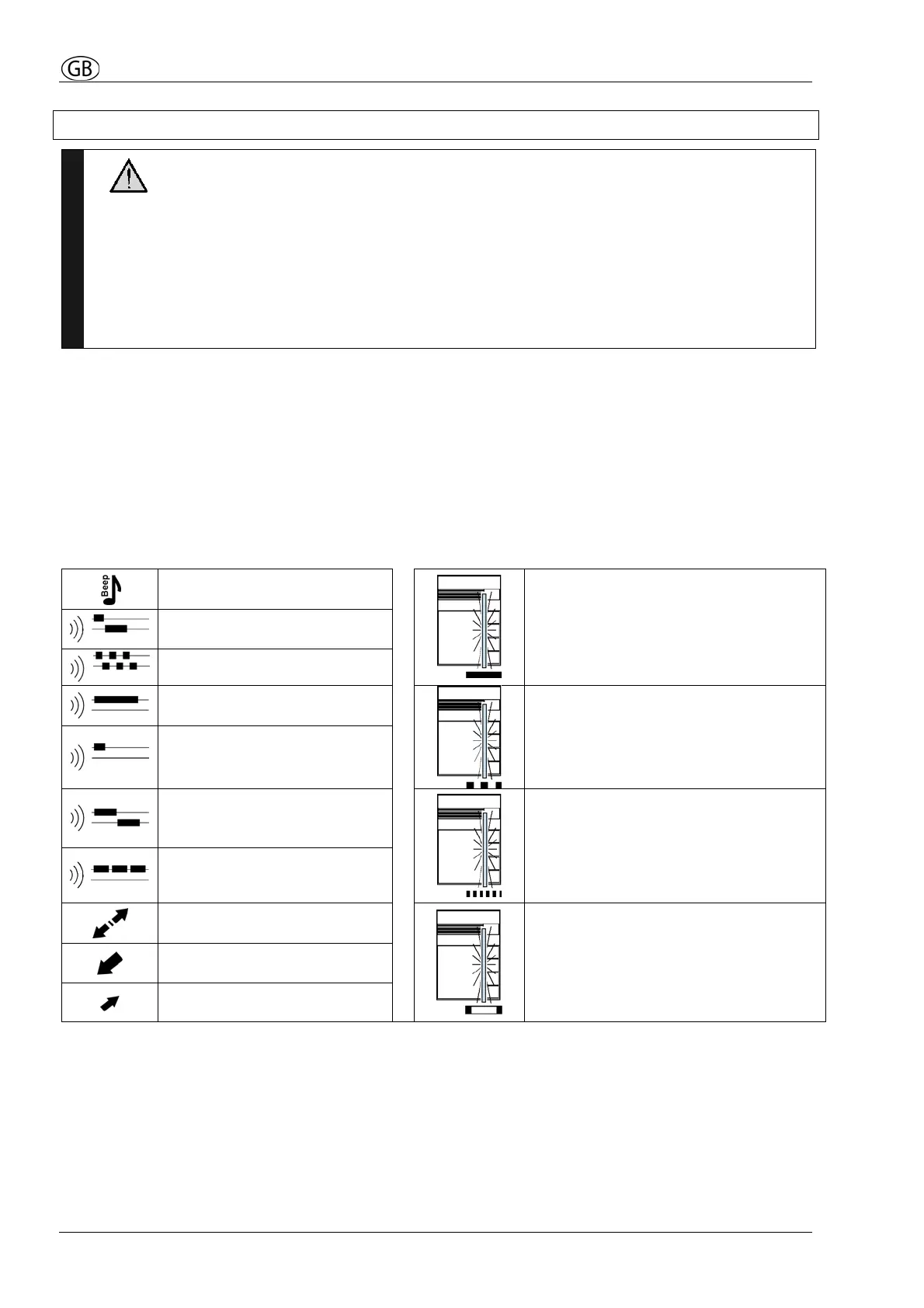

Acoustic and optical signals, pressing buttons
Positive acknowledge tone
Negative acknowledge tone
(button already programmed)
Ring tone (from programming
acknowledgement)
Nameplate illumination On
Prog2 tone (programming of
the 2nd serial number begins)
NoProg tone (programming will
be deleted if the button is
released now)
Nameplate illumination flashes:
Programming mode
0.5 s On / 0.5 s Off
ProgBlock tone
Occupied tone
Nameplate illumination flashes quickly:
Parameter mode
0.125 s On / 0.125 s Off
Press button briefly (approx.
1s) and release
Press button until ...
Release button
Nameplate illumination pulse flashing:
Fault mode
0.175 s On / 0.825 s Off
