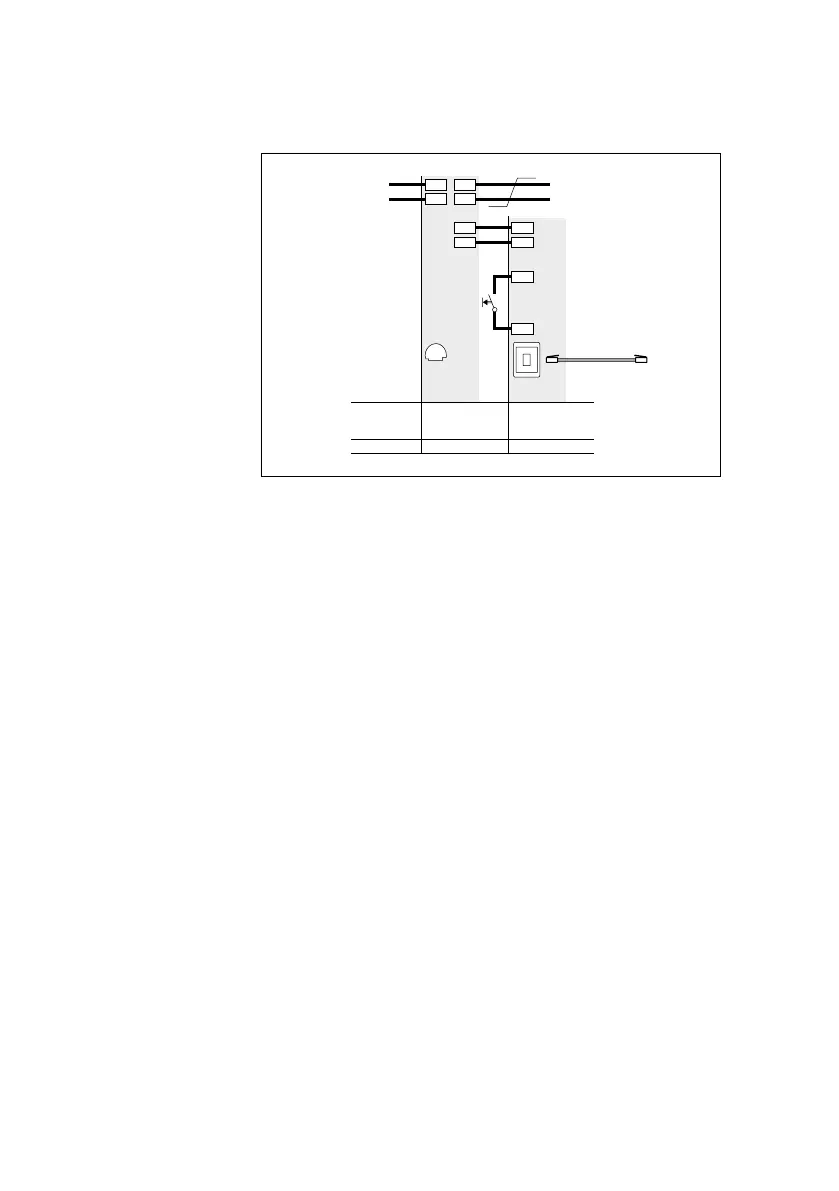

6.1 Installation video
Siedle Vario with S851-0/SGM650-0/SG650-0
In-Home-Bus: Video
Ta E
3
Ta D
Ta A1
TbE
4
TbD
TbA 2
BVVU 650-...
f)
ERT
In-Home
Junction box
UAE 8(8)
Remarks
Device
requirement
Siedle Vario with S851-0/
SGM650-0/SG650-0
Functional
Calling, speech and video functions
between door station and the
connected bus indoor devices with
colour display.
Audio and video privacy of existing
calls from other bus indoor devices is
assured. Door release button for the
door release function, light button
for the light switching function.
Connection of a storey call button
(ERT) for calling from an apartment
door. Ring tones can be selected for
calls from the front door, apartment
door or internal calls.
If more than one S851-…/
SGM650-… or other bus indoor
devices with colour display are
installed in a system, a BVVU650-…
is required for each S851-…/
SGM650-…
Other bus door loudspeakers with
video are connected with bus
video distributors BVVU650-… or
BVVS650-…
Supplementary functions
• Internal speech communication
between bus indoor devices is only
possible internally within the same
line.
• Connection of bus telephones
AIB150-…/BTS/BTC/BFC850-… or
devices for switching and control
functions via bus audio decoupler
BAA650-…
For more information, see
page68
• Switching and control functions
are possible with the bus switching
modules BSM/BSE/BEM650-…,
feedback to the deluxe bus indoor
devices can be programmed.
For more information, see
page123
• Bus secondary signal unit
BNS750-… possible.
For more information, see
page132
• Parallel door and storey call
Up to 8 bus indoor devices with
colour display can be called simulta-
neously via one call button. From the
second bus telephone VIB150-…/
BTSV/BTCV/BFCV850-… each
device must be additionally supplied
at terminals +M/–M.
Only possible within a line.
Every bus video panel must have its
own separate supply.
• Selective dialling of the door
station possible via additional free
buttons.
Remarks
a) The TR603-… (12VAC, 1.3A)
can supply the door release, camera
heating and max. 30 bus call button
modules.
Where more bus call button modules
are used, an additional TR603-… is
required for the door release.
b) Door release/light contact
load in the bus video line recti-
er BVNG650-… max.15VAC,
30VDC, 2A.
c) Door release 12VAC, use at least
20Ohm (e.g. TÖ615-…).
For more information, see
page126
d) Conductor length bus indoor
device – storey call button ERT max.
50m.
e) If more than one S851-…/
SGM650-… or other bus indoor
devices with colour display are
installed in a system, a BVVU650-…
is required for each S851-…/
SGM650-…
f) If several BVVU650-… units are
switched in series, the combination
of resistor and capacitor at TaD, TbD
must be removed.
g) Power supply via ANG600-…
or via PoE in accordance with
IEEE802.3af.
h) Every SG650-… must be supplied
via a separate ANG600-…
46
