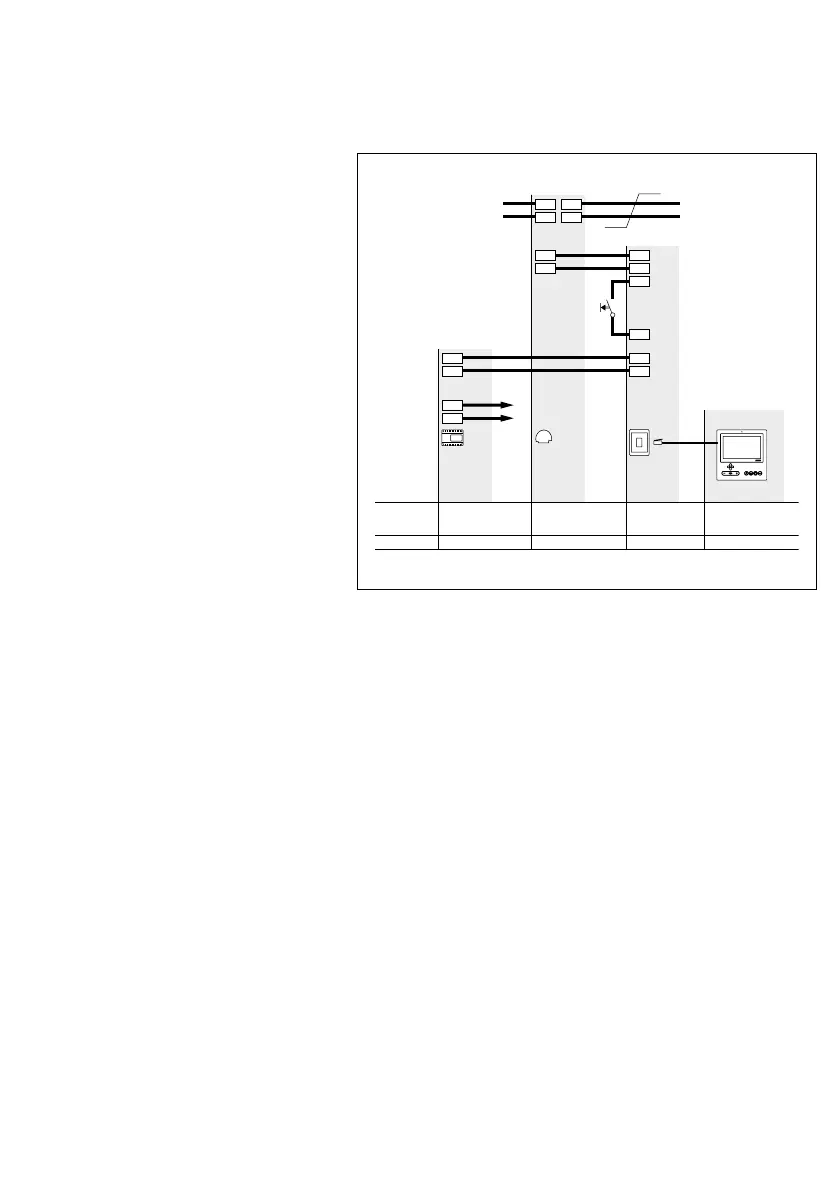

BVVU 650-...
ERT
TbA
7
8
-
Ta E
TbE
Ta D
TbD
Ta A
1
3
2
4
+
N
L1
ZTVP 850-...
BVPS 850-...
BVPC 850-...
230 V AC
i)
In-Home-Bus: Video
LNG 600-...
Junction box
UAE 8(8)
Remarks
Device
requirement
Siedle Vario with BVPS/
BVPC850-0
Functional
Calling, speech and video functions
between door station and the
connected bus indoor devices with
colour display.
Audio and video privacy of existing
calls from other bus indoor devices is
assured. Door release button for the
door release function, light button
for the light switching function.
Pressing the monitor button will
show the camera picture from the
door station which placed the last
door call. This function is only pos-
sible if no call exists.
Connection of a storey call button
(ERT) for calling from an apartment
door. Ringtones can be selected for
calls from the front door, apartment
door or internal calls.
Other bus door loudspeakers with
video are connected with bus
video distributors BVVU650-… or
BVVS650-…
Supplementary functions
• Internal speech communication
between bus indoor devices is only
possible internally within the same
line.
• Connection of bus telephones
AIB150-…/BTS/BTC/BFC850-… or
devices for switching and control
functions via bus audio decoupler
BAA650-…
For more information, see
page68
• Switching and control functions
are possible with the bus switching
modules BSM/BSE/BEM650-…,
feedback to the deluxe bus indoor
devices can be programmed.
For more information, see
page123
• Bus secondary signal unit
BNS750-… possible.
For more information, see
page132
• Parallel door and storey call
Up to 8 bus indoor devices with
colour display can be called simulta-
neously via one call button. From the
second bus telephone VIB150-…/
BTSV/BTCV/BFCV850-… each
device must be additionally supplied
at terminals +M/–M.
Only possible within a line.
Every bus video panel must have its
own separate supply.
• Selective dialling of the door
station possible via additional free
buttons.
Remarks
a) The TR603-… (12VAC, 1.3A)
can supply the door release, camera
heating and max. 30 bus call button
modules.
Where more bus call button modules
are used, an additional TR603-… is
required for the door release.
b) Door release/light contact
load in the bus video line recti-
er BVNG650-… max.15VAC,
30VDC, 2A.
c) Door release 12VAC, use at least
20Ohm (e.g. TÖ615-…).
For more information, see
page126
i) One LNG600-… supplies max. 3
BVPS/BVPC850-… devices
For more information, see
page129
43
