230 V AC
230 V AC
VNG 602-... VNG 602-... SI VI ... SI VI ... SI VI ... SI VI ... SI VI ... SI VI ... SI VI ...SI VI ...
+M
-M
+M
-M
+M
-M
N
L1
N
L1
+M
-M
+M
-M
+M
-M
+M
+M
-M
+M
-M
-M
+M
-M

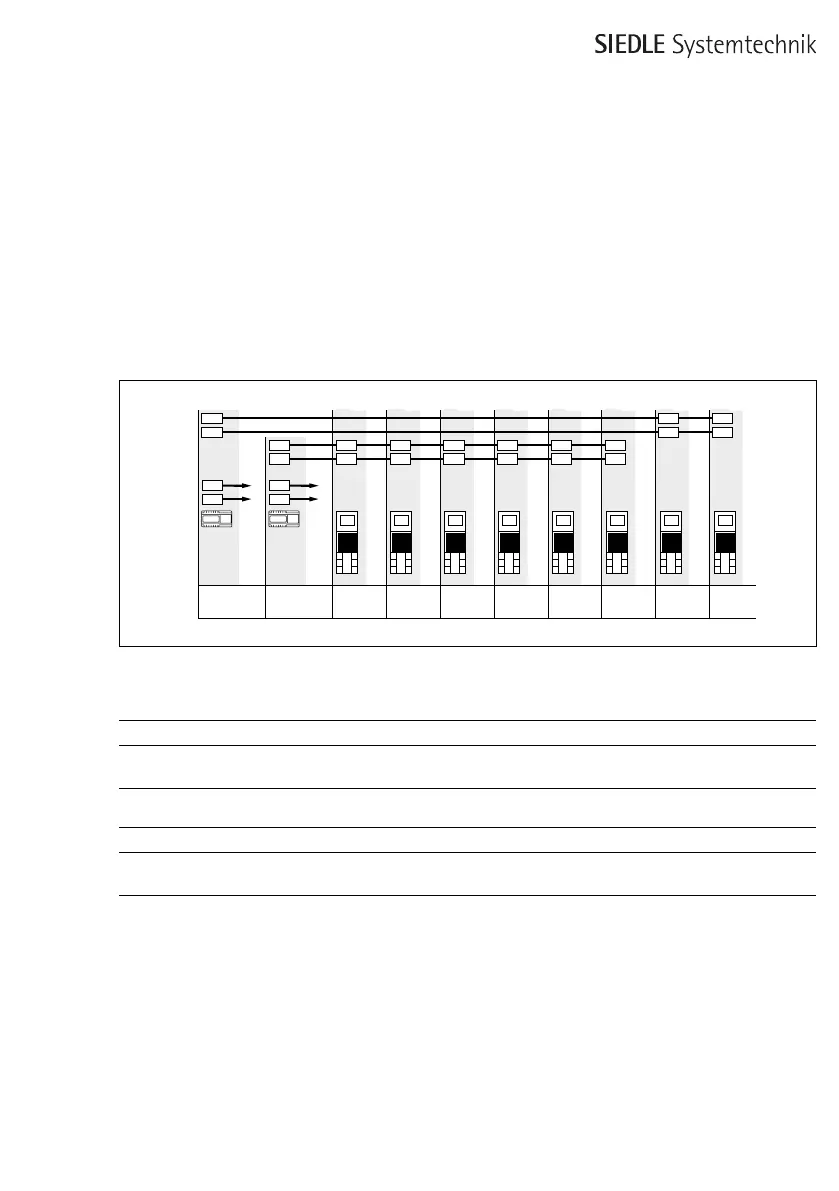

Supply of 8 Jung video indoor
stations
A maximum of 6 SIVI… units can
be supplied by a VNG602-… line
rectier. The maximum current of
the 30VDC direct voltage from the
VNG602-… is 1100mA.
The specied ranges only apply to
the external power supply to the
devices, not to the ranges of the
In-Home bus. Ranges applicable for
J-Y(ST)Y or YR installation cable with
0.8mm core diameter! Only devices
which are located in the same line
can be supplied by one line rectier.
Power supply with NG602-… Max. conductor length/Distance of the supply
SIVI …
Current consumption 170mA
1 device
50m
2–8 device
Further additional power supply
Power supply with VNG602-… Max. conductor length/Distance of the supply
SIVI …
Current consumption 170mA
1 device
200m
2 device
200m
3 device
150m
4 device
120m
5 device
90m
6 device
70m
131
