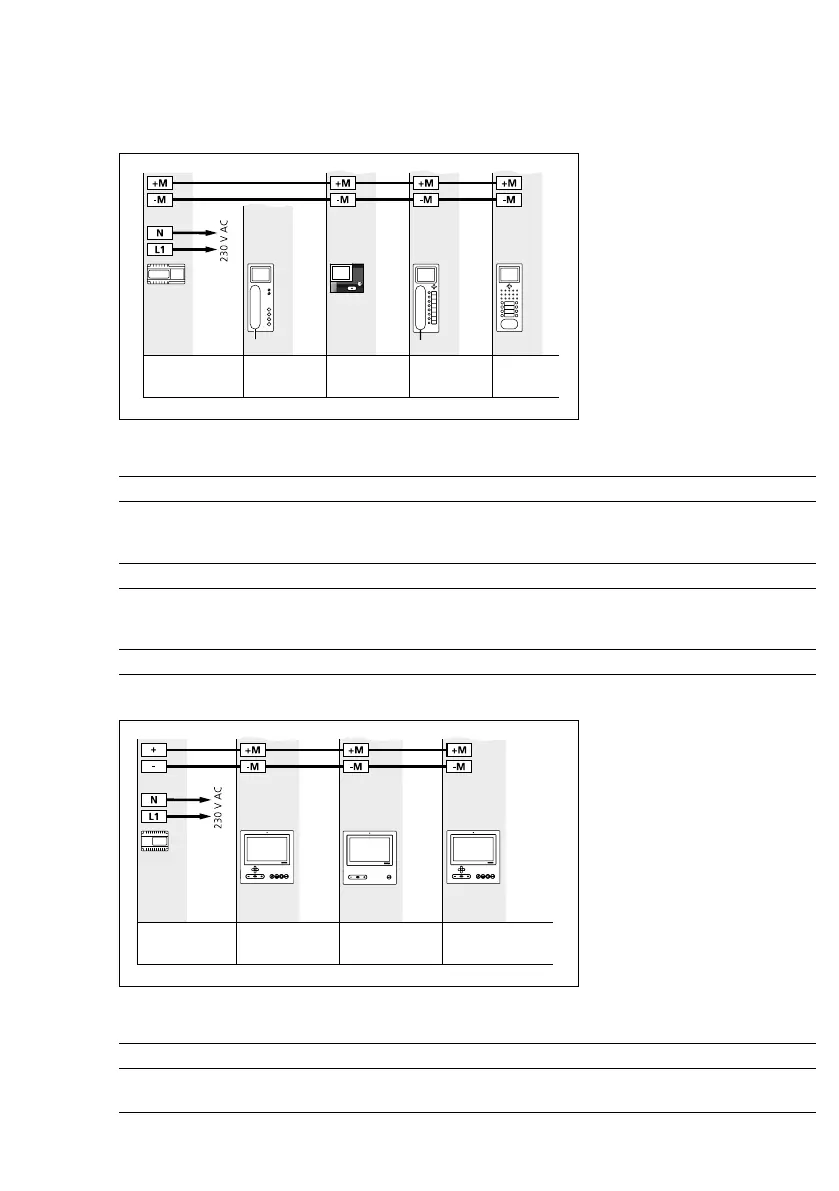

LNG 600-... BVPS 850-...

1. device

BVPC 850-...

2. device

BVPS 850-...

3. device

VNG 602-... BTSV 850-...*

1. device

BFSV 850-...

2. device

BTCV 850-...

3. device

BFCV 850-...

4. device

A maximum of 3 VIB150-…/BTSV/

BTCV/BFCV850-… units can be

supplied by a NG602-… line rec-

tier. The maximum current of the

30VDC direct voltage from the

VNG602-… is 1100mA. The speci-

ed ranges only apply to the external

power supply to the devices, not

to the ranges of the In-Home bus.

Ranges applicable for J-Y(ST)Y or YR

installation cable with 0.8mm core

diameter! Only bus indoor devices

which are located in the same line

can be supplied by one line rectier.

A maximum of 3BVPS/BVPC850-…

devices can be supplied by one

power line rectier LNG600-…. The

maximum current of the 30VDC

direct voltage from the LNG600-…

is 1100mA. The specied ranges

only apply to the external power

supply to the devices, not to the

ranges of the In-Home bus. Ranges

applicable for J-Y(ST)Y or YR instal-

lation cable with 0.8mm core diam-

eter! Only bus indoor devices which

are located in the same line can be

supplied by one line rectier.

Power supply with VNG602-… Max. conductor length/Distance of the supplementary supply

BTSV850-…/VIB150-…, 300mA

Operating mode NORM

Operating mode NORM, cable J-Y(ST)Y

1 device

100m*

150m*

2 device

100m

150m

3 device

100m

140m

4 device

100m

100m

Operating mode increased range 200m*** 140 m 100 m not possible

BTCV/BFCV850-…, 350mA

Operating mode NORM

Operating mode NORM, cable J-Y(ST)Y

1 device

100m*

150m*

2 device

100m

150m

3 device

100m

140m

4 device

100m

100m

Operating mode increased range 200m*** 140 m 100 m not possible

Power supply with LNG600-… Max. conductor length/Distance of the supply

BVPS/BVPC850-… 1 device

200m

2 device

120m

3 device

70m

4–8 device

Further additional power supply

129
