7.3 Programming – with PC
BPS650-… and PRI602-…USB
TR 603-...
BTSV 850-... BTCV 850-...
BTLM
BTM
Ta KTaMTa MTaM Ta MTaM
TbMTbM TbM TbM TbMTbK
Ta K
Ta
Ta
c
GND
GND
c
c
b
Vc
Vc
b
bTö
Tö
Li
Li
NN
L1L1
TbK
Tb
Tb
Siedle Vario
BCM 653-...
BTLM 650-...
BTM 650-...
Tö 12 V AC
min. 20 Ohm
ERTERT ERT
PRI 602-... USB
BVNG 650-...
+ZBVG 650-...
230 V AC
230 V AC
IN
Sa Sa
Sb Sb
cv
bv
BCM
Ta MTaM
TbM TbM
ERTERT
ETbETb
ETb
ERT
VIB 150-...
Device
requirement

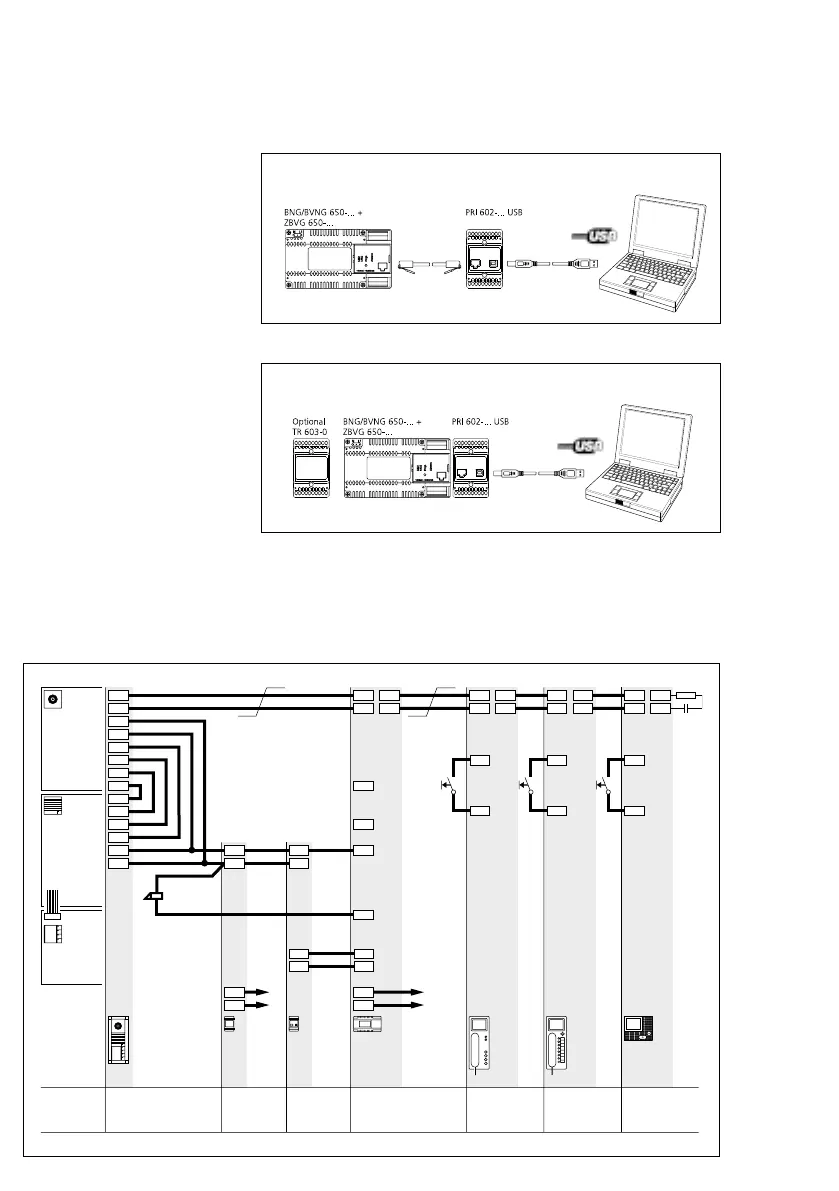

Using bus programming software
BPS650-… the entire function of an
In-Home system can be programmed
using a Windows PC. For connection
of the PC to the In-Home installa-
tion, the programming interface
PRI602-…USB and the bus power
supply accessory ZBVG650-…
are required. The ZBVG650-… is
plugged once within a system and
once in a BNG/BVNG650-… The
PRI602-…USB can be permanently
installed in a system or can be
plugged in via an 8-pin Western
junction box. Current updates for
the BPS650-… software are avail-
able in the download area under
www.siedle.com. For more infor-
mation on how to commission the
system using the Bus programming
software BPS650-… refer to the
software online help.
The user interface of the deluxe bus
video panel is transmitted to the
BVPC850-… using the supplied SD
card. See operating instructions for
the BVPC850-…
Mobile operation
Permanent installation
122
