17

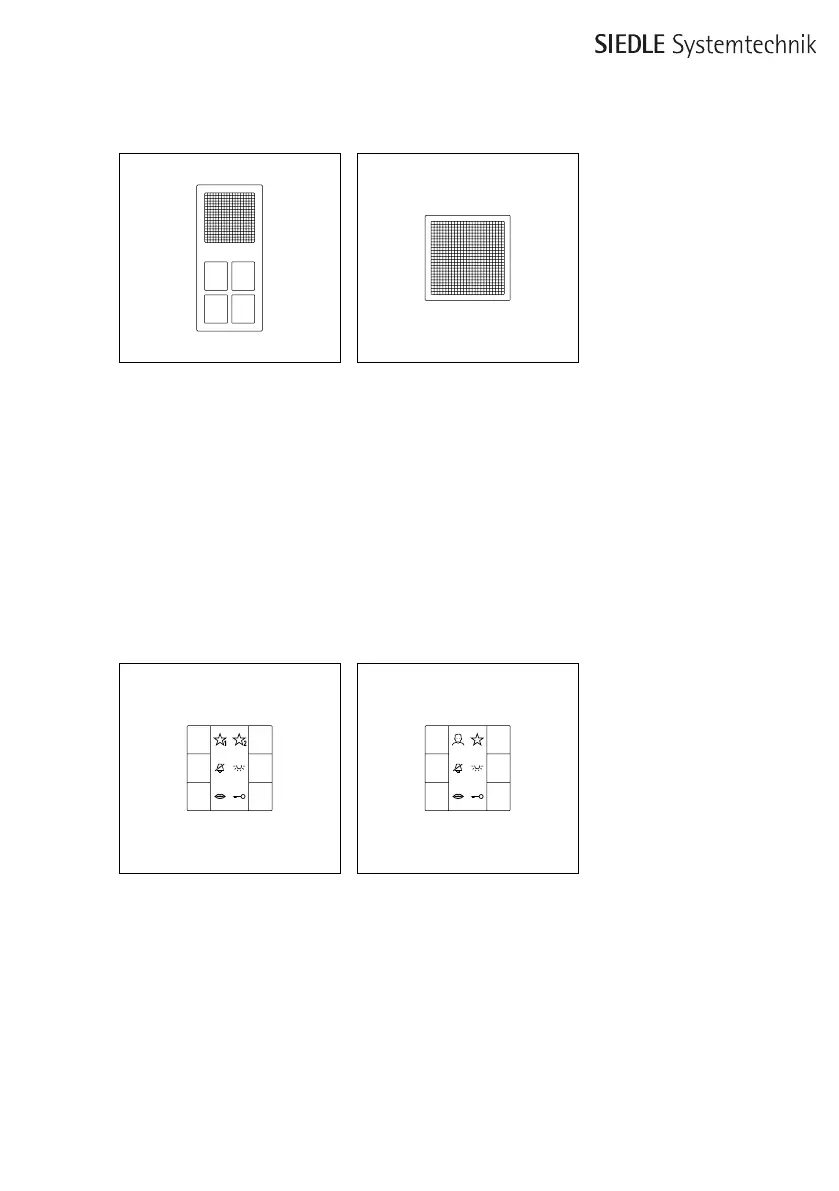

Jung indoor stations
SI4A..
Audio indoor station standard
Audio indoor station design standard
Calling, speech, door release, light,
storey call, switching/control func-
tions and internal communication.
• Polarity reversal-proof 2-wire
installation
• Connection for Siedle In-Home bus
• Connection for storey call button
• Call generator with 11 call tone
sequences, including chime
• Muting and status display
SITM..5073
The standard call button module has
5 LEDs for display (e.g. door open)
without additional wiring, one ready
status using LED and one optical call
display by means of a ashing LED at
the speech button.
The standard call button module is
supplied including inscription lm for
audio/ video and audio connecting
cable (red, 220mm).
SIAM…
The audio module is the basic
module of the modular structured
ush mounted indoor station. This
is where the Siedle In-Home bus is
connected. If no call button module
or video module is connected, the
audio module functions as a sec-
ondary signal unit (bell).
SITM..5093
The universal call button module has
5 LEDs for display (e.g. door open)
without additional wiring, one ready
status using LED and one optical call
display by means of a ashing LED at
the speech button.
The universal call button module
with inscription eld capable of
illumination is supplied including
inscription lm for audio/ video
and audio connecting cable (red,
220mm).
The universal call button module
has one terminal for a supplemen-
tary power supply. This is required
for operation of a video module,
illumination of the inscription eld
in the universal call button module,
and when connecting a second
call button module. An additional
call button module (standard or
universal, max. 2call button mod-
ules per indoor station) can be
connected.
