5 In-Home: Audio users
Power supply, line rectiers

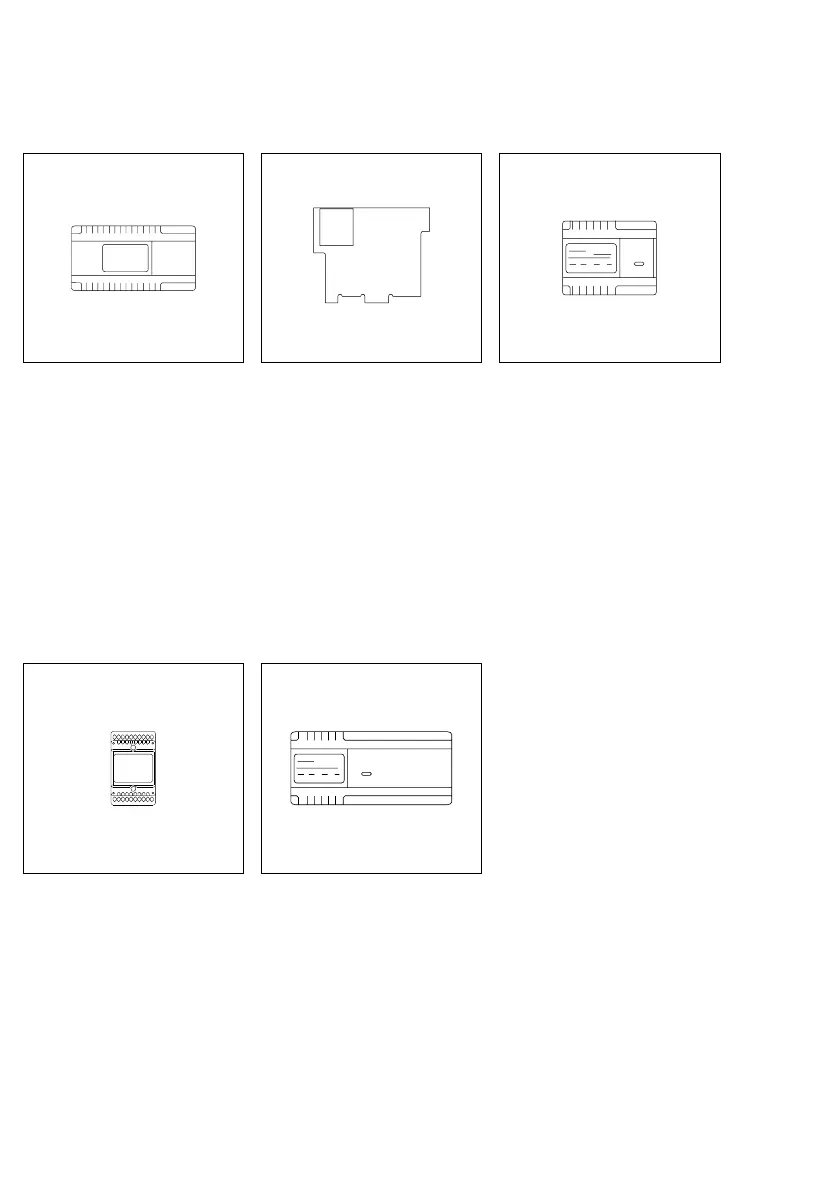

BNG 650-0
Bus line rectier in a 9-grid housing.
Primary: 230VAC, 50/60Hz
Secondary: 12VAC, 1A
Door release contact 15VAC,
30VDC, 2A, switching time xed
at 3seconds.
Light contact 15VAC, 30VDC,
2A, switching time 0.4seconds,
capable of being changed with bus
programming software BPS650-…
ZBVG 650-0
Bus supply unit accessory as a
plug-in card for integration in bus
line rectier BNG650-… or bus
video line rectier BVNG650-… with
8-pin Western socket for connec-
tion of the programming interface
PRI602-…USB.
Is required in systems with more
than one line or for programming
the in-home bus via a Windows PC
and PRI602-…USB. Only one unit
may be installed within the Siedle
In-Home bus.
NG 602-01
Line rectier in switch panel housing
for 1+n technology, and for power
supply to supplementary compo-
nents. Inclusive of function LEDs.
Operating voltage:
230VAC+/–10%, 50/60Hz
Typical current consumption: 41VA
Output voltage: 23.3VDC, 12VAC
Output current: 0.3ADC; 1.6AAC
Protection system: IP20
Ambient temperature:
0°Cto+40°C
Horizontal pitch (HP): 6
Dimensions (mm) W x H x D:
107x89x60
TR 603-0
Transformer in a 3-grid housing.
Primary: 230VAC, 50/60Hz
Secondary: 12VAC, 1.3A
Additional supply for lighting the
name signs or door releases.
VNG 602-02
Video line rectier in a 10-grid
housing.
Primary: 230VAC, 50/60Hz
Secondary: 30VDC, 1.1A stabi-
lized.
For supplying bus video indoor
devices in case of parallel calls, if the
video memory is used or for external
cameras.
