Preparing a device for commis-
sioning with the server
Manually connecting
transmitters and actuators
4. MANUAL COMMISSIONING
In many applications, it is sufficient
to set the eNet device’s operating
mode and to connect the trans-
mitter and actuator functions to
one another afterwards. A “project
design” may then be limited to the
list of functions and connections,
or may be completely unnecessary.
Setting the operating mode
Hand-held and wall transmitter
buttons must be set to a normal
button or scene function.
Generally speaking, actuators
have one operating mode switch.
Depending on the device, it is also
used to set other parameters, such
as shading solution running times
for blind actuators, or to adapt the
load type for dimming actuators.
For installation environments that
are not easily accessible, it is ad-
visable to turn the operating mode
switch to the PC position follow-
ing commissioning. Subsequent
changes to the device settings can
thus be made using the eNet serv-
er without an excessive amount of
installation work.
Manually connecting transmitters
and actuators

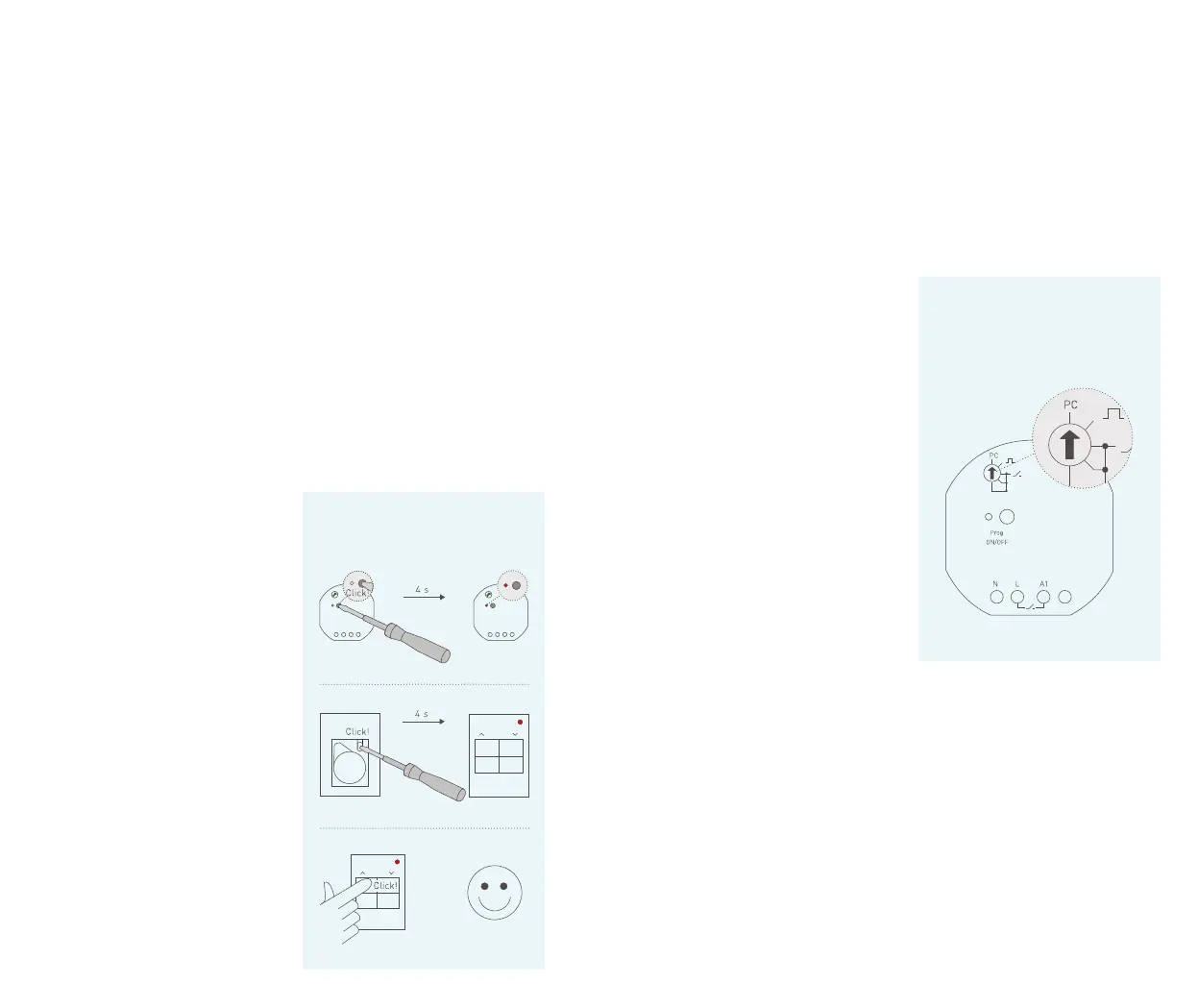

1. Put the actuator into Program-
ming mode.
2. Put the transmitter into Pro-
gramming mode.
3. Press the desired operating
button on the transmitter.
The transmitter and receiver
save the connection.
The transmitter and receiver exit
Programming mode.
Up to ten actuators can be con-
nected to a transmitter in a sin-
gle process. To this end, the ten
actuators must first be put into
Programming mode one after the
other. Then, the transmitter is
put into Programming mode and
the desired transmitter button is
pressed. The transmitter button is
now connected to the ten actuators.
Because devices exit Program-
ming mode again after one min-
ute of inactivity, the distances
may have to be considered from a
temporal standpoint for installed
devices.
5. COMMISSIONING WITH THE
eNet SERVER
If, for example, processes involve
• operating eNet devices using a
smartphone or the remote ac-
cess solution,
• activating advanced operating
modes or setting device param-
eters,
• implementing automatic func-
tions (If-Then rules, timing func-
tions, etc.),
• implementing blocking functions
or time functions,
the path leads through the eNet
server. eNet SMART HOME con-
nect, the graphical commissioning
solution, allows the user to clearly
create connections between eNet
devices, set device parameters and
document the entire system.
Setting the operating mode on a
PC
Prior to commissioning with the
eNet server, the devices’ operat-
ing mode switches should be put
into the PC position so that the
operating mode can be changed
from the server.
Commissioning using
eNet SMART HOME connect
Once the building structure has
been created, devices can either
be added by performing a device
search from the installation or from
the eNet server catalogue. Cata-
logue devices are practical to use if
the system is designed beforehand
at a desk. Catalogue devices must,
however, be exchanged for real
devices later on in the installation
process.
133132 eNet _ Planning and commissioning
