❷
SM9051603SC Screw
❸
NM6050003SC Nut
❹
40201874 Anti-vibration rubber
❶
❷
❸
❹
Slightly sinks
1.5 to 2.0 mm
Feed dog of
the sewing
machine
(largest feed
pitch)
Throat plate
Cloth puller belt
– 12 –

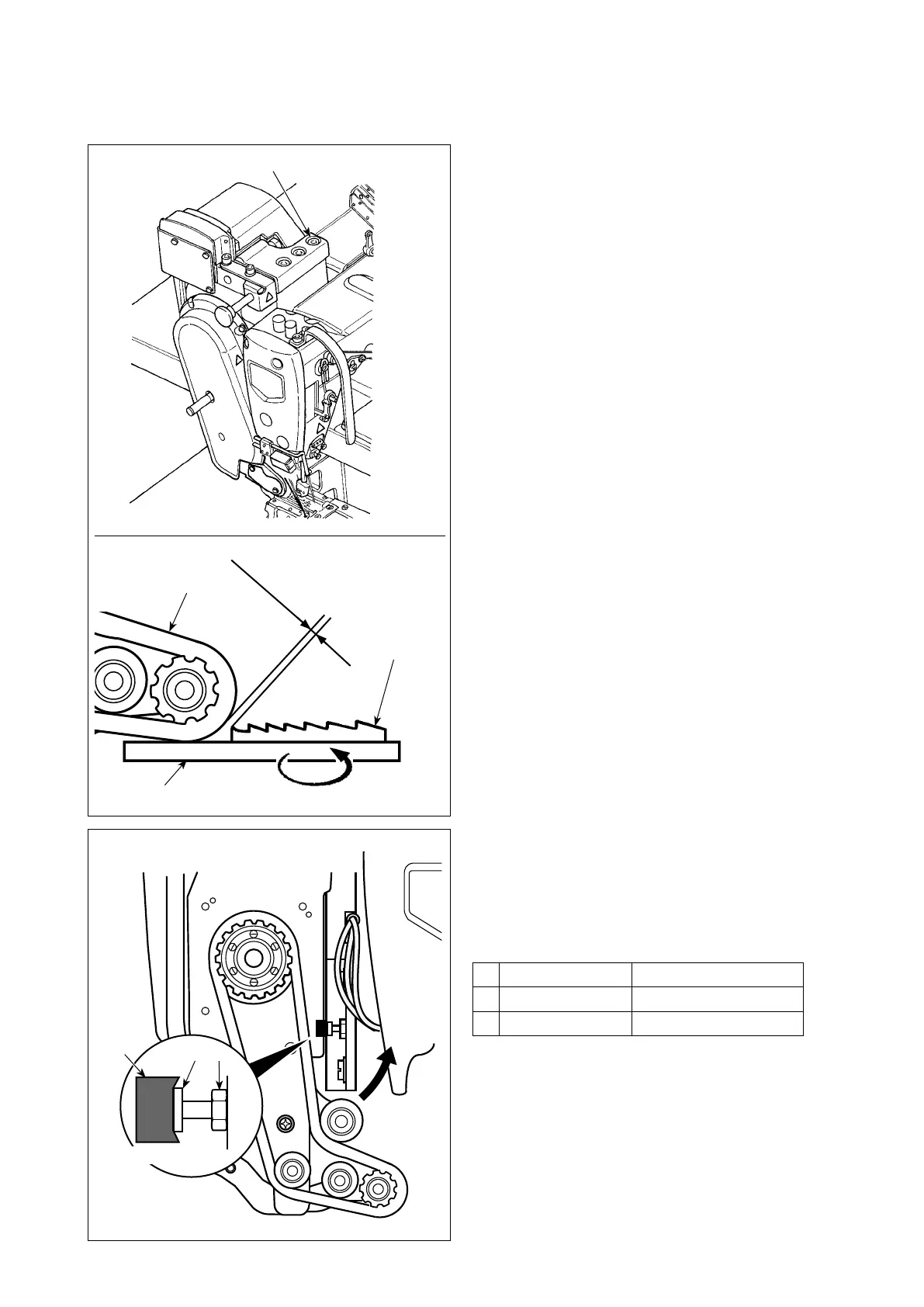

3-10. How to adjust the cloth puller
1) Loosen hexagon head setscrews
❶
(three piec-
es).
Maximize the feed amount of the main body of
sewing machine. Adjust the feed amount to 1.5 to
2.0 mm by moving the cloth puller back and forth
when the feed dog approaches closest to the belt.
3-10-1. Adjusting the cloth puller belt and its longitudinal position
2) Loosen screw
❷
and adjust the longitudinal posi-
tion of the cloth puller so that the head of screw
❷
comes in contact with rubber
❹
to such an extent
that rubber
❹
slightly sinks.
3) Tighten nut
❸
to secure the cloth puller.
