− 7 −

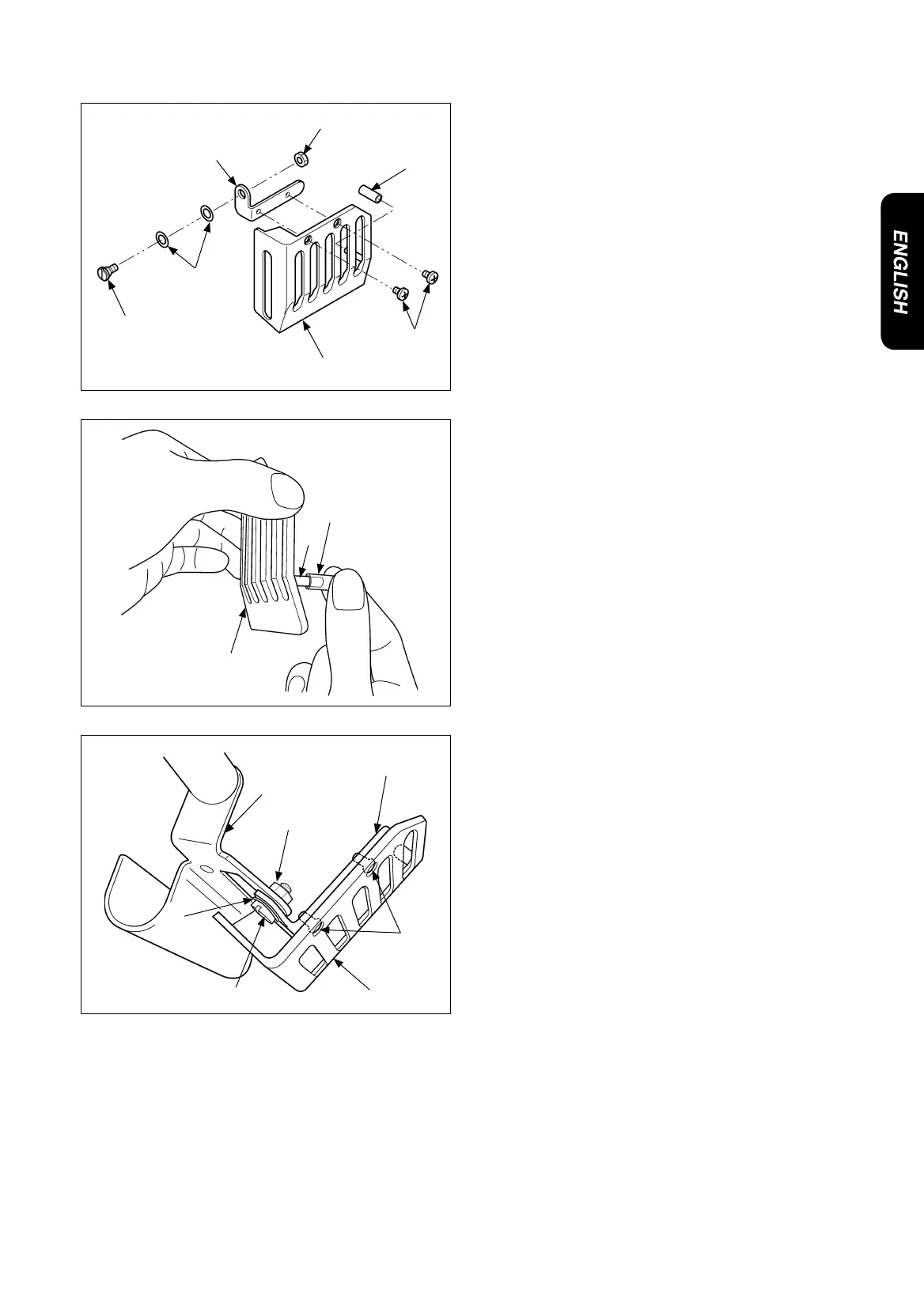

9. Installing procedure of the thread take-up lever oil guard
Attachments for the thread take-up lever oil guard are as
shown in the left-hand fi gure.
Take them out from the accessory box.
1
Thread take-up lever oil guard
2
Hinge screw
3
Wave washer
4
Hexagon nut
5
Tube hose
7
Thread take-up lever oil guard base
8
Screws for the thread take-up lever oil guard
First, insert tube hose
5
into protrusion
A
of thread take-
up lever oil guard
1
until it goes no further.
Be careful not to forcibly insert the tube hose since it may
break.
Then, install the aforementioned thread take-up lever oil
guard
1
on puller drive cover
6
on the machine head
side as illustrated in the fi gure at left.
Firstly, fi x thread take-up lever oil guard base
7
with hinge
screw
2
and wave washer
3
. Secondly, fi x thread take-
up lever oil guard
1
on thread take-up lever oil guard base
7
with screws
8
.
At this time, check to be sure that thread take-up lever oil
guard
1
can be smoothly opened/closed.
Finally, fi x hexagon nut
4
to prevent the hinge screw from
loosening.
Tightening torque is 0.5 to 1.0 N•m as the standard.
2
3
5
1
4
5
1
A
6
1
2
3
4
7
8
8
7
