13

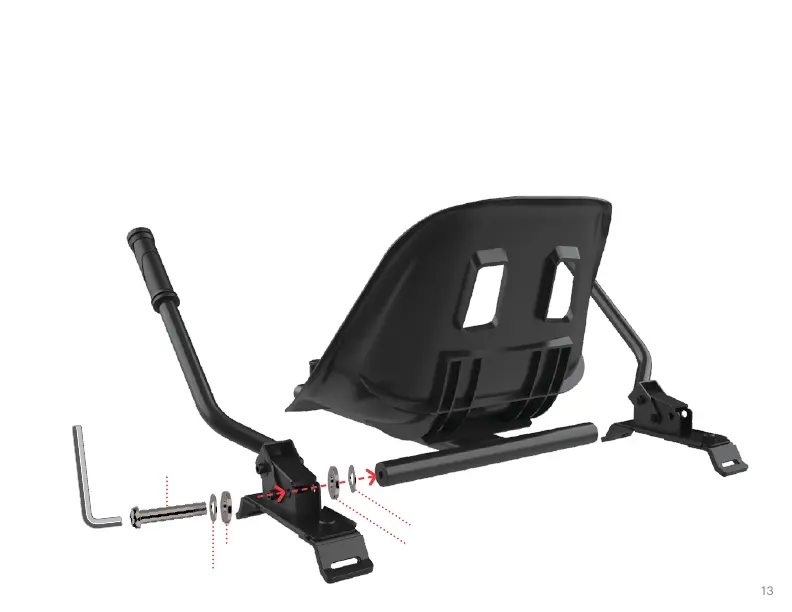

1.3 Attaching the Brackets
• POSITION THE TWO BRACKETS ON THE SIDE OF THE SEAT SO THAT THE HANDLES ARE POINTING TOWARDS THE FRONT
AND BEND OUTWARDS AWAY FROM THE SEAT.
• PLACE ONE OF EACH LARGE WASHER (G1 THEN G2) ON THE END OF A LARGE BOLT (F) AND SLIDE THE BOLT/WASHER
COMBO THROUGH THE OUTER HOLE OF THE BRACKET. PLACE ANOTHER ONE OF EACH WASHER (G2 THEN G1) ON THE
END OF THE BOLT.
• INSERT THE END OF THE BOLT INTO THE TUBE IN THE FRAME UNDER THE SEAT.
• TIGHTEN THE BOLT USING THE LARGE ALLEN KEY.
NOTE: BE CAREFUL NOT TO OVER-TIGHTEN THE BOLTS.
OVER-TIGHTENING MAY CAUSE THE BRACKETS TO CRACK.
BOLT (F)
WASHER
(G2)
WASHER
(G1)
WASHER
(G2)
WASHER
(G1)
