10

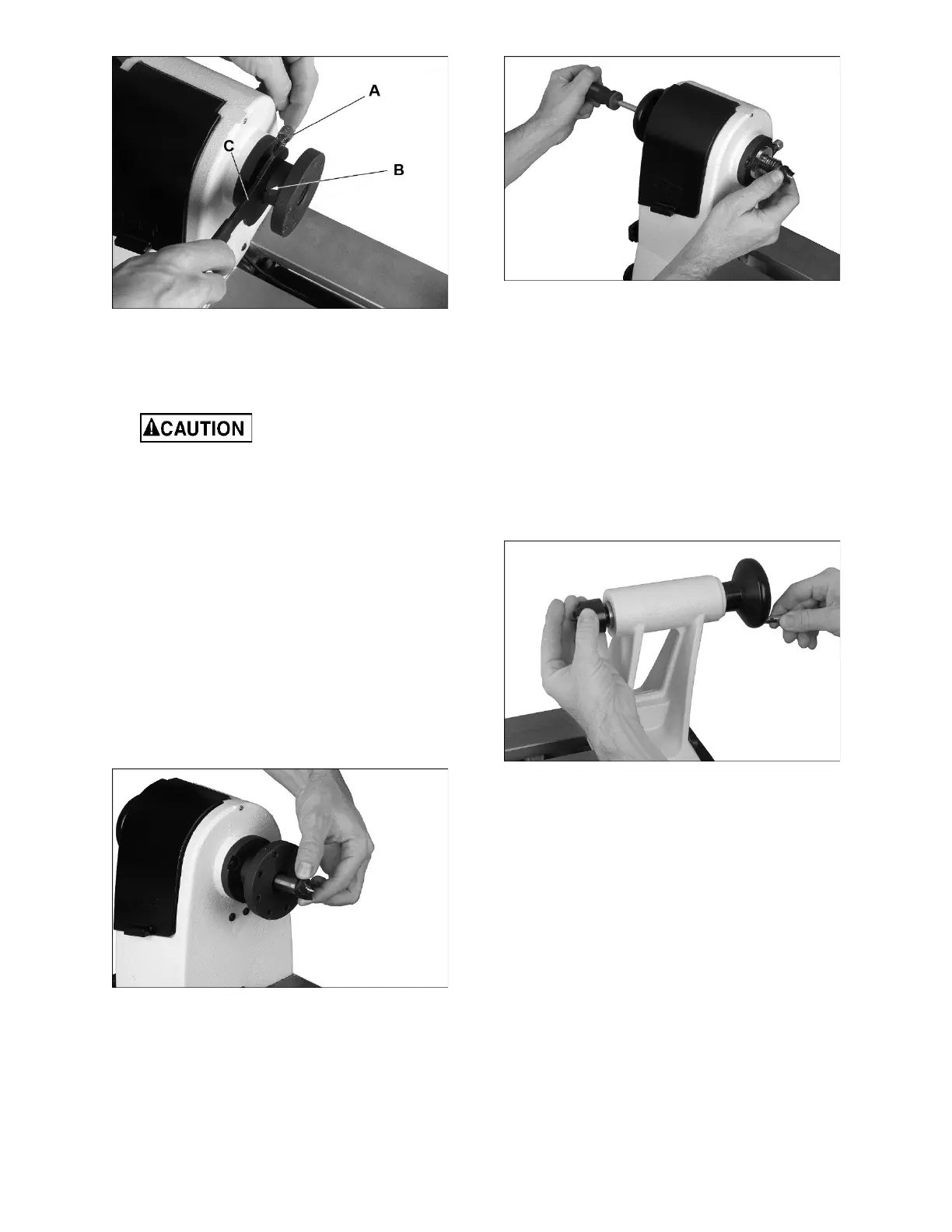

Figure 5
To remove faceplate:
6. Back out both set screws (B, Figure 5) in the
faceplate.
Do not try to remove
faceplate unless set screws are backed out,
or stripping of faceplate threads may occur.
7. Engage spindle lock (A).
8. Place wrench (C) over flats, and turn to
unscrew faceplate.
7.5 Installing/removing spur center
Referring to Figure 6:
1. Make sure mating surfaces of spur center and
spindle are clean.
2. Drive spur center into workpiece. (See section
11.3.1)
3. Push spur center into spindle. NOTE: You do
not need to remove faceplate to install spur
center.
Figure 6
To remove spur center (Figure 7):
Hold spur center to prevent it from falling. (You
may wish to use a rag to protect your hand from
the sharp edges). Use knockout rod through
spindle hole to tap out spur center.
Figure 7
7.6 Installing/removing live center
Referring to Figure 8:
1. Rotate tailstock handwheel clockwise a few
times to advance quill.
2. Push live center into quill.
To remove live center:
3. Hold on to live center to prevent it from falling.
4. Rotate handwheel counterclockwise to retract
quill, until center releases from quill.
Figure 8
