8
Knobs and Handles
01 Lock Knob (p/n JJP8BT-90L) – R
01 Elevating Handle (p/n JJP8BT-19A) – S
01 Locking Handle (p/n JJP8BT-25A) – U
01 Flat Washer – T
01 Lock Knob (p/n JJP8BT-90S) – V
Hardware Package (p/n JJP10BT-HP)
Note: The index number in parentheses refers to
the same item as shown in the parts breakdowns.
4 Hex Cap Screw, M6x20 (#13, Stand Assbly) – X
24 Carriage Bolt, M6x12 (#9, Stand Assbly) – Y
02 Socket Head Cap Screw, M6x25 (#73) – Z
03 Socket Head Cap Screw, M6x10 (#15) – AA
04 Socket Head Cap Screw, M8x20 (#16, Stand
Assbly) – BB
28 Flat Washer, M6 (#8, Stand Assbly) – CC
24 Lock Washer, M6 (#7, Stand Assbly) – DD
28 Hex Nut, M6 (#6, Stand Assbly) – EE
02 Pan Head Machine Screw, M6x16 (#101) – FF
02 Hex Nut, M6 (#63) – GG
03 Flat Washer, M6 (#68) – HH
04 Flat Washer, M8 (#14, Stand Assbly) – JJ
04 Lock Washer, M8 (#15, Stand Assbly) – KK
04 Rubber Foot (#12, Stand Assbly) – LL
02 Lock Washer, M6 (#69) – MM

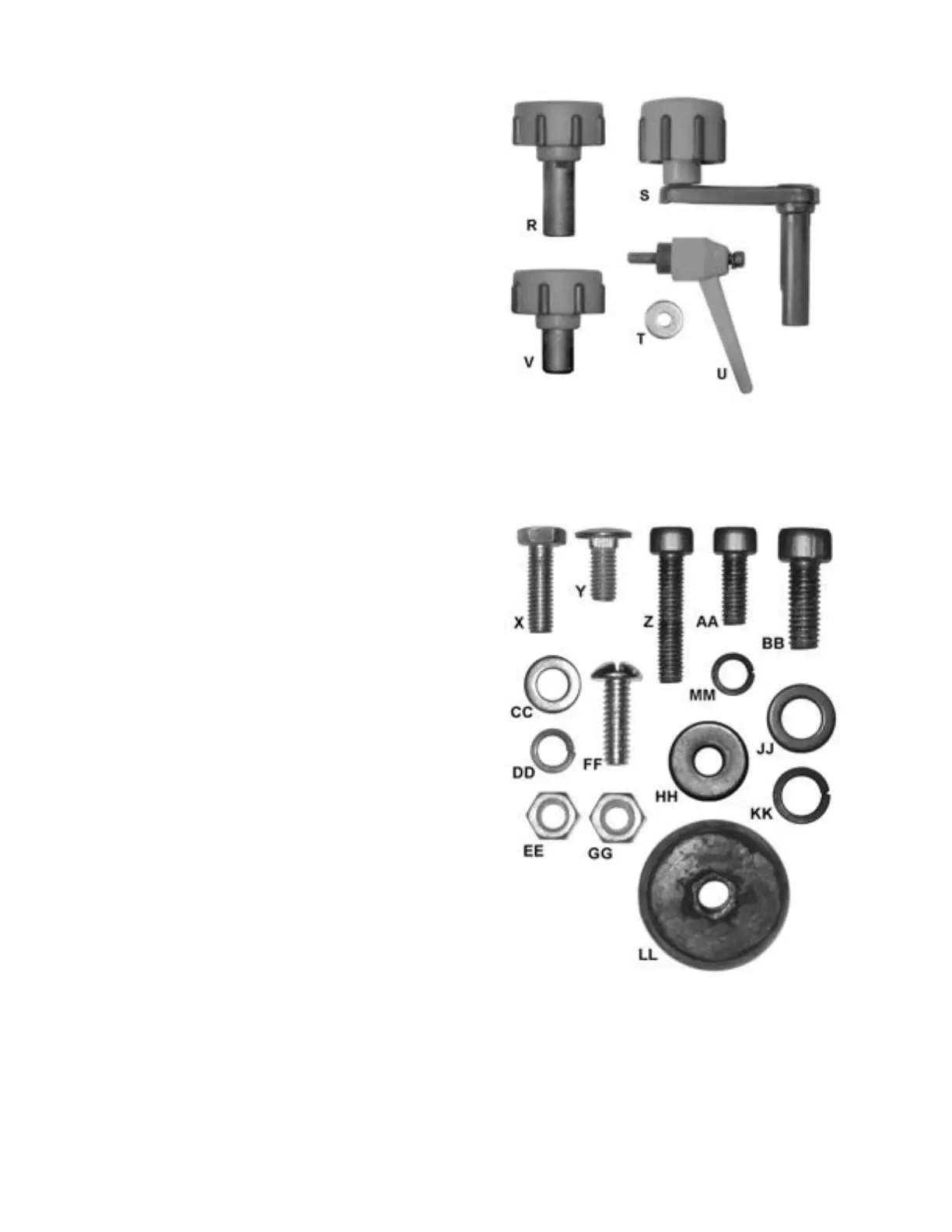

Figure 3 – Knobs and Handles
Figure 4 – Hardware Package #JJP10BT-HP
(shown actual size)
