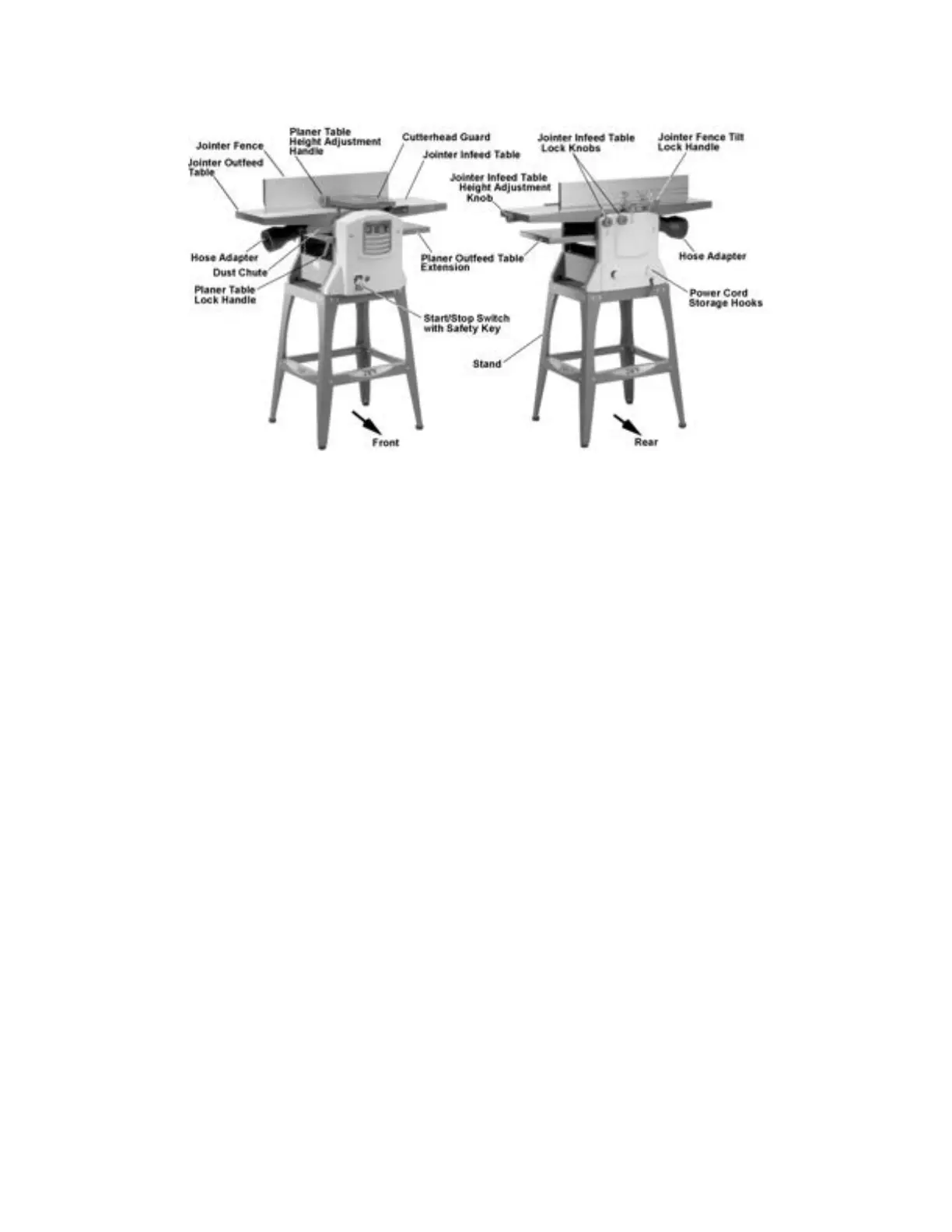

3.0 Features

Features

4.0 Specifications

Model number .................................................................................................................................... JJP-10BTOS

Stock number .............................................................................................................................................. 707410

Cutterhead speed ................................................................................................................................... 9000 RPM

Cuts per minute ............................................................................................................................................ 18,000

Number of knives .................................................................................................................................................. 2

Cutter knife size (LxWxThk) ................................................................................................. 10-1/4" x 0.65” x 0.06”

Dust port diameter ................................................................................................................................. 2-1/2" or 4”

Jointer

Jointer table ....................................................................................................................................... 36"x10-1/4”

Max stock removal ......................................................................................................................................... 1/8”

Max cutting width ............................................................................................................................................ 10"

Fence ................................................................................................................................................. 4-7/8" x 25”

Fence tilt ............................................................................................................................................. 90°- 45° R

Fence positive stop ............................................................................................................................... 90°, 45°R

Planer table ............................................................................................................................... 10-3/4" x 10-1/2"

Planer

Planer table ............................................................................................................................... 10-3/4” x 10-1/2”

Maximum cutting thickness ......................................................................................................................... 4-1/2"

Max depth of cut .......................................................................................................................................... 5/64”

Min length of work piece ................................................................................................................................... 6"

Feed rate ............................................................................................................................................... 19.5 fpm

Motor

Voltage ...................................................................................................................................... 120V, 60Hz, 13A

Switch ...................................................................................................... Toggle switch with overload protection

Overall Dimensions (LxWxH) .............................................................................................. 37-1/2" x 18-1/2" x 44"

Net weight ..................................................................................................................................................... 74 lbs

Shipping weight ............................................................................................................................................. 84 lbs

5.0 Optional accessories

Stock No. Description

707411 10" Jointer/Planer Blades

709209 Adjustable 12.5” Roller Support Stand
