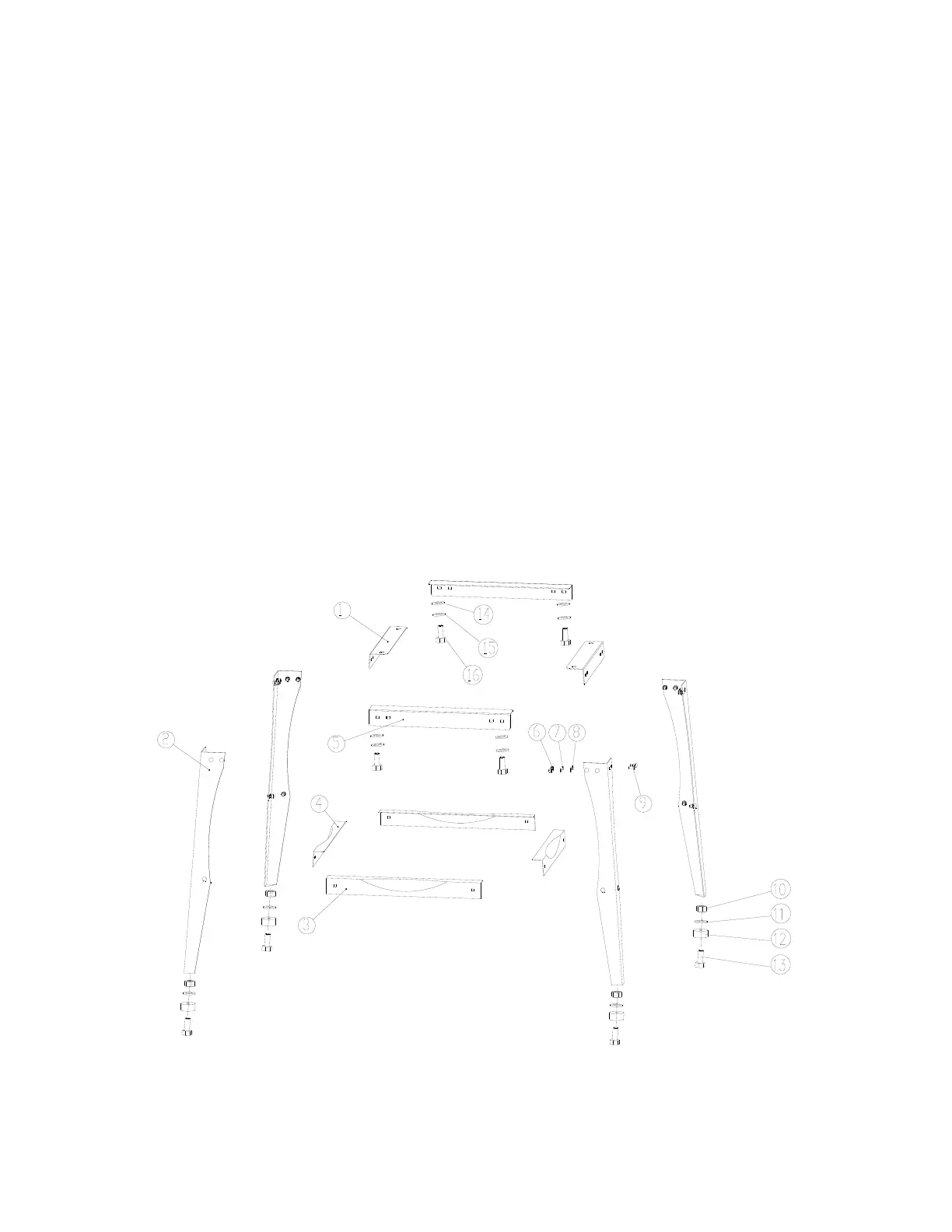

17.15 Jointer/Planer Stand

Index No. Part No. Description Size Qty

1 ................ JJP10BT-901 ........... Stand Top Support, Short .................................... .................................... 2

2 ................ JJP10BT-902 ........... Leg ....................................................................... .................................... 4

3 ................ JJP10BT-903 ........... Support Plate, Long ............................................. .................................... 2

4 ................ JJP10BT-904 ........... Support Plate, Short ............................................ .................................... 2

5 ................ JJP10BT-905 ........... Stand Top Support, Long ..................................... .................................... 2

6 ................ TS-1540041 ............. Hex Nut * ............................................................. M6 ............................. 24

7 ................ TS-2361061 ............. Lock Washer * ..................................................... M6 ............................. 24

8 ................ TS-1550041 ............. Flat Washer * ....................................................... M6 ............................. 24

9 ................ 708315-63 ............... Carriage Bolt * ..................................................... M6x12 ....................... 24

10 .............. TS-1540041 ............. Hex Nut ................................................................ M6 ............................... 4

11 .............. TS-1550041 ............. Flat Washer ......................................................... M6 ............................... 4

12 .............. JJP10BT-912 ........... Rubber Foot * ...................................................... .................................... 4

13 .............. TS-1482041 ............. Hex Cap Screw * ................................................. M6x20 ......................... 4

14 .............. TS-1550061 ............. Flat Washer * ....................................................... M8 ............................... 4

15 .............. TS-2361081 ............. Lock Washer * ..................................................... M8 ............................... 4

16 .............. TS-1504041 ............. Socket Head Cap Screw * ................................... M8x20 ......................... 4

* Items with asterisk are included in JJP10BT-HP (Hardware Package).
