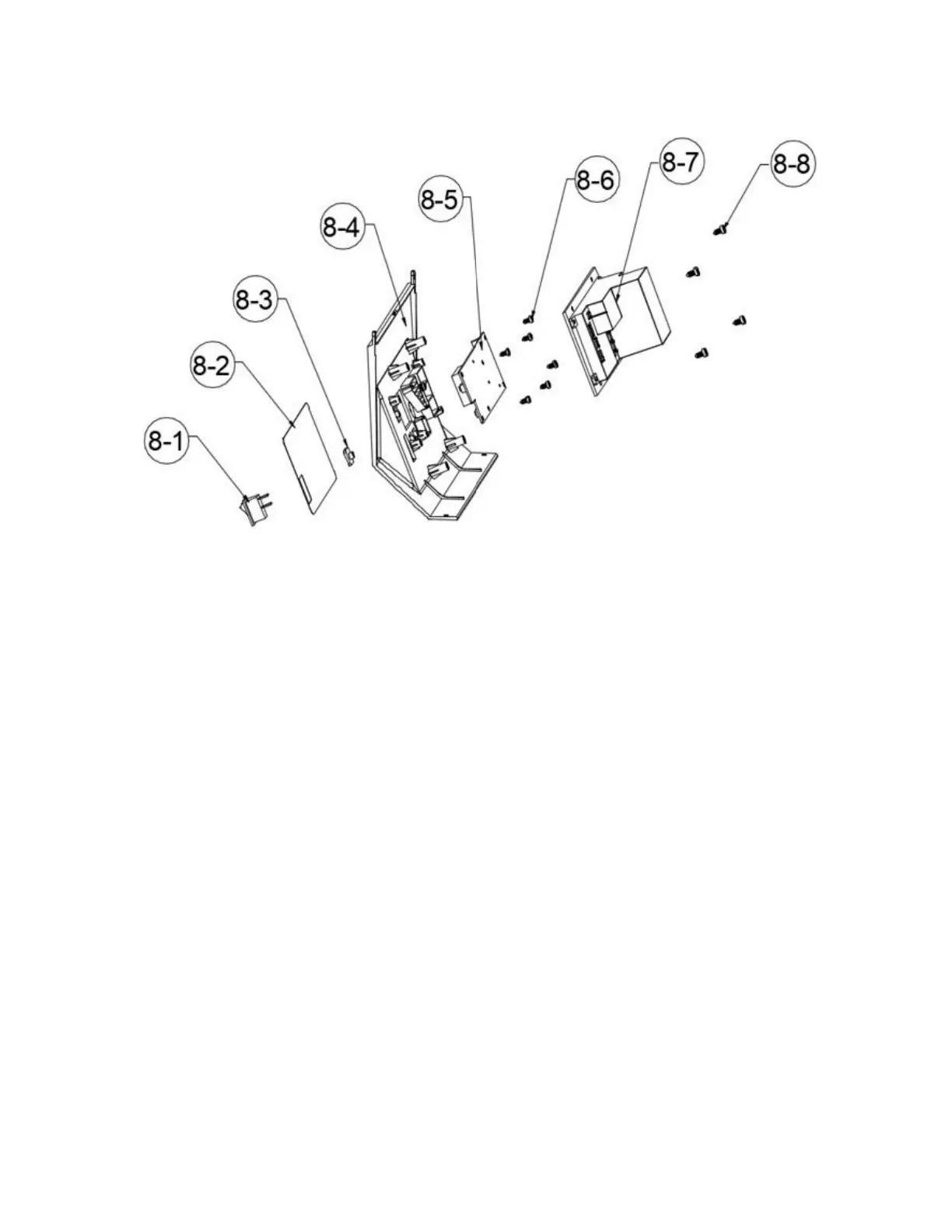

12.2.1 Display Module Assembly – Exploded View

12.2.2 Display Module Assembly – Parts List

Index No Part No Description Size Qty

8 ................ AFS1000C-DMA ....... Display Module Assembly........................................ ..................................... 1

8-1 ............. AFS1000C-DM1 ........ AC power switch ...................................................... ..................................... 1

8-2 ............. AFS1000C-DM2 ........ Display label ............................................................ ..................................... 1

8-3 ............. AFS1000C-DM3 ........ Auto button .............................................................. ..................................... 1

8-4 ............. AFS1000C-DM4 ........ Display cover ........................................................... ..................................... 1

8-5 ............. AFS1000C-DM5 ........ Display PCB............................................................. ..................................... 1

8-6 ............. AFS1000C-DM6 ........ Screw, Pan Head, Phillips (Tapping screw) ............ M3X6 ............................ 6

8-7 ............. AFS1000C-DM7 ........ Control module ........................................................ ..................................... 1

8-8 ............. AFS1000C-DM8 ........ Screw, Pan Head, Phillips (Tapping screw) ............ M4X10 .......................... 4
