Je bekijkt pagina 7 van 28

6

CAR710-4

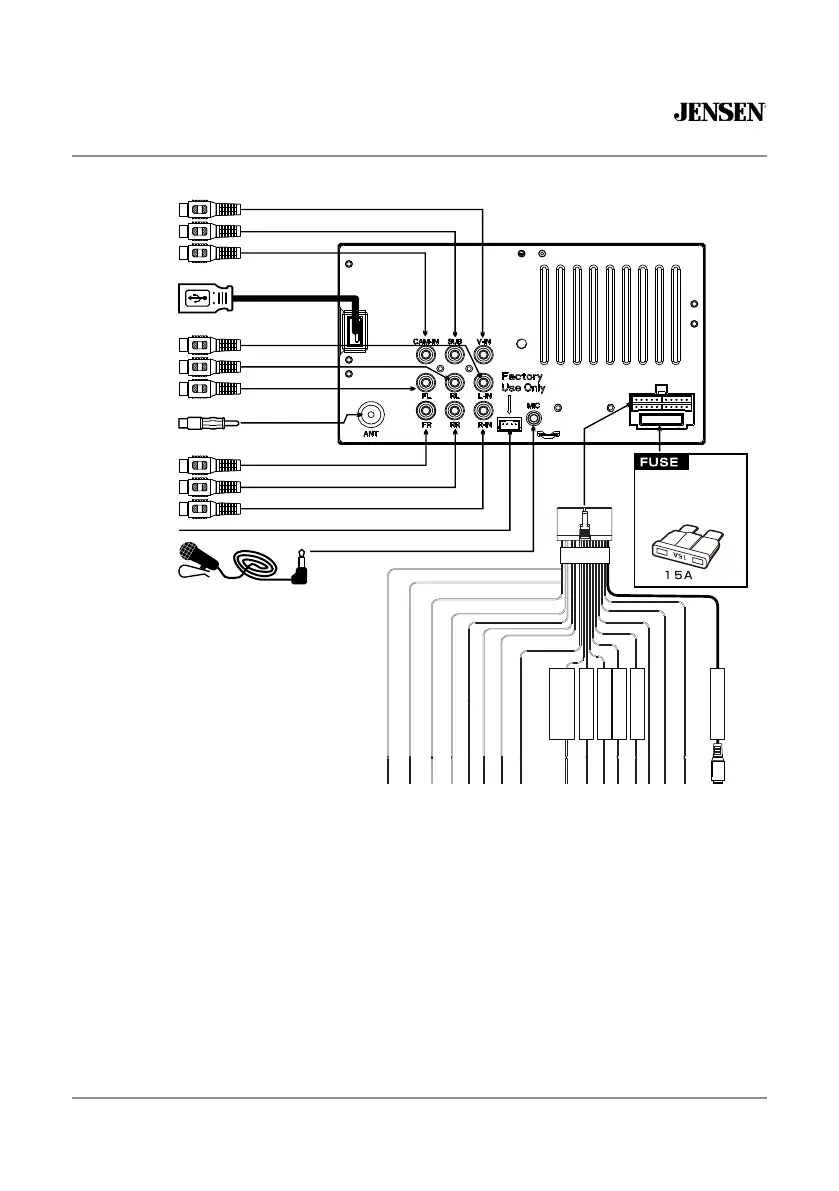

Wiring Diagram - Inputs/Outputs

Note:

When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause

damage. The unit uses (1) 15 amp ATC mini style fuse located on the power connector.

Wiring Notes:

Subwoofer output

The Subwoofer preamp audio output (Blue jacket with Black RCA) is active in all audio modes.

Rear camera input

A rear view camera (not included) can be used with the Camera input.

White/Black

Gray/Black

Green

Green/Black

Violet

Violet/Black

Red

Black

Yellow

Orange

Violet/White

Blue

Pink

Blue/White

White

Gray

Left front(-)

Right front (-)

Left rear(+)

Left rear(-)

Right rear(+)

Right rear(-)

Chassis ground(-)

Battery 12(+)

Llumination(+)

Reverse(+)

Power antenna (+)

Parking brake(-)

Remote turn-on(+)

Left front(+)

Right front(+)

SWC inputGray(Red cap)

Ignition / 12v(+)

IGNITION /

ACC 12V(+)

GROUND(-)

BATTERY(+)

ILLUMINATION

REVERSE(+)

20PIN

SWCIN

To external mic

Yellow

Green

Red

Video in

Sub preamp out

Camera in

AV In L

AV In R

Yellow

White

White

White

Red

Red

Factory use only

Apple CarPlay

Android Auto

Rear left

Preamp output

Front left

Preamp output

Radio antenna

Rear right

Preamp output

Front right

Preamp output

Replace with the

same 15A ATC style

fuse
