JennAir JKCHR302ML handleiding
Handleiding
Je bekijkt pagina 18 van 48
18
B
D
E
A
C
F
G
H

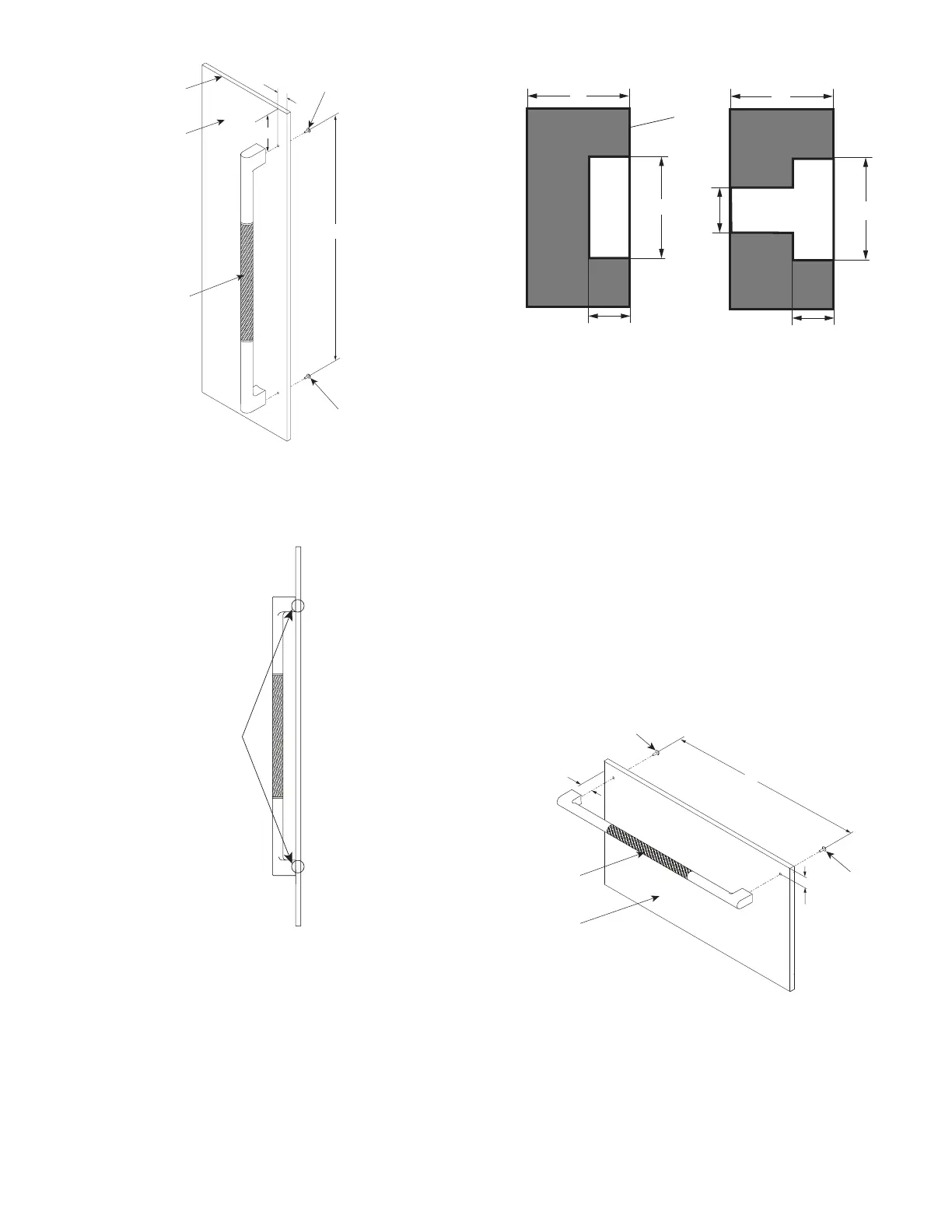

Figure 5 - Refrigerator/freezer door
A. RISE™ handle
B. Door panel
C. Top surface of door panel
D. 1/4-20 X 1.5" Screw (1)
E. 1/4-20 X 1.5" Screw (1)
F. 1
13
/
16
" (46 mm)
G. 5
11
/
16
" (144 mm)
H. 37
7
/
8
" (963 mm)
A
Figure 6 - Cross sectional view
A. 2X refer detail 'X'
Detail ‘X’
B
C
D
A
D
A
C
B
Step ‘2’ Step ‘3’
A. Backside of panel
B. 3/4" (19.05 mm)
C. 3/4" (19.05 mm)
D. 1/4" (7 mm)
A. 3/4" (19.05 mm)
B. 5/16" (8.3 mm)
C. 3/4" (19.05 mm)
D. 1/4" (7 mm)
Install the Freezer Drawer Handle
IMPORTANT:
� Verify panel dimensions before drilling any holes.
� Verify before drilling that the hole pattern is at center.
1. Clearance is required for the handle fasteners on the
backside of the panel. Flip the panel over to reveal the
backside of the panel. Using a 3/4" forstner bit, drill a 1/4"
(7 mm) deep counterbore at the left and right hole
locations as shown in Figure 8 - Detail X.
2. Drill a 5/16" (8.3 mm) hole at the left and right locations as
shown in Figure 8 - Detail X.
3. Place the handle on the front of the panel. Using Torx T30
screwdriver, secure the handle to panel by tightening the
two 1/4" screws on the handle ends. Recommended screw
torque is 28 lb/in.
NOTE: Do not overtighten. Do not use impact driver.
B
A
C
D
F
E
G
Figure 7 - Freezer drawer
A. RISE™ handle
B. Drawer panel
C. 1/4-20 X 1.5" Screw (1)
D. 1/4-20 X 1.5" Screw (1)
E. 1
11
/
16
" (43 mm)
F. 26
5
/
8
" (676 mm)
G. 2" (51 mm)
