23

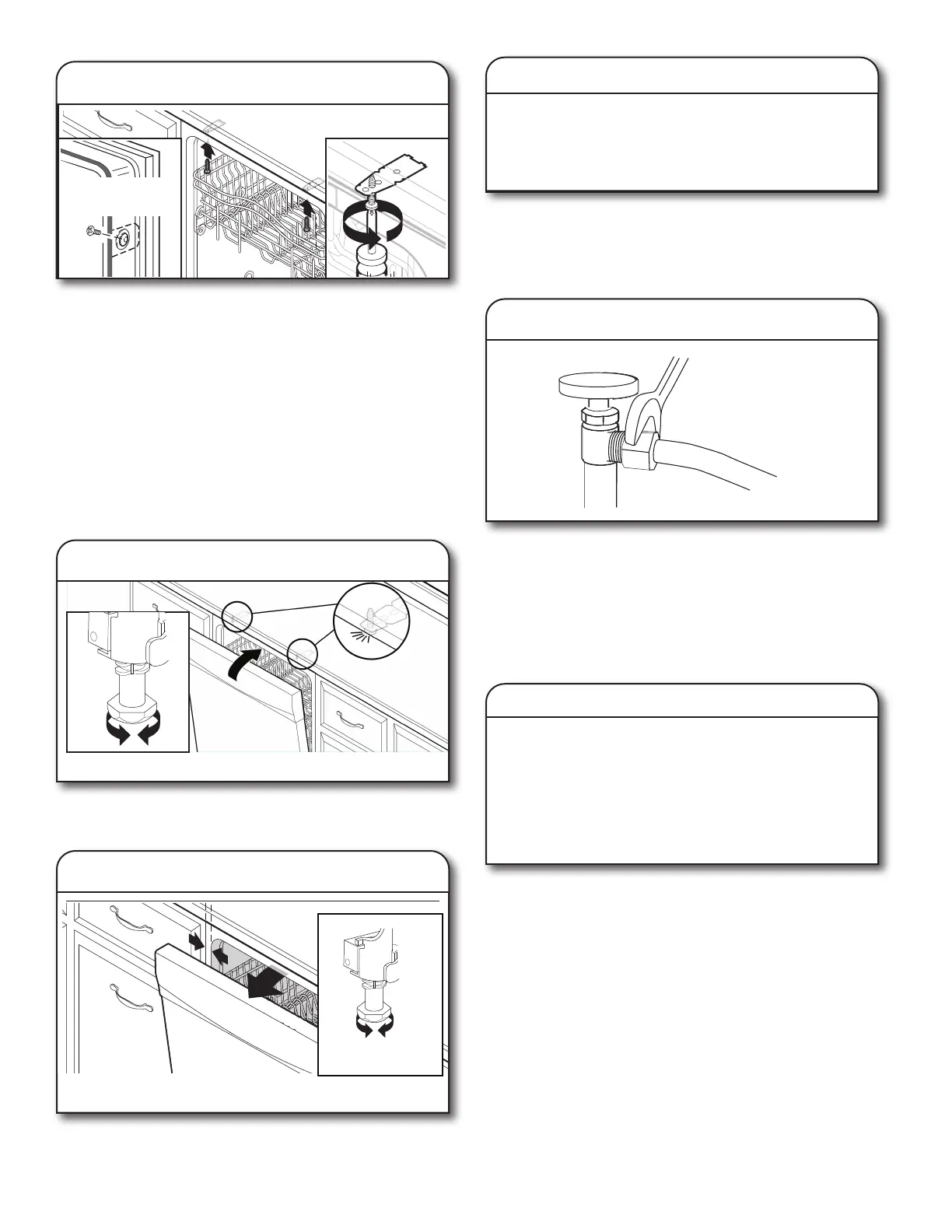

Open dishwasher door to prepare for securing the dishwasher
to the countertop or side cabinet.
NOTES:
■ The dishwasher must be secured to keep it from shifting when
the door is opened or closed.
■ Do not drop screws into bottom of dishwasher.
■ Locate brackets installed in the “Choose Anchor Attachment
Method” section, either on top or on the sides of the dishwasher.
■ If countertop anchoring: Secure dishwasher to the countertop
with two Phillips-head screws (included).
■ If side anchoring: Drill 7/32" (5.6 mm) pilot holes in cabinet to
avoid splitting the wood. Secure dishwasher to cabinet with
two Philips-head screws (included). Remove second rack for
easier access. See the Dishwasher Loading Tips section for
instructions on how to remove the second rack if needed.
40. Check door clearance
IMPORTANT: Check that top of door does not contact screws,
brackets, or countertop. If it does, adjust leveling legs or use the
side attachment option.
41. Check inner spacing
Open door and check that space between dishwasher cabinet
opening and tub is equal on both sides. If spacing is not equal,
loosen bracket screws and shift tub. Tighten bracket screws.
42. Direct Wire Connection
To complete direct wire connection. Complete Steps 18 to
24 in this installation guide.
Once complete, return here to Step 43 to complete Product
Installation.
CONNECT WATER LINE TO HOUSE
SHUT-OFF VALVE
NOTE: If using a exible braided hose, replace inlet hose after
5 years to reduce the risk of hose failure. Record hose installation
or replacement dates on the hose for future reference.
43. Attach water supply line
Attach the water supply line (copper tubing or exible braided
line) to the hot water line using a connection conguration that is
in compliance with local codes and ordinances. The water supply
to the dishwasher should have a manual shut-off valve located
under the sink. Turn water valve on after attaching water supply
line.
CONNECT DRAIN HOSE
44. Connect drain hose
Connect drain hose to waste tee or waste disposer using
one of the following options:
■ Option A: Waste disposer – no air gap
■ Option B: No waste disposer – no air gap
■ Option C: Waste disposer – with air gap
■ Option D: No waste disposer – with air gap
IMPORTANT: The drain hose connection of the disposer or a
waste tee must be made before the drain trap and at least
20" (50.8 cm) above the oor where the dishwasher will be
installed.
Helpful Tip: To reduce vibration of the hose, keep the hose away
from the oor.
NOTE: Use the red clamp provided to connect the drain hose to
the customer connection - plumbing or garbage disposal.
Screw to side
cabinet
39. Secure dishwasher
