21
NOTE: Pull slack out of utilities at the same time the dishwasher
is pushed into the cabinet opening to avoid any kinks.
CUSTOM PANEL INSTALLATION
(CUSTOM PANEL MODELS ONLY)
For custom panel installation, refer to the Custom Panel
Installation Instruction Sheet included in the literature package.
Complete custom panel installation before proceeding to the
“Choose Anchor Attachment Method” section.
CHOOSE ANCHOR ATTACHMENT METHOD
IMPORTANT: The dishwasher must be secured to the cabinet
as one of the nal steps. Prepare the dishwasher for this by
attaching the 2 brackets found in the parts bag to the dishwasher.
– For countertops that are wood, laminate or another similar
surface: use Countertop Attachment and go to Step 31.
– For countertops that are marble, granite, or another hard
surface: use Side Attachment and go to Step 32.
NOTE: If the gap between the top of the door and the underside
of the counter top is tight (less than 1/4" [6.35 mm]), we suggest
using Side Attachment to keep from scratching the User Interface
or console with the anchor screws.
Countertop Attachment:
Remove the brackets from the package, and insert into the open
slots on the left- and right-hand top of the dishwasher collar as
shown.
Counter top attachment
Using pliers, bend/twist tab to lock the brackets in place.
Side Attachment:
Break off the end of the bracket along the scored line using
pliers. Use sandpaper to smooth any burrs.
33. Install bracket for Side Attachment
Bend
tabs
Push bracket into slot on the side of dishwasher, and bend tab in
toward the side of the dishwasher so that it keeps the bracket in
place. Repeat this step for the other side of the dishwasher.
NOTE: Install wood shims to the inside of the cabinets if the gap
between the sides of the cabinet and the sides of the dishwasher
are greater than 1/2" (1.3 cm) on each side.
NOTE: Do not attach the dishwasher. This will be done later.

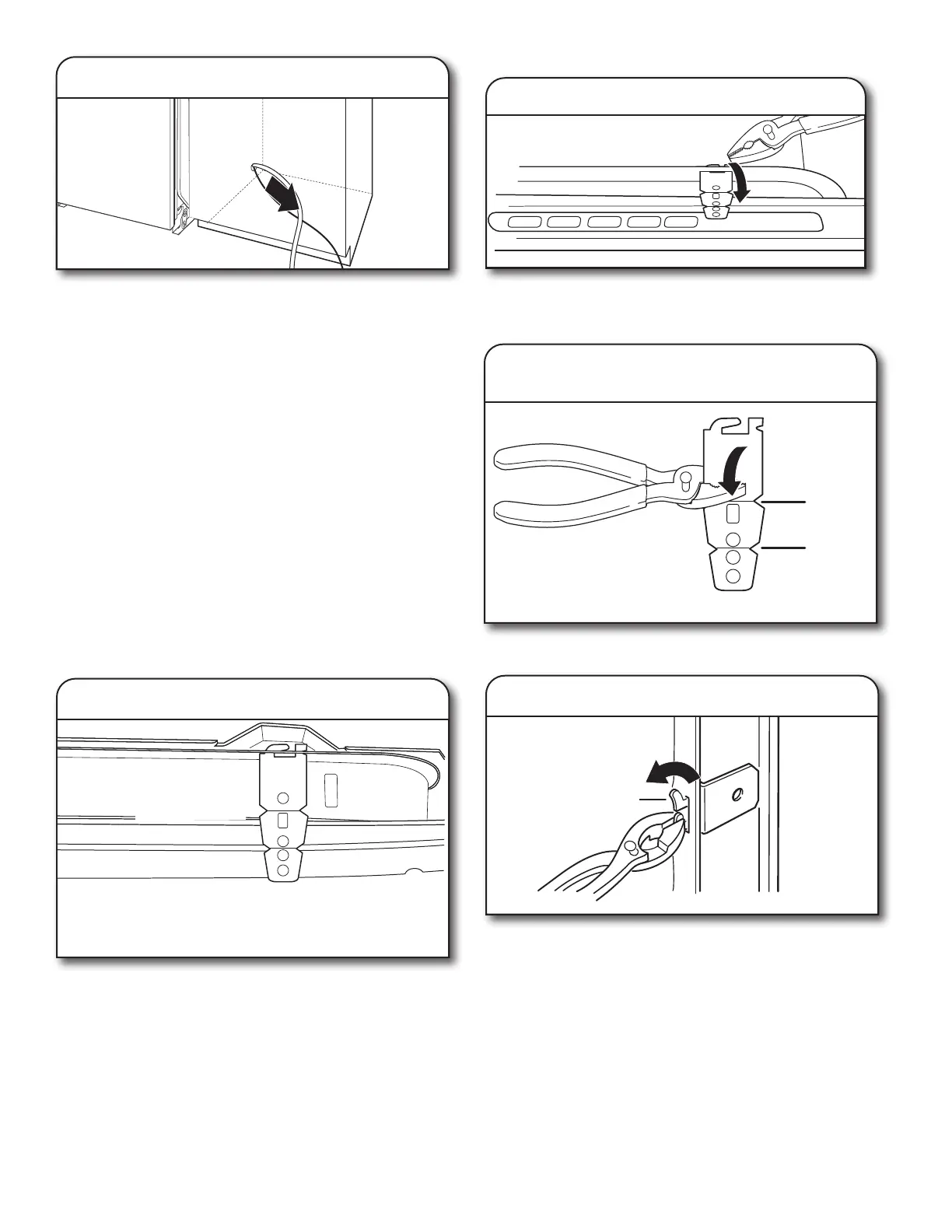

30. Pull slack from utilities
31. Insert bracket
Tabs must point
to the right.
31a.
32. Break end of bracket for side
attachment
Top score
line for
stainless
steel tubs
Bottom
score line
for plastic
tubs
