9
EN

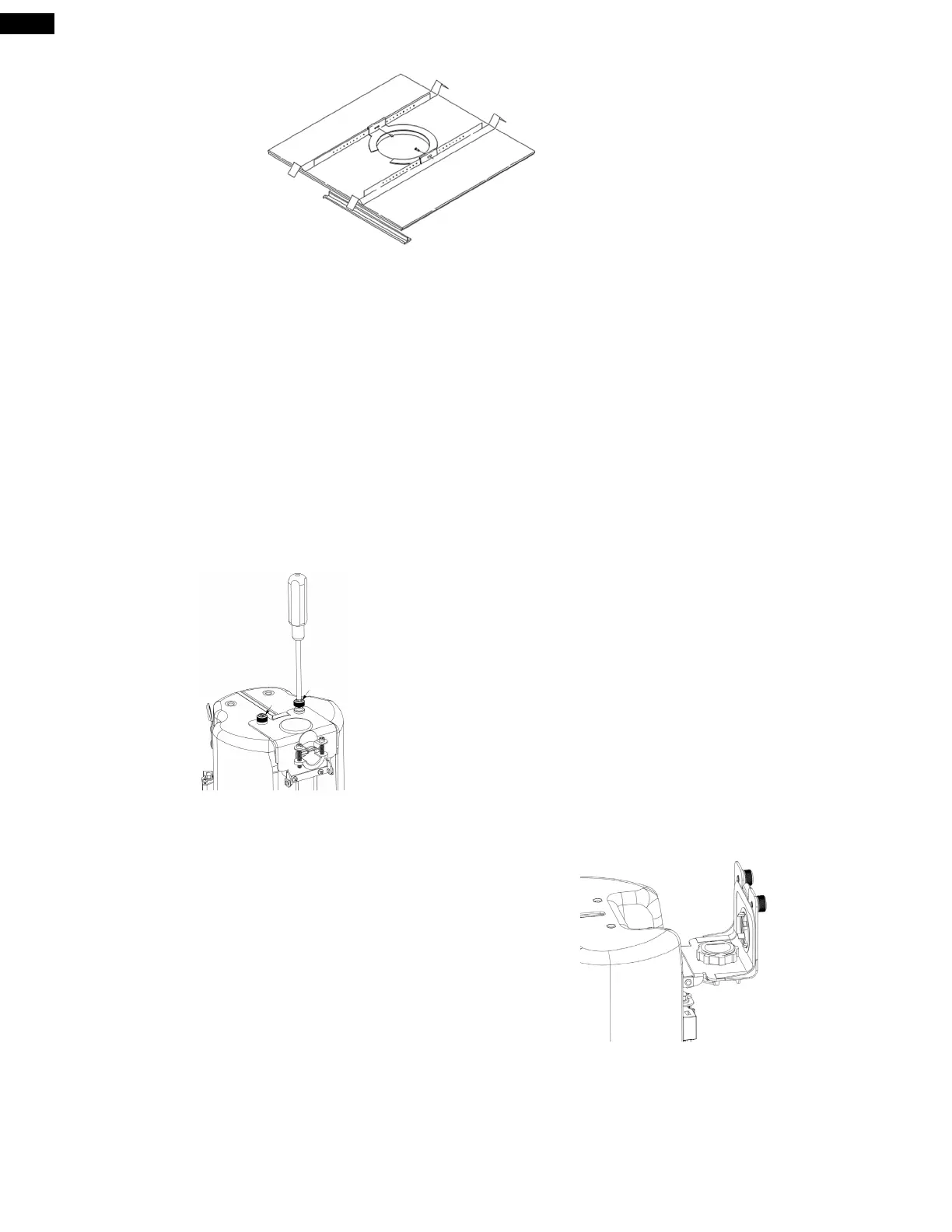

Figure 4:
C-Bracket and Tile Rail Positioning
on Ceiling Tile
Tile Rails: The tile rails are designed to t either standard 24-inch-wide tiles or 600-mm-wide tiles. The tile rail pieces do NOT
physically attach to the T-grid struts. Instead, the inverted-V shape at the ends of the rails sits ABOVE the T-grid strut. During
normal operation, the rails are supported by the edge of the tile. In the unlikely event that the tile comes out or falls apart, the ends
of the support rails are designed to catch onto the T-grid, providing secure support to hold the loudspeaker assembly in place.
Vibration Reduction: These loudspeakers can generate substantial audio output, which can cause buzzing of the ceiling
materials or structure. Depending on the character of the ceiling tile and structure, the installer might need to place neoprene or
other dampening material under the tile rails or the edges of the tiles to eliminate rattles.
Cutout Placement: The tile rails are pre-punched with attachment holes along their length. Placement is not limited to the center
of the tile as is the case with many other tile rail support systems.
Non-Suspended Ceiling Types – For non-suspended ceiling types, the C-ring can be optionally used by itself to shore up the
ceiling material and to spread out the clamping force from the tab clamps. Insert the C-ring through the cut hole in the ceiling and
place it on the top side of the hole before inserting the speaker.
Step 3 – Plugging connectors into connector sockets in the speaker’s terminal cup.
Fully loosen the 2 captive TERMINAL COVER retaining screws that are on the top panel of the backcan. These screws remain
captive in the terminal cover (do not fully remove them).
Figure 5:
Fully loosen the two captive TERMINAL COVER screws. Screws
remain captive in terminal cover (do not remove them).
Rotate the TERMINAL COVER Open – The TERMINAL COVER hinge is on the side panel of the backcan. Rotate the terminal
cover open.
Figure 6:
Opening TERMINAL COVER
STRAIN RELIEF Location – To keep the speaker as shallow as possible, the default STRAIN RELIEF location – ie, the wire exit –
comes installed on the side of the backcan.
