Slide the already-wired 2-pin connector(s) through the STRAIN RELIEF.
Connect speaker wire to 2-pin connectors(s)
• Wiring Connector(s) – Connect speaker wire to connectors, observing proper +/- polarity and making sure there are no frayed
strands of wire or excessive exposed conductors exposed that could short together.

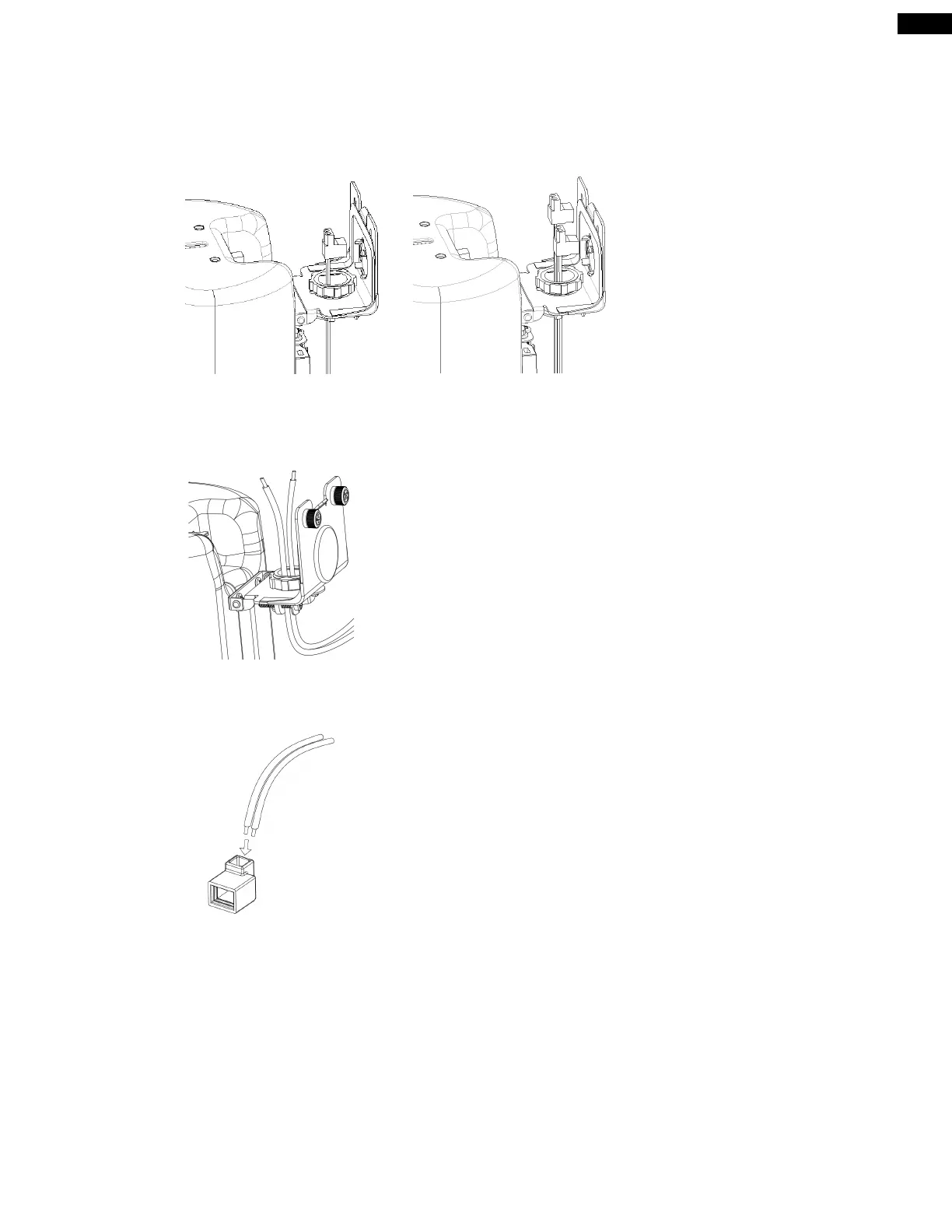

Figure 14:
Slide connectors
through strain relief
If IP33 rating is desired, then use the Rubber Boot and follow these instructions:
[Optional steps for Connect the Wiring to the Removable Locking Connector(s)]
Slide wire through strain relief from external to internal
Figure 15:
Slide wire through strain relief from external to internal
[Optional steps for Connect the Wiring to the Removable Locking Connector(s)]
Slide wire through the rubber boot from the small square opening and out from the other opening
Figure 16:
Slide the wire through the rubber boot
[Optional steps for Connect the Wiring to the Removable Locking Connector(s)]
Connect wire cord to the connector
